Silent Base 802, No PSU, E-ATX, White, Mid Tower Case

SKU: 13747717

Manufacturer: be quiet!

MPN: BG040

Availability: Low Stock


Price: $224.13
or as low as $7/month
Quantity:

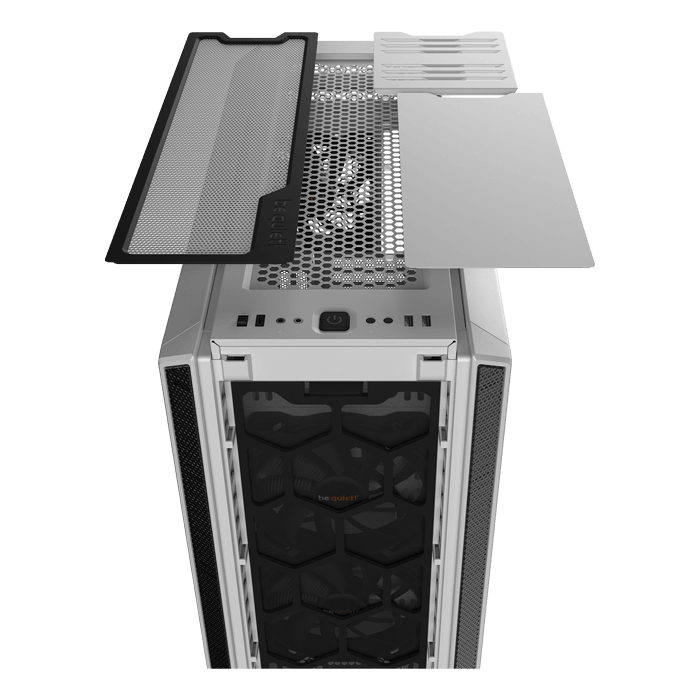

The be quiet! Silent Base 802 White (BG040). NTERCHANGEABLE TOP COVER. Optimized for air or water cooling. The first of two included top covers perfectly rounds off the design of the Silent Base 802 White and ensures a silent operation. For all who strive for extremely powerful cooling and especially with water-cooled systems, the highly air-permeable top cover is the right choice.

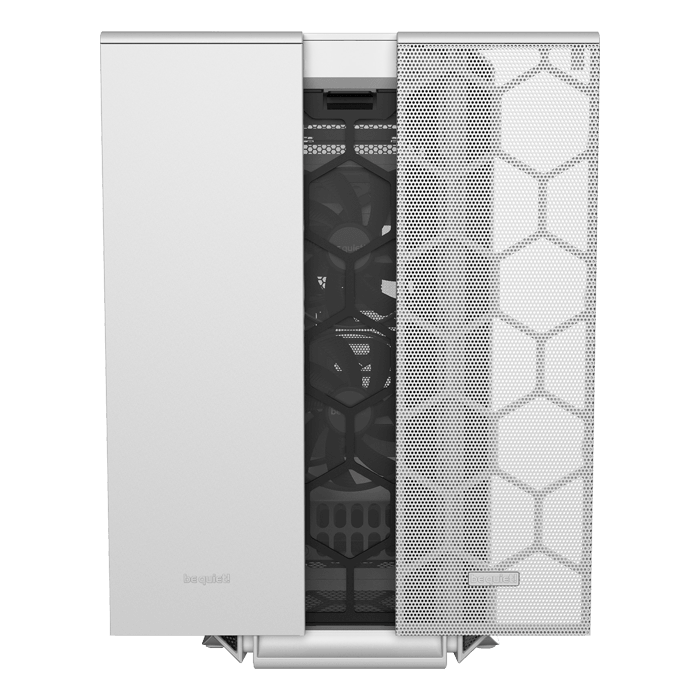

  • Interchangeable top cover and front panel for either maximum airflow or silent operation
  • Three Pure Wings 2 140mm fans
  • Extra thick insulation mats for improved noise reduction
  • State-of-the-art I/O-panel with fan controller and USB 3.2 Gen. 2 Type C
  • Decoupled motherboard tray can be relocated for an inverted layout
  • Detachable top bracket ensures easy installation of radiators and fans
  • Ready for radiators up to 420mm
General data
Model Silent Base 802 White
PSU form factor ATX PS/2
Motherboard compatibility E-ATX (30.5 x 27.5cm) / ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm) 539 x 245 x 507
Installation of motherboards with backplate
Case size incl. stands (L x W x H), (mm) 539 x 281 x 553
Dimensions side panel window (L x W), (mm) 440 x 498
Color option White
Weight (kg) 12.59
USB 2.0 -
USB 3.2 Gen. 1 2
USB 3.2 Gen. 2 Type C 1
HD Audio I/O Mic + Audio
Expansion slots 7 + 2
Fan mounting locations Front / Rear / Top / PSU Shroud
Qi charger / Quick Charging Option -
Material
Top cover ABS
Side panel Steel
Side panel window -
Front panel ABS
Stands ABS
Drive bay capacity
5.25 bays -
3.5 slots (max.) 7
3.5 slots (scope of delivery) 3
2.5 slots (max.) 15
2.5 slots (scope of delivery) 7
Pre-installed fans
Fan @ top -
Fan @ front 2x Pure Wings 2 140mm
Fan @ rear 1x Pure Wings 2 140mm
Dimensions (L x W x H), (mm) 140 x 140 x 25
Fan speed @ 100% PWM / 12V (rpm) 1000
Noise level @ 100% PWM / 12V (dB(A)) 18.8
Airflow @ 100% PWM / 12V (CFM / m3/h) 61.2 / 104
Air Pressure @ 100% PWM / 12V (mm H2O) 0.76
Voltage range (V DC) 5 - 12
Input power (W) 1.44
Input current (A) 0.12
Connector 4-pin to mainboard
Lifespan (h / 25°C) 80,000
Fan controller 4-step fan controller (6x 3-pin) with PWM Hub
Optional fan installation
Front (mm) 1x 140 / 1x 120
Top (mm) 3x 140 / 3x 120
Bottom (mm) -
Side panel (mm) -
PSU shroud 1x 140 / 1x 120
Optional radiator installation
Front (mm) 120 / 140 / 240 / 280 / 360 / 420
Top (mm) 120 / 240 / 360
Bottom (mm) -
Rear (mm) 120 / 140
Cooling
Max.construction height of CPU cooler unit (mm) 185
Airflow channel Front / Top / Rear
Lighting
RGB LED illumination -
LEDs synchronizable with RGB controller/motherboard -
Expandable RGB controller -
PSU compatibility
Maximum dimensions excl. bottom fan (mm) 288
Maximum dimensions incl. bottom fan (mm) 288
Graphics card
HDD cage (in height of graphics card) installed (mm) 287
HDD cage (in height of graphics card) removed (mm) 432
Insulation and damping
Top panel insulation mats
Front panel insulation mats
Side panel insulation mats
Anti-vibration decoupled HDD
Anti-vibration decoupled fan
Anti-vibration decoupled PSU
Anti-vibration decoupled motherboard-tray
Removeable dust filters
Front 1
Bottom 1
Side panel -
Accessories
Screw set (Drives/Motherboard)
Rubber rail (pcs.) -
Standoff (pcs.) 1 (for E-ATX)
LCS bracket (pcs). -
HDD slot cover (pcs.) -
Upper fan bracket (pcs.) -
HDD panel rubber grommet (pcs.) -
SSD bracket for PSU shroud -
LED strips (pcs.) -
Cable ties (pcs.) 6 (Velcro)
Service
Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR
Logistics data, RRP
Article number BG040
EAN code 4260052188392
Certifications CE / RoHS
Dimensions, package (L x W x H), (mm) 651 x 323 x 615
Gross weight, package (kg) 13.34
Pieces per packaging unit 1
