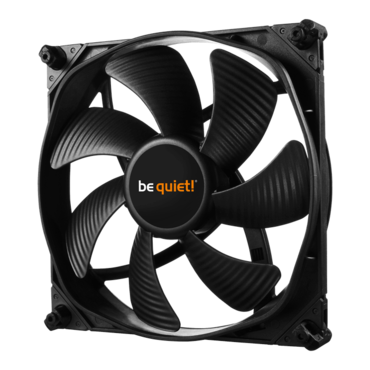

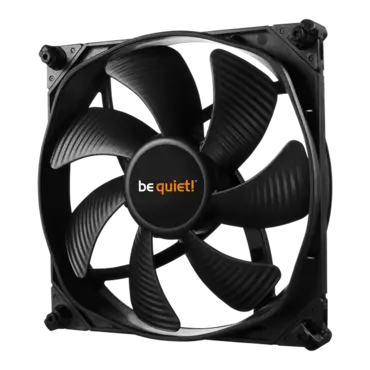

Silent Wings 3 120mm HIGH-SPEED, 2200 RPM, 73.33 CFM, 28.6 dBA, Cooling Fan

SKU: 12635516

Manufacturer: be quiet!

MPN: BL068

Availability: Available


Price: $25.88
or as low as $1/month
Quantity:

be quiet! Silent Wings 3 120mm high-speed stands for state-of-the-art technology and virtually inaudible operation. The extremely high air pressure produced makes it a perfect choice for powerful water- and air-cooled systems.

  • Great performance-to-noise ratio with 28.6dB(A) at 2,200rpm
  • 6-pole fan motor for less power consumption and vibration
  • Fluid-dynamic bearing enables super-long life span of 300,000 hours
  • Fan frame with funnel-shaped air inlets for extremely high air pressure
  • Seven fan blades provide optimized airflow
  • German product conception, design and quality control
  • Three years manufacturer’s warranty
General data
Model Silent Wings 3 | 120mm high-speed
Dimensions (mm) 120
+SilentWings
Fan speed @ 100% PWM / 12V (rpm) 2,200
Air flow @ 100% PWM / 12V (cfm / m3/h) 73.33 / 124.58
Air pressure @ 100% PWM / 12V (mm H2O) 3.37
Noise level @ 100% PWM / 12V (dB(A)) 28.6
Infographics
Mechanical specifications
Dimensions (L x W x H), (mm) 120 x 120 x 25
Bearing technology FDB
Motor technology 6-pole fan motor
Weight incl. fixed cables (kg) 0.137
Push pin fixing
Screw fixing
Cables / Connectors
Connector 3-pin
Cable length (mm) 500
Cable sleeve
Performance / Noise
Air flow @ 100% PWM / 12V (cfm / m3/h) 73.33 / 124.58
Air pressure @ 100% PWM / 12V (mm H2O) 3.37
Noise level @ 100% PWM / 12V (dB(A)) 28.6
Lifespan (h / 25°C) 300000
Electrical specifications
Rated voltage DC (V) 12
Operating voltage DC (V) 5 ~ 13.2
Current consumption (A) 0.16
Safety current (A) 0.37
Input power (W) 1.92
Accessories
3-pin to 4-pin 12V-connector -
12V to 7V adapter
12V to 5V adapter
Screws 5
Push pins 5
Silica gel washer 5
Others rubber & hard plastic mountings
Safety certification
Approvals CE, RoHS, WEEE, RU, Tüv
Service
Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR
