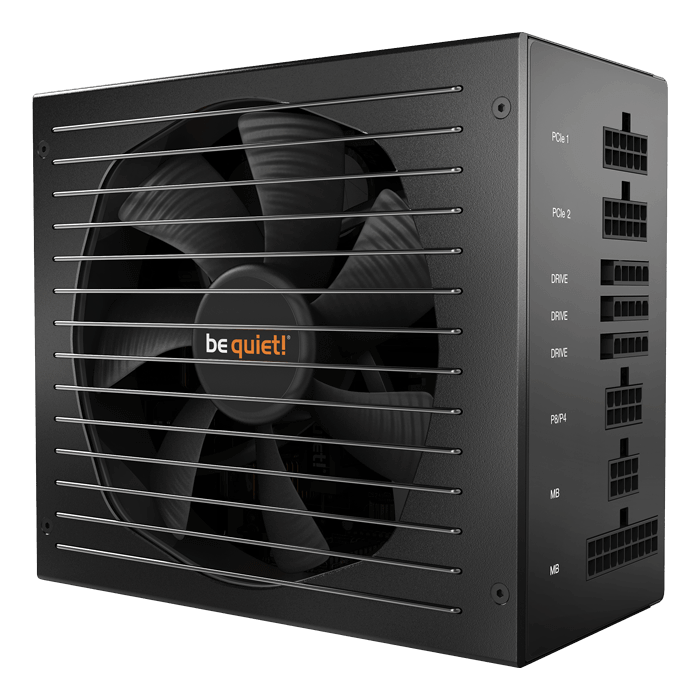

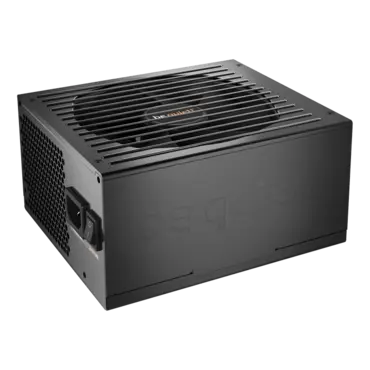

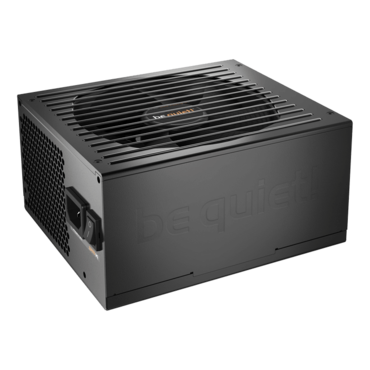

Straight Power 11, 80 PLUS Platinum 1200W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 13352836
- Manufacturer: be quiet!
- MPN: BN645
- Availability: CONTACT US
Starting At
$293.24
Straight Power 11, 80 PLUS Platinum 1200W, Fully Modular, ATX Power Supply
be quiet! Straight Power 11 Platinum 1200W (BN645). 80 PLUS PLATINUM CERTIFIED. One of the highest efficiency certificates available. Straight Power 11 Platinum 1200W is certified with 80 PLUS Platinum efficiency, reaching up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
- 80 PLUS® Platinum efficiency (up to 93.8%)
- Virtually inaudible Silent Wings 3 135mm fan
- Funnel-shaped fan opening of the PSU case for high airflow intake
- Wire-free inside the PSU on the DC side for enhanced cooling and longevity
- Modular cables for maximum build flexibility
- Powerful multi-GPU support with two PCI-Express connectors
- Japanese 105°C-rated capacitors ensure stability and reliability
- ErP and Energy Star 7.0 ready
- 5-year manufacturer’s warranty
| General data | |
| Model | Straight Power 11 Platinum | 1200W |
| Continuous power (W) | 1200 |
| Peak power (W) | 1270 |
| Form factor ATX 12V | Version 2.51 |
| Form factor EPS 12V | Version 2.92 |
| Modular Cable management | ✓ |
| Topology | LLC + SR + DC/DC |
| Wire-free design (DC-side) | ✓ |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 15/7.5 |
| PFC | active |
| Power factor at 100% load | >0.99 |
| Compliant to Intel C6/C7 | ✓ |
| Power consumption in standby (W) | 0.16 |
| Average life time (h / 25°C) | 100,000 |
| Operating temperature up to (°C) | 40 |
| Output | |
| 12V rails (multi-rail operation) | 4 |
| 12V single rail operation | - |
| Overclocking key | - |
| +3.3V (A) | 25 |
| +5V (A) | 25 |
| +12V1 (A) | 24 |
| +12V2 (A) | 24 |
| +12V3 (A) | 38 |
| +12V4 (A) | 38 |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.5 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 1,200 |
| Max. combined power 3.3V + 5V (W) | 150 |
| Hold-up time (ms @ 100%) | 19.6 |
| Power good signal | 100-150ms |
| Fan / Cooling technology | |
| Fan type | be quiet! Silent Wings 3 |
| +SilentWings | ✓ |
| Motor technology | 6-pole fan motor |
| Bearing technology | FDB |
| Fan size (mm) | 135 |
| Max. fan speed (rpm), temperature-dependent | 2,600 |
| Temperature control for case fans | - |
| dB(A) at 20% load | 9.4 |
| dB(A) at 50% load | 11.5 |
| dB(A) at 100% load | 32.9 |
| Protection | |
| OCP (over current protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OTP (over temperature protection) | ✓ |
| OPP (over power protection) | ✓ |
| Safety certification | |
| CE | ✓ |
| CB | ✓ |
| TÜV | ✓ |
| Nemko (N) | - |
| Semko (S) | - |
| Fimko (FI) | - |
| Demko (D) | - |
| FCC | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| RCM (Australia) | ✓ |
| BSMI | ✓ |
| CU (Russia) | ✓ |
| CCC | - |
| Eco / Efficiency | |
| 80 PLUS certification | Platinum |
| Efficiency (%) at 230V, 20% load | 92,4 |
| Efficiency (%) at 230V, 50% load | 93,9 |
| Efficiency (%) at 230V, 100% load | 92,5 |
| Environmental directives | |
| Energy Star | 7.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHs | ✓ |
| Cable management / Connectors | |
| Multi-GPU ready | ✓ |
| Modular Cable management | ✓ |
| Fully modular | ✓ |
| Sleeved cables | ✓ |
| Flat cables | - |
| Cable length to mainboard (cm) | 60 |
| Cable length to first connector (cm) | 55 |
| Maximum cable length (cm) | 115 |
| All-in-one cable (SATA/PATA/FDD) | - |
| No. of cables | 11 |
| ATX-Motherboard (20+4-pin) | 1 |
| P8 (CPU) | 1 |
| P4+4 (CPU) | 1 |
| P4 (CPU) | - |
| PCI-e 6-pin (GPU) | - |
| PCI-e 6+2-pin (GPU) | 6 |
| PATA 4-pin | 4 |
| SATA 15-pin (HDD, Drives) | 11 |
| FDD (Floppy) | 1 |
| External fan connectors | - |
| Casing | |
| Dimensions without cable (L x W x D), (mm) | 170 x 150 x 86 |
| Weight (kg) | 1.93 |
| Color | Black |
| Accessories | |
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | - |
| Box/Bag for PSU/Cables | - |
| User manual languages | EN, DE, FR, PL, ES, RU |
| OCK slot bracket with switch / OCK jumper | - |
| SFX-to-ATX adapter bracket | - |
| Service | |
| Warranty (Years) | 5 |
| Express replacement service in first year | DE, FR |
| International hotline / free of charge | ✓ / DE, FR |
| Logistics data, RRP | |
| Article number | BN645 |
| EAN code | 4260052187531 |
| Dimensions, package (L x W x H), (mm) | 328 x 248 x 102 |
| Gross weight, package (kg) | 3.43 |
| Pieces per packaging unit | 6 |
| Dimensions, shipping box (L x W x H), (mm) | 651 x 282 x 346 |
| Gross weight, shipping box (kg) | 24.47 |
