Straight Power 12, 80 PLUS Platinum 1000W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 16426949
- Manufacturer: be quiet!
- MPN: BN516
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$278.97
Straight Power 12, 80 PLUS Platinum 1000W, Fully Modular, ATX Power Supply
THE NEW STANDARD OF POWER
THE NEW STANDARD OF POWER
For massive transient loads
Straight Power 12 offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
- 80 PLUS Platinum efficiency (up to 93,9%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions

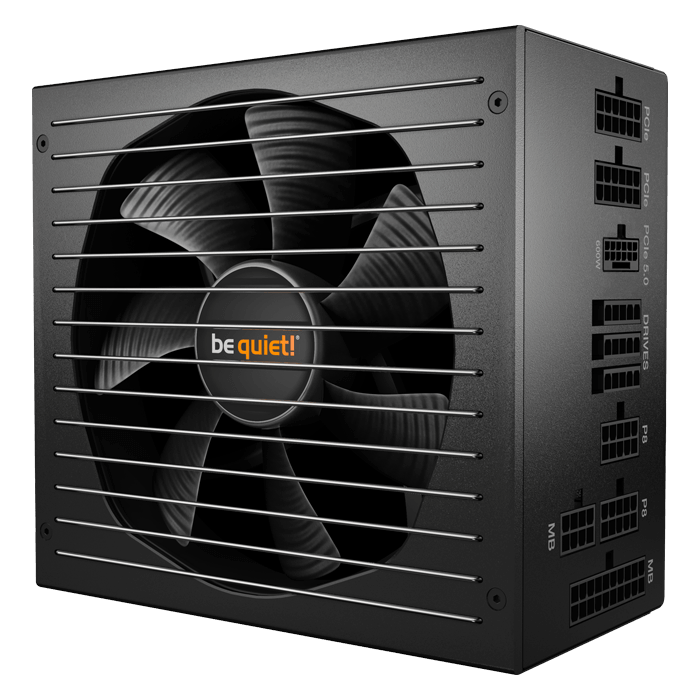

- Virtually inaudible Silent Wings 135mm fan
- Funnel-shaped fan opening on PSU case for high airflow intake

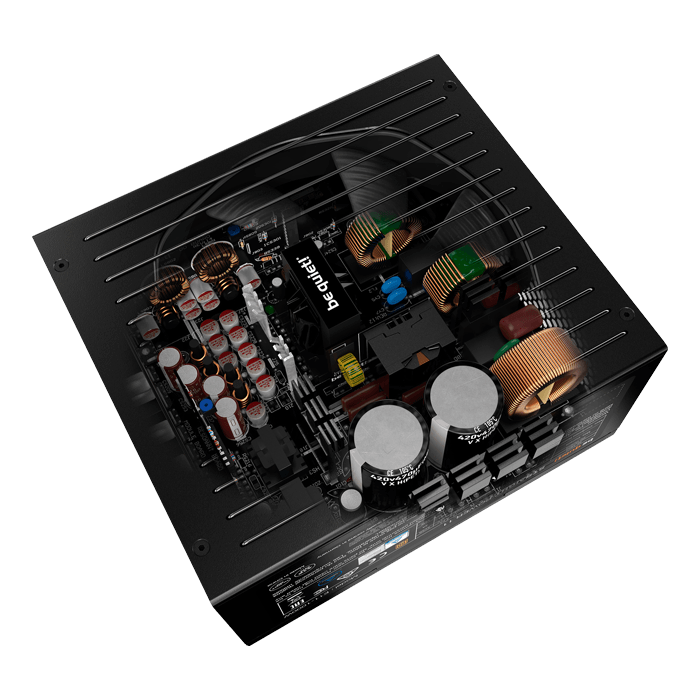

- Full bridge LLC technology for unmatched signal stability
- One massive high-performance 12V-rail
- Japanese 105°C capacitors ensure highest stability and reliability

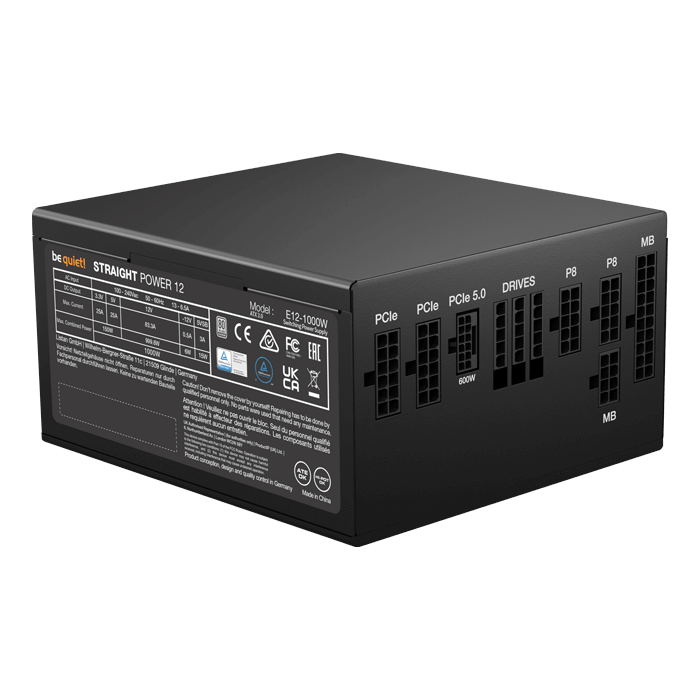

- Modular cable management for maximum convenience
- 10-year manufacturer’s warranty
| General data | |
| Model | Straight Power 12 1000W |
| Continuous power (W) | 1000 |
| Peak power (W) | 1070 |
| Form factor | Version 3.0 |
| Form factor EPS 12V | Version 2.92 |
| Topology | Full bridge + LLC + SR + DC/DC |
| Digitally controlled | - |
| Voltage ( Vac ) | 100 - 240 |
| Frequency ( Hz ) | 50 - 60 |
| Input current (A) | 13 / 6.5 |
| Power factor at 100% load | >0.99 |
| Modern standby | ✓ |
| Power consumption in standby (W) | 0.14 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
| Efficiency | |
| 80 PLUS certification | Platinum |
| Efficiency (%) at 230V, 2% load | 64.0 |
| Efficiency (%) at 230V, 10% load | 88.1 |
| Efficiency (%) at 230V, 20% load | 92.2 |
| Efficiency (%) at 230V, 50% load | 93.9 |
| Efficiency (%) at 230V, 100% load | 91.8 |
| Fan and cooling technology | |
| Fan | Silent Wings |
| Fan size (mm) | 135 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Max. fan speed (rpm) | 2100 |
| dB(A) at 10% load | 7.7 |
| dB(A) at 20% load | 7.7 |
| dB(A) at 50% load | 8 |
| dB(A) at 100% load | 28.9 |
| Output | |
| Multi-rail operation ( 12V rails ) | - |
| 12V single rail operation | ✓ |
| Overclocking key | - |
| +3.3V (A) | 25 |
| +5V (A) | 25 |
| +12V1 (A) | 83.3 |
| +12V2 (A) | - |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.5 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 999.6 |
| Max. combined power 12VHPWR (W) | 600 |
| Max. combined power 3.3V + 5V (W) | 150 |
| Hold-up time at 100% load (ms) | 25.3 |
| Power good signal (ms) | 100 - 150 |
| Cables and connectors | |
| Modular cables | ✓ |
| Sleeved cables | ✓ |
| Flat cables | - |
| Maximum cable length (cm) | 100 |
| Cable length to motherboard (cm) | 60 |
| No. of cables | 9 |
| ATX -Motherboard ( 20+4-pin ) | 1 |
| P4 +4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12VHPWR cables | 1 |
| PCI-e 6+2-pin ( GPU ) | 4 |
| PCI-e 6-pin ( GPU ) | - |
| SATA | 9 |
| PATA | 2 |
| FDD (Floppy) | - |
| Protection | |
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush Protection) | ✓ |
| Safety certification | |
| BSMI | ✓ |
| CB | ✓ |
| CCC | ✓ |
| CE | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| CU | ✓ |
| FCC | ✓ |
| RCM | ✓ |
| TÜV | ✓ |
| UKCA | ✓ |
| Environmental directives | |
| Energy Star | 8.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Triman | ✓ |
| Scope of delivery | |
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | - |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW, KR |
| OCK slot bracket with switch / OCK jumper | - |
| SFX -to- ATX adapter bracket | - |
| Casing | |
| Dimensions without cable (L x W x H), (mm) | 160 x 150 x 86 |
| Weight (kg) | 1.85 |
| Color | Black |
| Service | |
| Warranty (Years) | 10 |
| Express replacement service in first year | DE, FR |
| International hotline / free of charge | ✓ / DE, FR |
| Logistics data and RRP | |
| Article number | BN516 |
| EAN code | 4260052190296 |
| Dimensions, package (L x W x H), (mm) | 328 x 248 x 102 |
| Gross weight, package (kg) | 3.56 |
