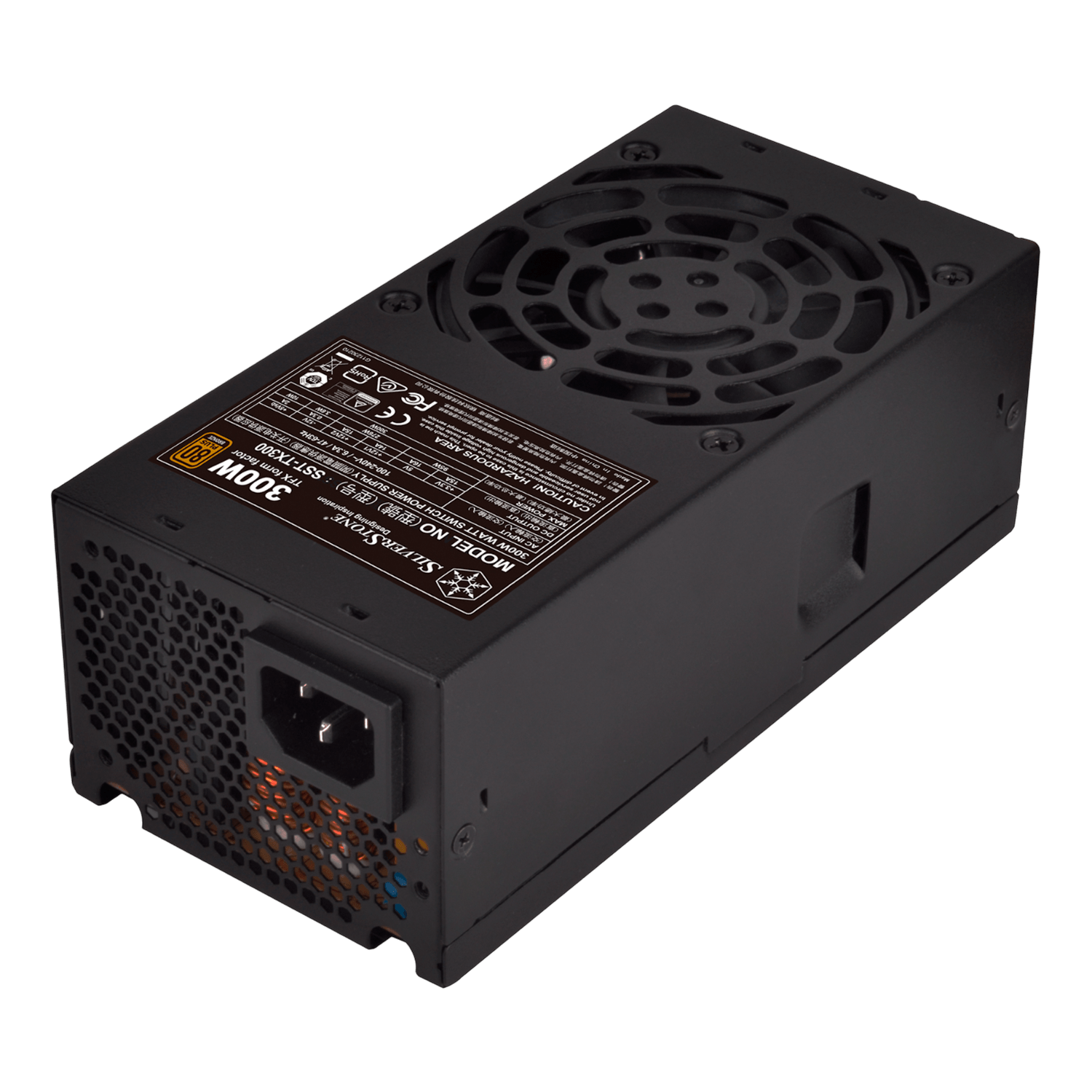

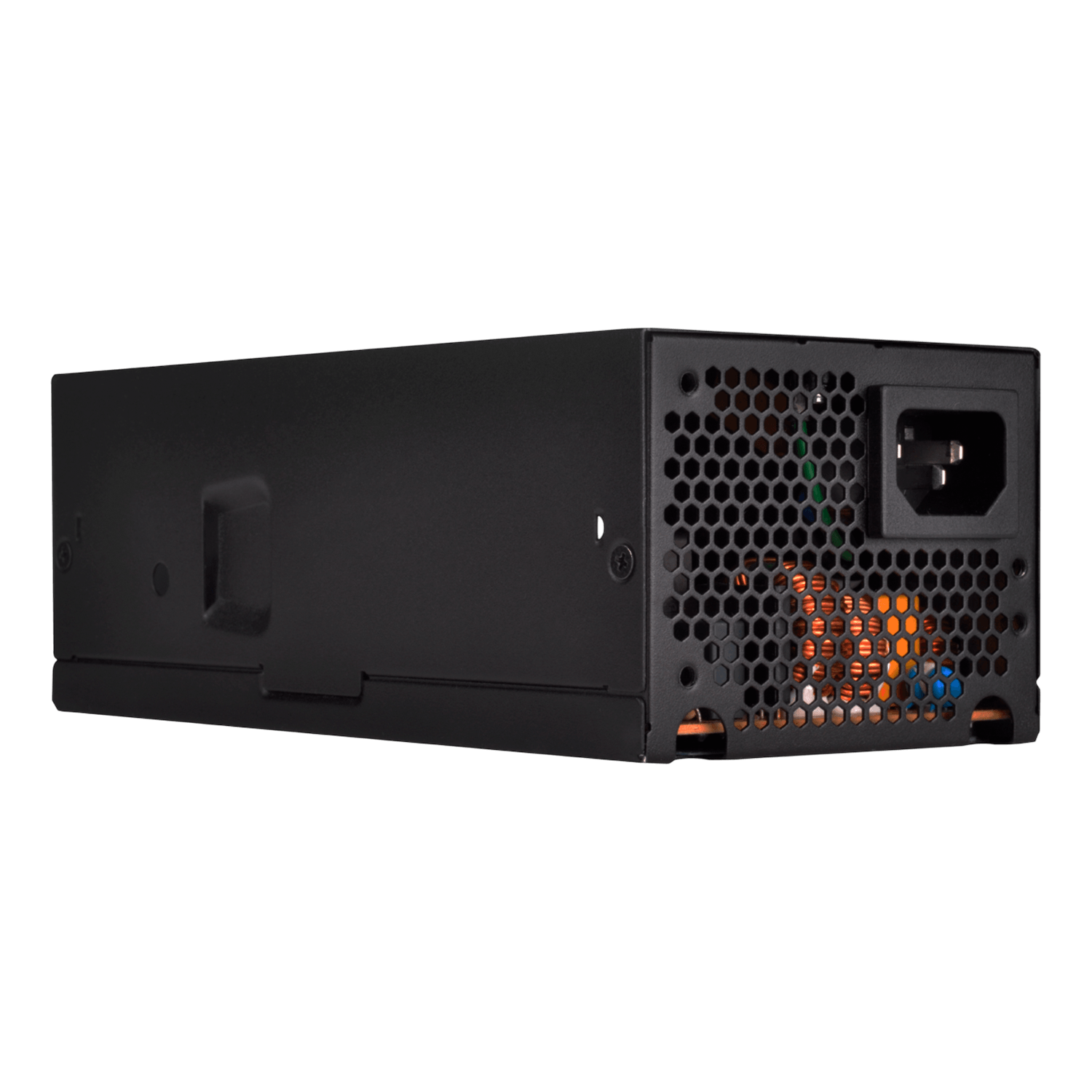

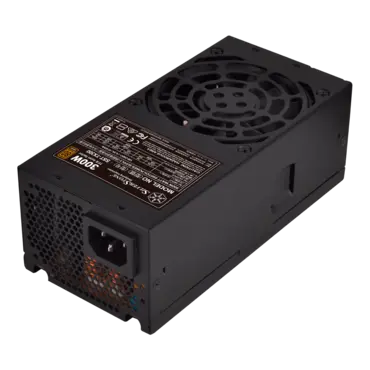

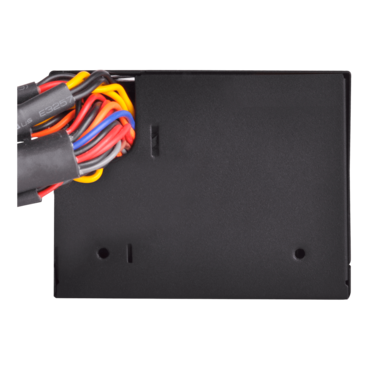

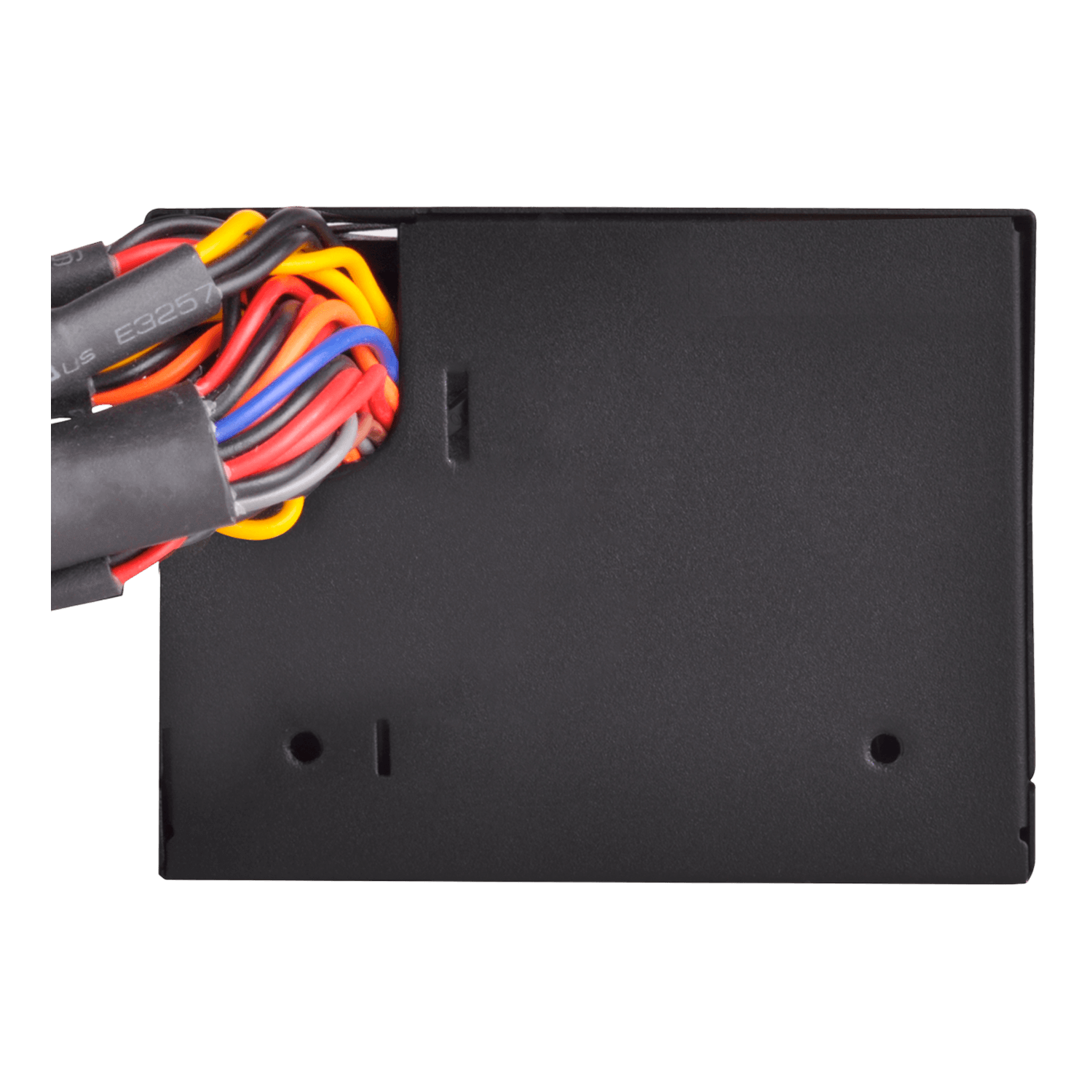

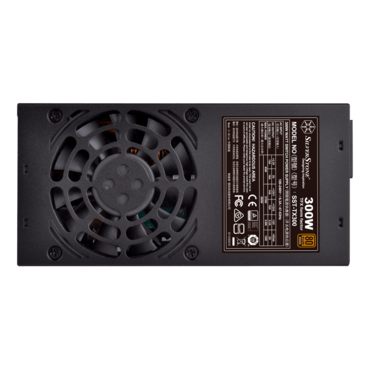

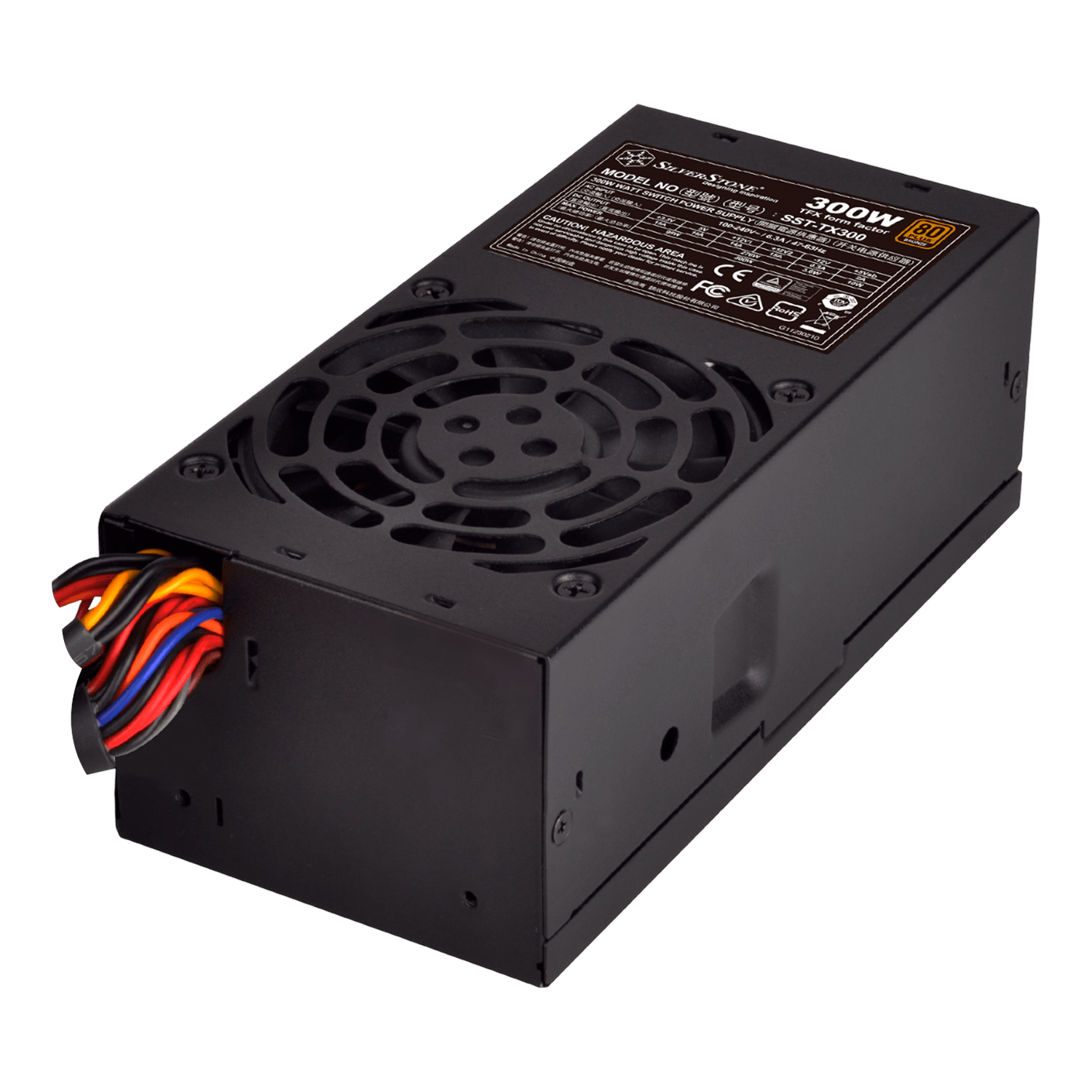

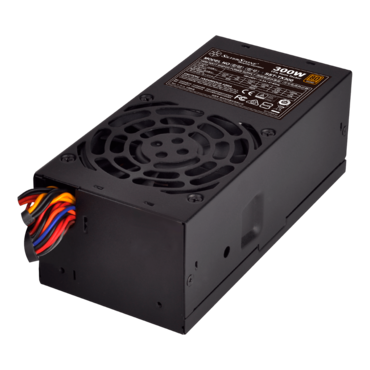

TX300, 80 PLUS Bronze 300W, No Modular, TFX Power Supply
Quantity:
- SKU: 13171102
- Manufacturer: SILVERSTONE
- MPN: TX300
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$86.25
- Support standard TFX form factor
- 300W continuous power output at 40°C operating temperature rated for 24/7 operation
- High efficiency with 80 PLUS Bronze certification
- Silent running 80mm fan with 18 dBA minimum
- Single PCI-E 6pin connectors support
- Active PFC
| Product No. | SST-TX300 | |||||
| Color | Black(Lead-Free Paint) | |||||
| Max. DC Output | 300W | |||||
| Power density | 310W per liter | |||||
| Combined +3.3V & +5V | 95W | |||||
| Combined +12V | 276W | |||||
| Input Voltage | 90 ~ 264 Vrms | |||||
| Input Frequency Range | 47Hz ~ 63Hz | |||||
| PFC | Active PFC (PF>0.9 at full load) | |||||
| Efficiency | 82% ~ 85% at 20% ~ 100% loading | |||||
| MTBF | 100,000 hours | |||||
| Operating temperature | 0°C ~ 40°C | |||||
| Protection |
Over power protection Over voltage protection Short circuit protection |
|||||
| Connectors |
1 x 24 / 20-Pin motherboard connector (350mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (450mm) 1 x 6-Pin PCIE connector (350mm) 4 x SATA connector ("350mm / 150mm" x 2) 2 x 4-Pin Peripheral connector (350mm / 150mm) 1 x 4-Pin Floppy adapter connector (350mm / 150mm / 150mm) |
|||||
| Cooling System | Single 80mm silent fan | |||||
| Noise Level | 18 dBA minimum | |||||
| Certification | 80 PLUS Bronze | |||||
| Form factor | TFX | |||||
| Dimension | 85 mm (W) x 65 mm (H) x 175 mm (D) | |||||
| Weight | 1 kg | |||||
| Load Range | ||||||
| Output | +3.3V | +5V | +12V1 | +12V2 | +5VSB | -12V |
| Max.(Amps) | 5A | 6A | 4A | 5A | 2.0A | 0.3A |
| Peak (Amps) | / | / | / | / | / | / |
| Min.(Amps) | 0.3A | 0.5A | 0.5A | 0.5A | 0A | 0A |
| Range (%) | ±5% | ±5% | ±5% | / | ±10% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | / | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 20mV | / | 50mV | 20mV |
