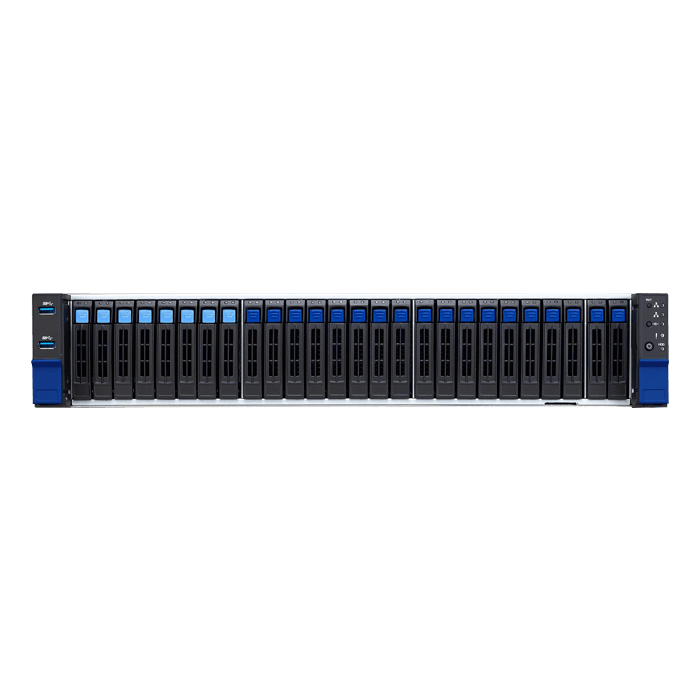

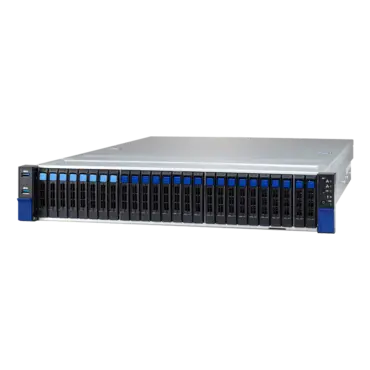

Transport HX TS75A-B8252 (B8252T75AV18E8HR-8X-2T), 2U, 18x SAS/SATA + 8x NVMe, 32x DDR4, Dual 10GbE, 1600W Rdt PSU, HPC Server Platform

SKU: 13236223

Manufacturer: TYAN

MPN: B8252T75AV18E8HR-8X-2T

Availability: Unknown


Price: $3,098.10
or as low as $100/month
Quantity:
System Form Factor 2U Rackmount
Chassis Model TS75A
Dimension (D x W x H) 29.53" x 17.24" x 3.45" (750 x 438 x 87.6mm)
Motherboard Name S8252GM2NE-2T
Motherboard Notification # The motherboard not sold separately
Gross Weight 30 kg (66 lbs)
Net weight 19 kg (42 lbs)
Front Panel Buttons (1) RST / (1) ID / (1) PWR w/ LED
LEDs (1) HDD / (2) LAN / (1) ID / (1) BMC event
I/O Ports (2) USB 3.1 Gen1 ports
External Drive Bay Q'ty / Type (18) 2.5" Hot-swap SSD/HDD + (8) NVMe
HDD Backplane Support SAS 12Gb/s /SATA 6Gb/s /NVMe
Supported HDD Interface (18) SATA 6Gb/s + (8) NVMe
Notification The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required.
System Cooling Configuration FAN (6) 6cm fans
Power Supply Type RPSU
Input Range AC 100-127V/12A / AC 200-240V/9.48A
Frequency 50-60 Hz
Output Watts 1,600 Watts
Efficiency 80 plus Platinum
Redundancy 1+1
Processor Q'ty / Socket Type (2) AMD Socket SP3
Supported CPU Series (2) AMD EPYC™ 7002 Series Processors
Configurable Thermal Design Power (cTDP) Wattage Max up to 240W
Memory Supported DIMM Qty (16)+(16) DIMM slots
DIMM Type / Speed DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200
Capacity Up to 4,096GB RDIMM/LRDIMM
Memory channel 8 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCI-E (4) PCI-E Gen4 x8 slots (FH / HL) / (1) PCI-E Gen4 x8 slot (FH / HL) / (4) PCI-E Gen4 x8 slots (FH / 10.5”L)
Pre-install TYAN Riser Card
(PCI-E Gen4)
(1) M8252T75-L24-2F riser card for (2) FH/10.5”L PCI-E Gen4 x8 slots (left) / (1) M8252T75-R24-3F riser card for (2) FH/10.5”L PCI-E Gen4 x8 + (1) FH/HL PCI-E Gen4 x8 slots (right) / (1) M8252T75-L16-2L riser card for (2) HH/HL PCI-E Gen4 x8 slots (left) / (1) M8252T75-R16-2L riser card for (2) HH/HL PCI-E Gen4 x8 slots (right)
Others (1) PCI-E Gen4 x16 OCP 3.0 slot
LAN Q'ty / Port (2) 10GbE ports, (1) GbE port dedicated for IPMI
Controller Intel X550-AT2
PHY Realtek RTL8211E
Storage SATA Connector (2) SFF-8654 connectors for up to (16) SATA ports
Controller Direct from AMD EPYC CPU
Speed 6Gb/s
RAID N/A
Additional
SATA
Connector (2) SATA
Controller Marvell 9235
Speed 6Gb/s
RAID N/A
NVMe Connector (U.2) (4) SFF-8654 connectors for (8) front NVMe
Connector (M.2) (2) 22110/2280 (by PCI-E Gen4 interface)
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
I/O Ports USB (2) USB3.1 Gen1 ports (@ front) / (2) USB3.1 Gen1 ports (@ rear)
COM (2) headers (COM1, COM2)
VGA (1) D-Sub 15-pin port
RJ-45 (2) 10GbE ports, (1) GbE dedicated for IPMI
System Monitoring Chipset Aspeed AST2500
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2500
AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI sleeping states S0,S1,S5 / FAN speed control automatic / ACPI 6.0
Operating System OS supported list Please refer to our AVL support lists.
Regulation FCC (DoC) Class A
CE (DoC) Class A
CB/LVD Yes
C-Tick Class A
VCCI Class A
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Package Contains Barebone (1) TS75A-B8252 Barebone
Manual (1) Quick Installation Guide
