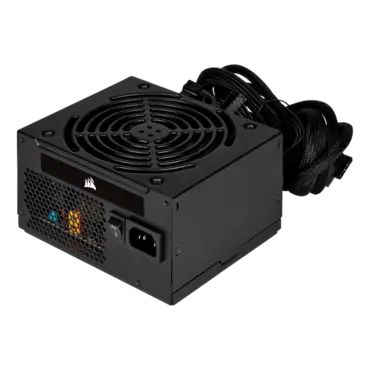

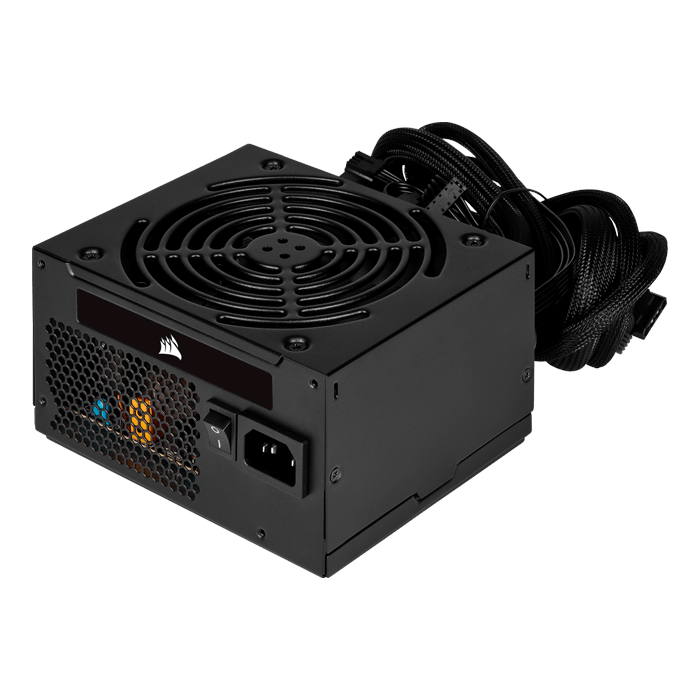

VS500, 80 PLUS Standard 500W, No Modular, ATX Power Supply
CORSAIR VS500 (CP-9020223-NA). Start your new PC off with a CORSAIR VS power supply, featuring 80 PLUS certified efficiency, a low-noise 120mm cooling fan, and a comprehensive three-year warranty.
ATX Connector | 1 |
ATX12V Version | v2.31 |
Continuous output rated temperature C | 30°C |
Continuous power W | 500 Watts |
Fan bearing technology | Sleeve Bearing |
Fan size mm | 120mm |
MTBF hours | 100,000 hours |
Multi-GPU ready | No |
Warranty | Three Years |
80 PLUS Efficiency | 80 PLUS Certified |
PSU Form Factor | ATX |
iCUE Compatibility | No |
Zero RPM Mode | No |
Cable Type | Sleeved and flat, black cables |
C-Link Ready | No |
Dimensions | 150mm x 86mm x 125mm |
EPS12V Connector | 1 |
EPS12V Version | v2.92 |
Floppy Connector | 1 |
Modular | Fixed Cable |
PCIe Connector | 2 |
SATA Connector | 6 |
PATA Connector | 2 |
Modern Standby | No |
Special Technology | None |
Protections |
OVP (Over Voltage) UVP (Under Voltage) SCP (Short Circuit) OTP (Over Temp) OPP (Over Power) |
