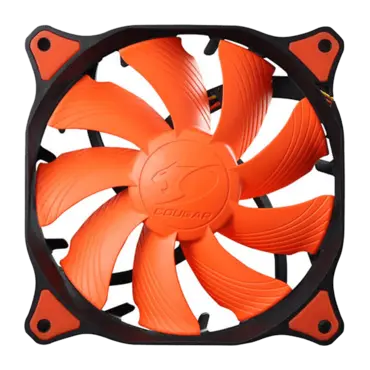

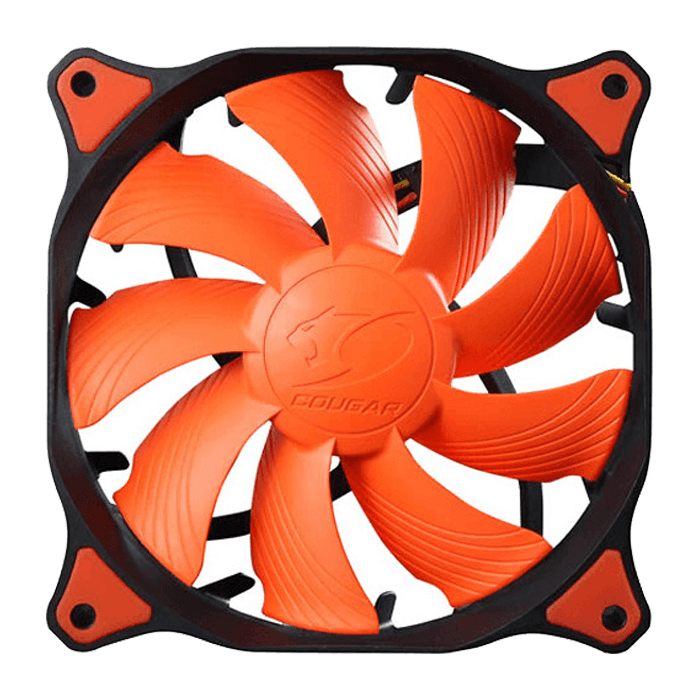

Vortex PWM
Best Cooling Efficiency & Super Silent Performance
Overview:
- PWM Function
PWM stands for Pulse Width Modulation. The 4-Pin connector allows the mainboard to control the fan speed from 800-1500RPM.
- High Vortex Airflow with Turbine Blade & Frame Patented Design
Optimum airflow, air pressure & extremely silent performance
- Diversion Groove Blade Design
Innovative blade design focus air flow & optimum cooling efficiency (Patent)
- Anti-Vibration Pad Design
Reduce the vibrations efficiently & silent operation
- Aero-Dynamical Design
Air-inlet with optimal aero-dynamical design reducing noisy air turbulences
- Hydro-Dynamic Bearing Technology
HDB runs more smoothly with no friction, make it quietly & durability(MTBF300,000hrs)
- Tool-less Fixed Pins
Rubber fixed pins also reduces vibrations (fan run more quietly) and Tool-less makes it easy to mount, with no tools required
Specifications:
|
Model
|
CF-V12HP
|
|
Marketing name
|
VORTEX PWM 120
|
|
Dimensions
|
120 x 120 x 25
|
|
Speed
|
800-1500
|
|
Air flow @ 12V (CFM, m3/h)
|
70.5 / 119.8(max.)
|
|
Air pressure @ 12V (mm H2O)
|
2.2
|
|
Noise
|
17.9dB
|
|
Bearing type
|
HDB (Hydro-Dynamic Bearing)
|
|
Connector
|
PWM 4 pin
|
|
Cable length
|
450mm
|
|
Cable sleeve
|
Yes
|
|
Accessories
|
Small 4 to big 4pin adapter
|
|
Tool-less fixed pins
|
|
Screws
|
|
Carton
|
Color box with PVC window
|
|
Lifetime L10 (hours / 25°C)
|
300000
|
|
