X570 DARK, AMD X570 Chipset, AM4, E-ATX Motherboard

  • SKU: 14635811
  • Manufacturer: EVGA
  • MPN: 121-VR-A579-KR
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
X570 DARK, AMD X570 Chipset, AM4, E-ATX Motherboard

The EVGA X570 DARK brings the exclusive DARK experience to Team Red for the rst time. This motherboard evolved through a comprehensive design overhaul to squeeze out the full performance of the legendary AMD Zen 3 processors. With a highly-ecient 17-phase digital VRM design, 10-layer PCB, and two built-in VRM fans, it's no wonder that some tried to fool you with DARK imitations. Powered with unmatched multi-core performance and energy eciency, the EVGA X570 DARK unshackles your PC with PCIe Gen4 support for the latest graphics cards and M.2 storage, lightning-fast 4800MHz+(OC) memory support, two Intel 2.5 Gb/s NICs, Wi-Fi 6/BT 5.2, plus an abundance of SATA 6Gb/s ports and USB options. The search for the pinnacle of desktop PC performance is over: this is the way.

  • 17 Phase Digital VRM
  • Preinstalled Rear I/O Cover
  • EVGA Wi-Fi Antenna
  • PCI Express 4.0 Ready
  • NVIDA® SLI® Ready Enthusiast Layout
  • Supports NVIDIA® Resizable BAR
  • Metal Reinforced PCIe slots
Supported CPUs AMD Ryzen™ 5000, 3000 Desktop Processors
Socket Type AMD AM4 Socket
Chipset AMD X570
PCIe Slots 2x PCIe 4.0 x16 (x16, x8/8), 1x PCIe 4.0 x4
Memory DIMMs 2 DIMMs Dual-Channe
Memory Type DDR4 4800MHz+ (OC)
Memory Capacity 64GB
SATA 6 Gb/s Ports/Controller 8 from AMD X570
RAID Support RAID 0, 1, 10
M.2 Key-M Sockets 2x 110mm PCIe 4.0 (Up to 64Gb/s)
M.2 Key-E Sockets 1x 32mm
Internal USB Ports/Headers 1x USB 2.0 Port (for BIOS update), 2x USB 2.0 Headers,
1x USB 3.2 Gen1 Header, 1x USB 3.2 Gen2 Type-C Header
Rear I/O USB Ports 2x USB 3.2 Gen1 Type-A, 4x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C
Network Speed 10/100/1000/2.5Gbps
Network Controller 2x Intel® I225-V 2.5 Gigabit NICs
Wi-Fi/BT Intel® AX200 Wi-Fi 6/BT 5.2 module,
preinstalled in the M.2 Key-E 32mm Slot
Audio 7.1 Channel Realtek 1220, EVGA NU Audio
Fan Headers 2x CPU PWM, 4x PWM/DC, 2x PUMP Headers
RGB Headers 2x RGB Headers, 2x ARGB Headers
BIOS Type Latest UEFI BIOS with mouse/keyboard control,
OC Robot, In-BIOS Stress Test
Software EVGA ELEET X1 Tuning Utility
DIMENSIONS Width: 10.9in - 277mm
Length: 12in - 305mm
Form Factor: E-ATX Form Factor

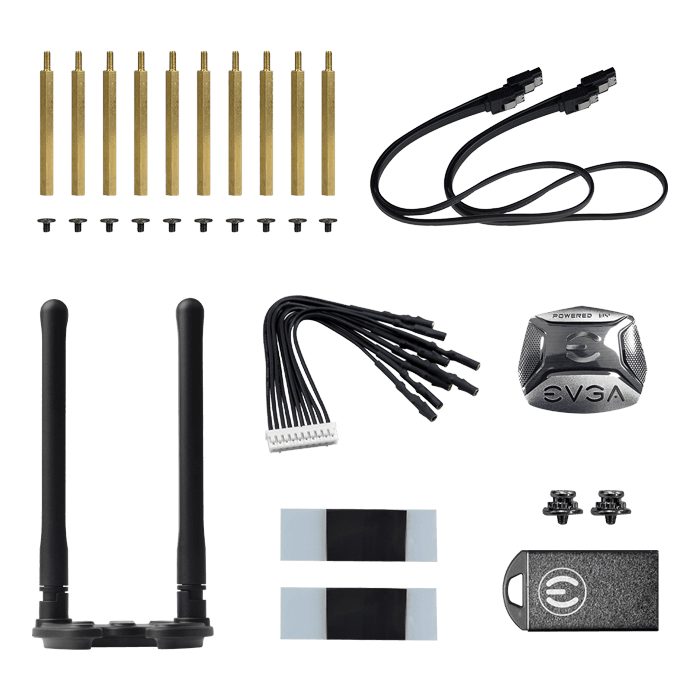

ACCESSORIES EVGA Quick Installation Guide
M.2 Key-M Thermal Pads
SATA 6Gb/s Data Cables
EVGA Wi-Fi Antenna
Probelt Cable
Baseplate Screws and Standos
Case Badge
M.2 Screw Kit
USB Flash Drive
+ Contains Drivers and Manual
