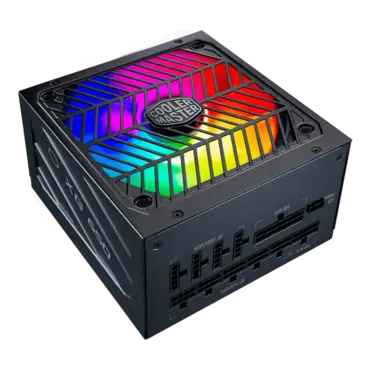

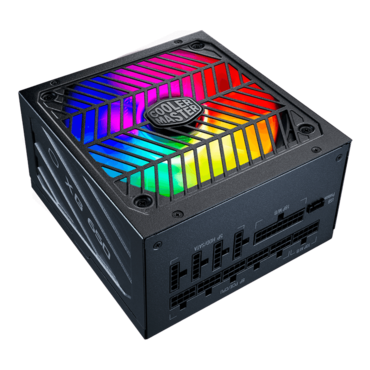

XG750 PLUS, 80 PLUS Platinum 750W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 15882896
  • Manufacturer: COOLER MASTER
  • MPN: MPG-7501-AFBAP-XUS
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$139.60
Quantity:
XG750 PLUS, 80 PLUS Platinum 750W, Fully Modular, ATX Power Supply

SILENCE IS PLATINUM

The XG Plus Platinum is Cooler Master’s first in-house designed platform, created to provide rated efficiency and high-end performance. It offers full-modular cabling with in-line capacitors, an ARGB 135mm silent fan, and a 10 year warranty. The built-in Information Display Panel compatible with MasterPlus+ software, can monitor real time performance and manage ARGB effects hassle-free.

  • Intel ATX 12V Version 2.53
  • 80 Plus Gold Efficiency
  • 80 PLUS Platinum Certified
  • Quiet ARGB 135mm silent Fan
  • Built-in Information Display Panel
  • Full-Modular Cabling with 100% Japanese In-Line Capacitors
  • 10-Year Warranty
Model MPG-7501-AFBAP-X
ATX Version Intel ATX 12V Ver. 2.53
PFC Active PFC
Input Voltage 100-240V
Input Current 10-5A
Input Frequency 50-60Hz
Dimensions (L x W x H) 160 x 150 x 86 mm
Fan Size 135mm
Fan Speed 1800 RPM
Noise Level @ 100% ≤ 25 dBA
Efficiency ≥ 92% @ Typical Load
80 PLUS Rating 80 PLUS Platinum
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100 - 150 ms
Hold Up Time ≥ 16ms
MTBF >100,000 Hours
Protections OPP, OVP, OCP, UVP, SCP, OTP, Surge and Inrush Protection
Regulatory TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 12
Peripheral 4 Pin Connectors 4
PCI-e 6+2 Pin Connectors 4
USB Protocol 10P 1
Series XG Series
80 Plus Platinum
Modular Full Modular
Wattage 500 to 750W
