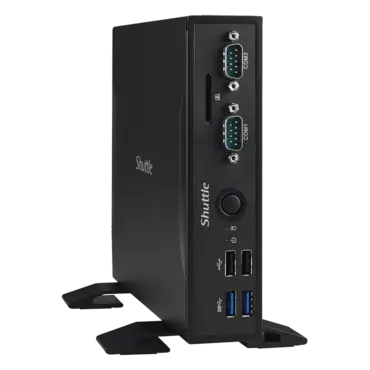

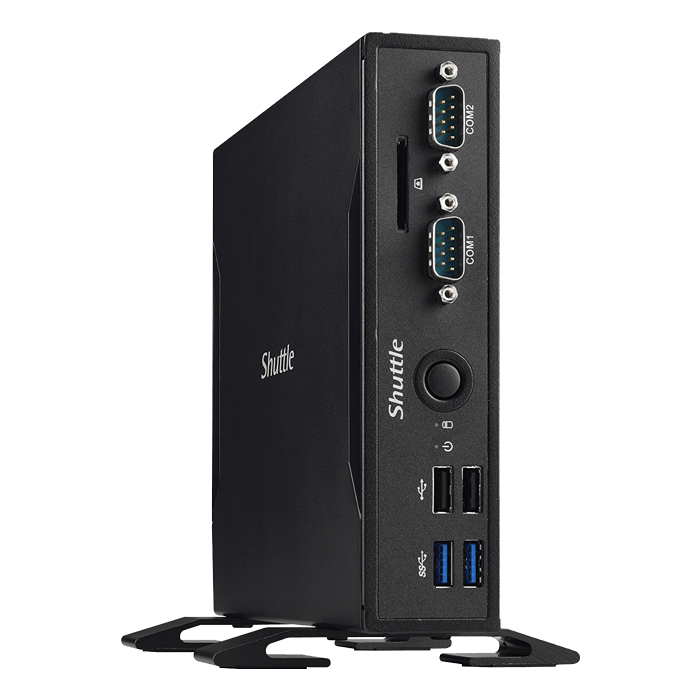

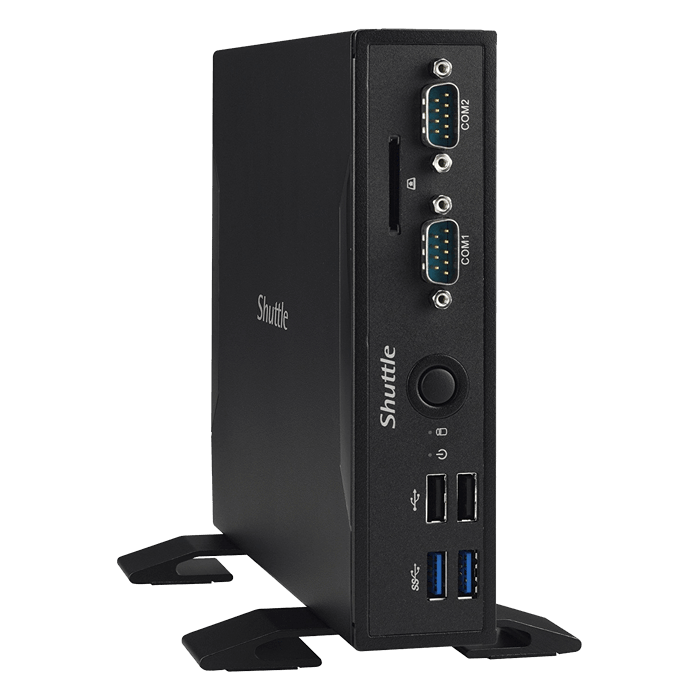

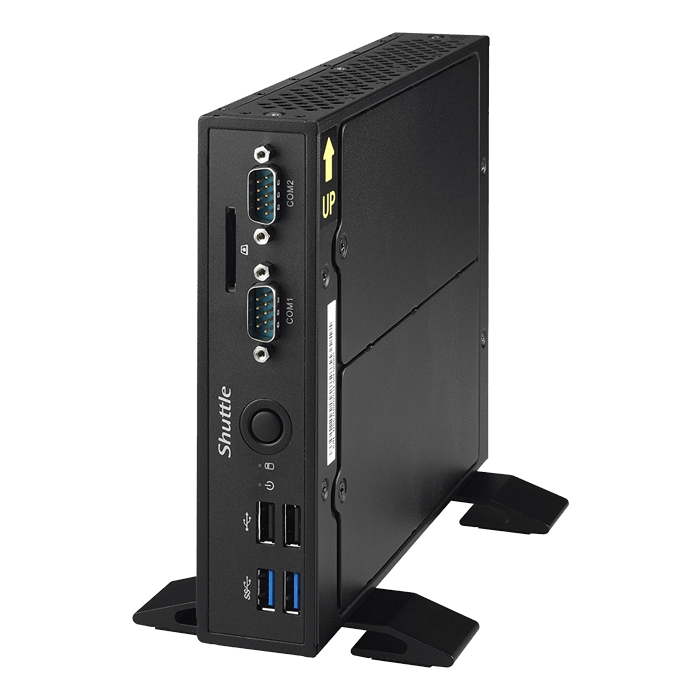

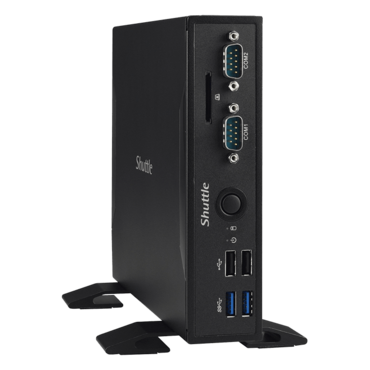

XPC Slim DS77U5, Intel Core i5-7200U, 2x DDR4 SO-DIMM, M.2, 2.5" HDD/SSD, Intel HD Graphics 620, Mini PC Barebone
Quantity:
- SKU: 11351677
- Manufacturer: SHUTTLE
- MPN: DS77U5
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$995.22
| FORM FACTOR | Shuttle 1.3L Chassis |
|---|---|
| PROCESSOR | Intel Kabylake-U Core i5-7200U 15W CPU |
| MEMORY | 2 x 260 pin DDR4 SODIMM slots, 16GB per DIMM (Max 32GB)
Dual Channel DDR4 2133Mhz |
| VIDEO OUTPUT | DisplayPort (without Audio)+ HDMI dual display |
| AUDIO | Realtek ALC662 2 channel High Definition audio |
| ETHERNET | Intel i211 and i219LM
100Mb/s and 1Gb/s operation Support Wake-On-LAN function Realtek RTL 8188EE 802.11 b/g/n WLAN module |
| STORAGE INTERFACE | 6.0Gb/s bandwidth SATA3 |
| ONBOARD CONNECTORS | (1) 2.5 inch SATA connector
(1) Auto Power on Jumper (1) Clear CMOS |
| FRONT PANEL | (1) Power on button
(1) Power LED (1) HDD LED (2) USB 2.0 ports (2) USB 3.0 ports (1) RS232/RS422/RS485 (1) RS232 (1) SD Card reader |
| DRIVE BAYS | (1) 2.5" HDD / SSD bay |
| DIMENSIONS | 200(L) x 165(W) x 39.5(H) mm |
| POWER | Input:100- 240V AC
Output: 19V/3.42A or 12V/5.42A DC 65W 19V Adapter bundled |
| EXPANSION SLOT | (1) M.2 2280 Type M key socket
(1) M.2 2230 Type A,E Key socket |
| OS SUPPORT | Windows 10
Linux |
