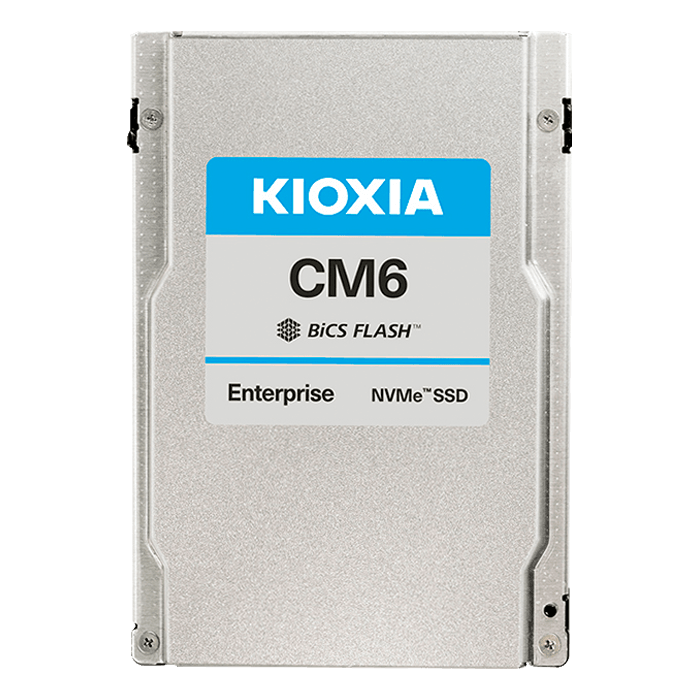

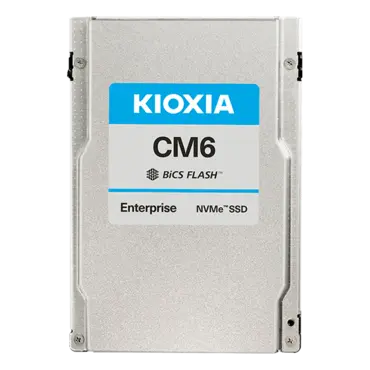

15.36TB CM6-R 15mm, 6900 / 4000 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, SED, TCG Enterprise/Opal SSC, U.3 2.5" SSD

Quantity:
  • SKU: 13784712
  • Manufacturer: Kioxia
  • MPN: KCM6DRUL15T3
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$3,593.20
Quantity:
15.36TB CM6-R 15mm, 6900 / 4000 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, SED, TCG Enterprise/Opal SSC, U.3 2.5" SSD

KIOXIA 15.36TB KCM6DRUL15T3. The CM6-R series is a read-intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 4.0 and NVMe™ 1.4 technology, the CM6 Series SSDs deliver excellent performance up to 1.4M IOPS (random read), with maximum power consumption of 25 W.

  • PCIe® 4.0, NVMe™ 1.4 specification compliant
  • Form factor: 2.5-inch, 15 mm Z-height
  • Proprietary KIOXIA architecture: controller, firmware and BiCS FLASHTM 96-layer 3D TLC memory
  • SFF-TA-1001 conformant (U.3), works with Tri-mode controllers and backplanes
  • Dual-port design for high availability applications
  • 6th generation, two-die failure recovery and double parity protection
  • High performance with lower power consumption
  • Power loss protection (PLP) and end-to-end data protection
  • Suited for 24x7 enterprise workloads
  • Data security options: SIE, SED, FIPS 140-2[1, 2, 3, 4, 5]
  • Six power mode settings
SED Model Number KCM6DRUL15T3
Capacity 15,360 GB
Physical
Interface Specification PCIe® 4.0, NVMe™ 1.4
Interface Speed 64 GT/s (Gen4 1x4, 2x2)
Memory Type BiCS FLASH™ TLC
Performance in single port (1x4) mode(Up to)
Sustained 128 KiB Sequential Read 6,900 MB/s
Sustained 128 KiB Sequential Write 4,000 MB/s
Sustained 4 KiB Random Read 1,400,000 IOPS
Sustained 4 KiB Random Write 170,000 IOPS
Power Requirements
Supply Voltage 12 V ± 10%, 3.3 Vaux ± 15%
Power Consumption (Active) 21 W Typ.
Power Consumption (Ready) 5.0 W Typ.
Reliability
MTTF 2,500,000 hours
Warranty 5 years
DWPD 1
Mechanical
Height 15.0 mm + 0, - 0.5 mm
Width 69.85 ± 0.25 mm
Length 100.45 mm Max
Weight 130 g Max.
Environmental
Temperature (Operating) 0 °C to 70 °C
Humidity (Operating) 5 % to 95 % R.H.
Vibration (Operating) 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
Shock (Operating) 9,800 m/s2 { 1,000 G } ( 0.5 ms duration )
