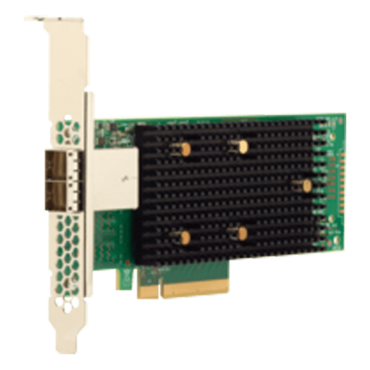

9400-16e, SATA/SAS, 16-Port, PCIe 3.1 x8, Host Bus Adapter

SKU: 13209512

Manufacturer: Broadcom

MPN: 05-50013-00

Availability: Low Stock


Price: $662.03
or as low as $21/month
Quantity:

Designed for large-scale external storage enclosures, the 9400-16e Tri-Mode Storage Adapter is ideal for increased connectivity and maximum performance for data center flexibility. With increased bandwidth and IOPS performance compared to previous generations, the 9400-16e adapter delivers the performance and scalability needed by critical applications.

  • Connects up to 1024 SAS/SATA devices
  • Provides maximum connectivity and performance for high-end servers and applications
  • Support critical applications with the bandwidth of PCIe® 3.1 connectivity
  • Ideal for connecting large-scale external storage enclosures
Specification Value
Lifecycle Active
Host Bus Type x8 lane PCI Express® 3.1
Physical Dimensions 6.600" x 2.712"
Devices Supported SAS/SATA: 1024
External Connectors 4 mini-SAS HD SFF8644
Operating Temperature 0°C to 55°C
OS Support Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
PCI Power Typical: 11.18W
Cable Support Passive Copper, Active copper, Active Optical
I/O Controller SAS3416
MTBF > 4,500,000 hours at 40° C
Operating Humidity 20% to 80% Non-condensing
Brackets Full height and low profile
Regulatory Certifications Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Warranty 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
Data Transfer Rates 12Gb/s SAS-3 Compliant
Management Software LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
