General data | |

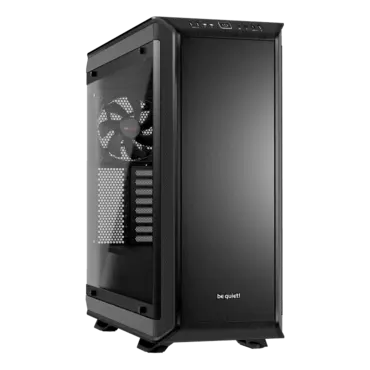

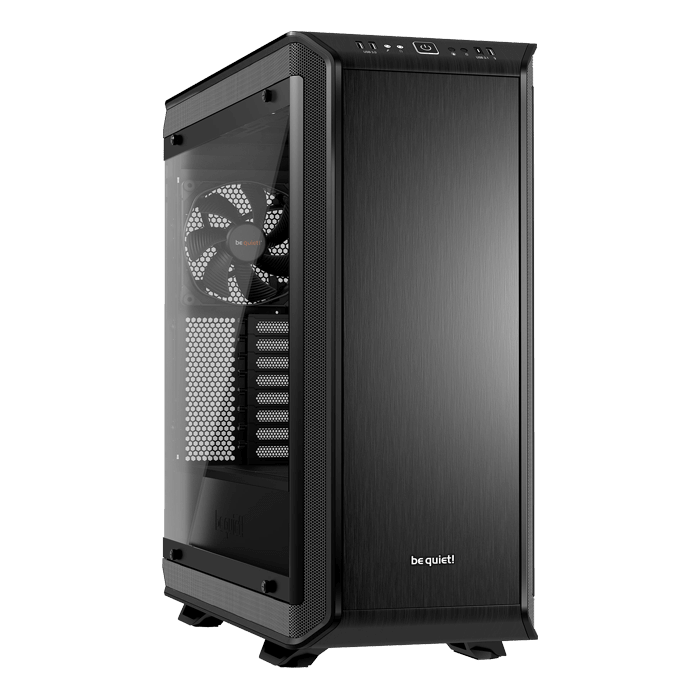

Model | DARK BASE PRO 900 | BLACK rev. 2 |
PSU form factor | ATX PS/2 |
Motherboard compatibility | E-ATX, XL-ATX, ATX, M-ATX, Mini-ITX |
Case size excl. stands (L x W x H), (mm) | - |
Installation of motherboards with backplate | ✓ |
Case size incl. stands (L x W x H), (mm) | 577 x 243 x 586 |
Dimensions side panel window (L x W), (mm) | 479 x 525 |
Color option | Black |
Weight (kg) | 14.39 |
USB 2.0 | - |
USB 3.0 | 2 |
USB 3.1 Gen 2 Type C | 1 |
HD Audio I/O | 1 |
Expansion slots | 8 |
Fan mounting locations | 10 |
Qi charger / Quick Charging Option | ✓ |
Material | |
Top cover | ABS, Aluminum |
Side panel | Steel, ABS |
Side panel window | 4mm tempered glass |
Front panel | ABS, Aluminum |
Stands | ABS |
Drive bay capacity | |
5.25 bays | 2 |
3.5 slots (max.) | 7 |
3.5 slots (scope of delivery) | 5 |
2.5 slots (max.) | 14 |
2.5 slots (scope of delivery) | 10 |
Pre-installed fans | |
Fan @ front | 2x be quiet! Silent Wings 3 | 140mm PWM |
Fan @ rear | 1x be quiet! Silent Wings 3 | 140mm PWM |
Dimensions (L x W x H), (mm) | Front: 140 x 140 x 25, Rear: 140 x 140 x 25 |
Fan speed @ 12V (rpm) | 1,600 |
Noise level @ 12V dB(A) | 28.1 |
Airflow @ 12V (cfm / m3/h) | 77.57 /131.79 |
Air pressure @ 12V (mm H2O) | 2.16 |
Voltage range (V DC) | 12 |
Input power (W) | 1.68 |
Input current (A) | 0.5 |
Connector | 4-pin |
Lifespan (h / 25°C) | 300.000 |
Fan controller | Dual rail stepless fan controller (8x 4-pin), PWM hub |
Optional fan installation | |
Front (mm) | 1x 140 (w/o ODD cage, bracket included) |
Top (mm) | 3x 140 / 4x 120 / 1x 180 |
Bottom (mm) | 2x 140/120 |
Side panel (mm) | - |
PSU shroud | 1x 120 |
Optional radiator installation | |
Front (mm) | 120 / 140 / 240 / 280 / 360 / 420 |
Top (mm) | 120 / 140 / 180 / 240 / 280 / 360 / 420 |
Bottom (mm) | - |
Rear (mm) | 120 / 140 |
Cooling | |
Max.construction height of CPU cooler unit (mm) | 185 |
Airflow channel | Full circuit airflow system |
Lighting | |
RGB LED illumination | external / internal |
LEDs synchronizable with RGB controller/motherboard | ✓ |
Expandable RGB controller | ✓ |
PSU compatibility | |
Maximum dimensions excl. bottom fan (mm) | 284 |
Maximum dimensions incl. bottom fan (mm) | 150 |
Graphics card | |
HDD cage (in height of graphics card) installed (mm) | 323 |
HDD cage (in height of graphics card) removed (mm) | 472 |
Insulation and damping | |
Top panel insulation mats | - |
Front panel insulation mats | ✓ |
Side panel insulation mats | ✓ |
Anti-vibration decoupled HDD | ✓ |
Anti-vibration decoupled fan | ✓ |
Anti-vibration decoupled PSU | ✓ |
Anti-vibration decoupled motherboard-tray | ✓ |
Removeable dust filters | |
Front | 1 |
Bottom | 1 |
Side panel | 1 |
Accessories | |
Screw set (Drives/Motherboard) | ✓ |
Rubber rail (pcs.) | - |
Standoff (pcs.) | 3 (for E-ATX) |
LCS bracket (pcs). | 1 |
HDD slot cover (pcs.) | 6 |
Upper fan bracket (pcs.) | 1 |
HDD panel rubber grommet (pcs.) | - |
SSD bracket for PSU shroud | 1 |
LED strips (pcs.) | 1 |
Cable ties (pcs.) | 6 (Velcro) |
Cable tie holder (pcs.) | - |
Service | |
Warranty (Years) | 3 |
International hotline / free of charge | ✓ / DE, FR |
Logistics data, RRP | |
Article number | BGW15 |
EAN code | 4260052186909 |
Certifications | CE, RoHS |
Dimensions, package (L x W x H), (mm) | 655 x 325 x 680 |
Gross weight, package (kg) | 16.52 |
