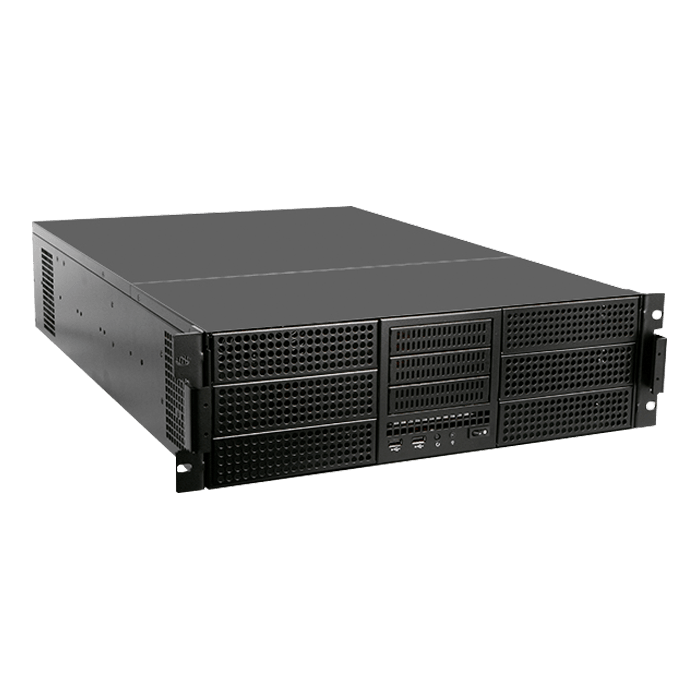

E-306L-80R3K, 6x 5.25", 3x 3.5" Drive Bays, 800W Rdt PSU, E-ATX, Black, 3U Chassis
E-306L-80R3K rackmount chassis is designed with six 5.25" drive bays Indicatorsand three 3.5" drive bays. combined with BPU 3.5" to 5.25" hdd cages provides up to 13 x 3.5" hard drives or SSDs capability for any RAID configuration. Four 80mm fans is equipped with E-306L to provide the best air ventilation preventing critical equipment from heat damage. E-306L also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications.
E-306L-80R3K 3U E-ATX 6 x 5.25" Bays Rackmount Chassis with 800W Redundant Power Supply
- 80mm x4 and 60mm x2 Cooling Fans
- 1.2mm Steel Body Chassis
- Power and Alarm Reset Switch
- Power LED Indicators
- Supports Front Access USB2.0 x2
- Supports E-ATX Motherboard
- 800W Redundant Power Supply
Model Number |
E-306L-80R3K |
RoHS Compliance |
Yes |
Form factor |
3 U |
Standard Drive Bays |
3.5" Drives: 3
5.25" Drives: 6 |
Indicators |
Power |
Switches |
Power, Reset |
Expansion Slots |
7 |
Material of Front Bezel |
Aluminum |
Material of Handle |
Aluminum |
Material of Main Chassis |
Zinc-Coated Steel SECC 1.2mm |
Color of Main Chassis |
Black |
Front Connector |
2x USB 2.0 |
Motherboard Size |
12 x 13 (EATX, ATX, microATX) |
Cooling Fan |
2x60mm, 4x80mm |
Dimensions (WxHxD) |
19.00" x 5.19" x 25.10"
482.6 mm x 131.8 mm x 637.5 mm |
