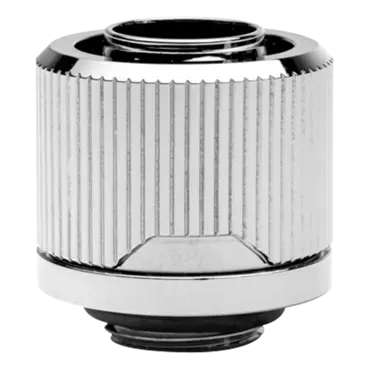

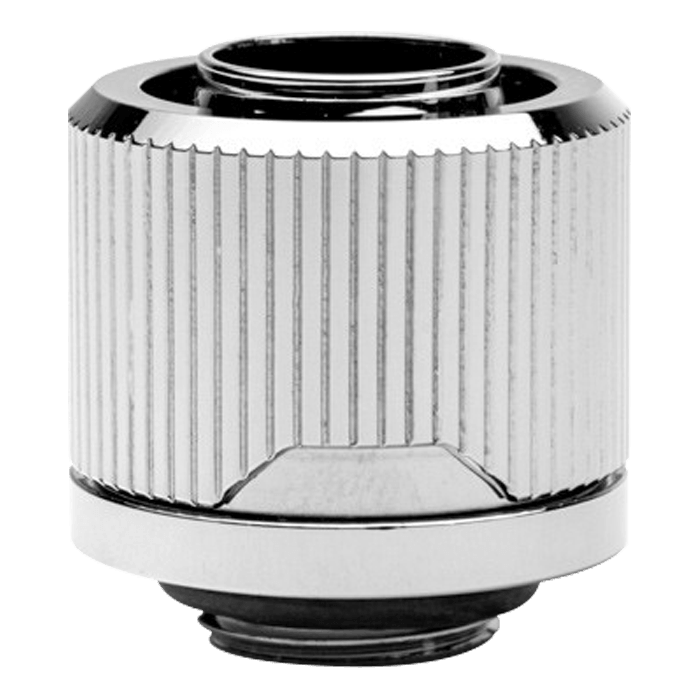

EKWB EK-Torque STC-12/16 (3831109813843). EK-Torque STC 12/16 fittings are EK's new minimalistic 12/16mm (ID/OD) soft-tube compression fittings designed for use with various flexible soft tubing types such as PVC, EPDM, Norprene, silicone or any other type of compatible flexible tube. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products.
- The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated fittings! EK is offering a selection of such products in the coolants section.
- Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
- This product should NOT be installed with any aluminum Fluid Gaming parts!
- The aesthetic rings are sold separately.
|- Thread||G1/4" BSPP; 4.5mm male thread length|
|- Supported tube||12/16mm (ID/OD)|
|- The outer diameter of a fitting||23mm|
|- Installed height||19mm|
|- Compatible soft tubing||PVC, EPDM, Norprene, silicone and most other flexible tubes|
