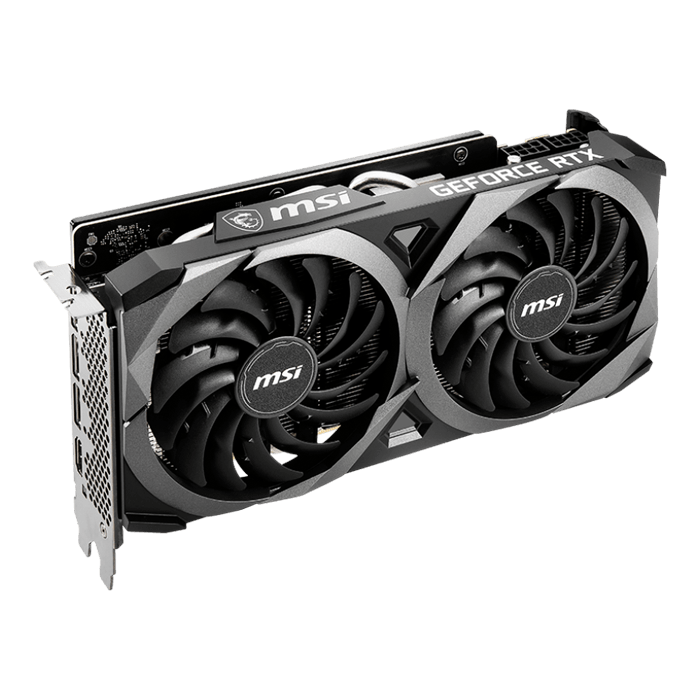

VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
The GeForce RTX™ 3060 Ti lets you take on the latest games using the power of Ampere—NVIDIA’s 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6X memory.
Boost Clock / Memory Speed
Dual Fan Thermal Design
Afterburner Overclocking Utility
MSI Center
MODEL NAME | GeForce RTX™ 3060 Ti VENTUS 2X 8GD6X OC |
GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 3060Ti GDDR6X |
INTERFACE | PCI Express® Gen 4 |
CORE CLOCKS | 1695 MHz |
CUDA® CORES | 4864 Units |
MEMORY SPEED | 19 Gbps |
MEMORY | 8GB GDDR6X |
MEMORY BUS | 256-bit |
OUTPUT |
DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz as specified in HDMI™ 2.1) |
HDCP SUPPORT | Y |
POWER CONSUMPTION | 225W |
POWER CONNECTORS | 8-pin x 2 |
RECOMMENDED PSU | 600W |
CARD DIMENSION (MM) | 232 x 124 x 52 mm |
WEIGHT (CARD / PACKAGE) | 856 g / 1279 g |
DIRECTX VERSION SUPPORT | 12 API |
OPENGL VERSION SUPPORT | 4.6 |
MAXIMUM DISPLAYS | 4 |
VR READY | Y |
G-SYNC® TECHNOLOGY | Y |
ADAPTIVE VERTICAL SYNC | Y |
DIGITAL MAXIMUM RESOLUTION | 7680x4320 |
