Meshify 2 Nano, Tempered Glass, No PSU, Mini-ITX, White, Mini Tower Case
Quantity:
- SKU: 15094137
- Manufacturer: Fractal Design
- MPN: FD-C-MES2N-02
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$82.34

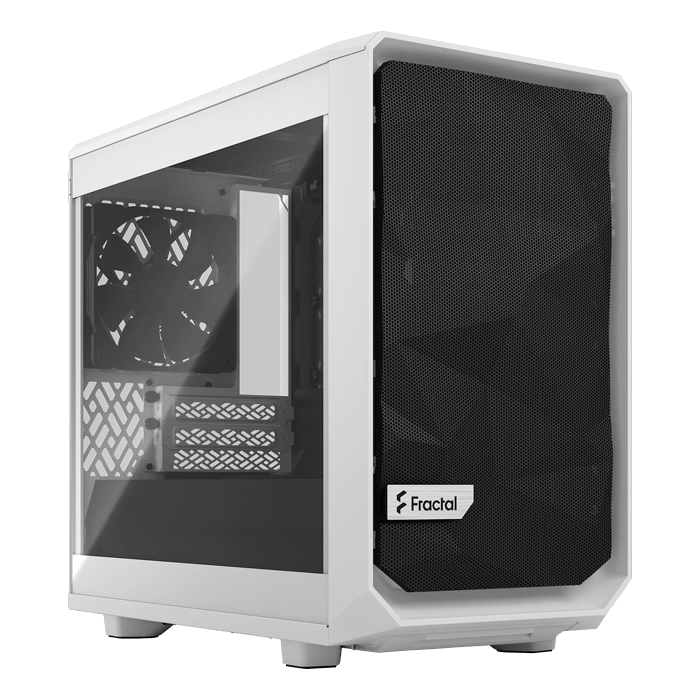

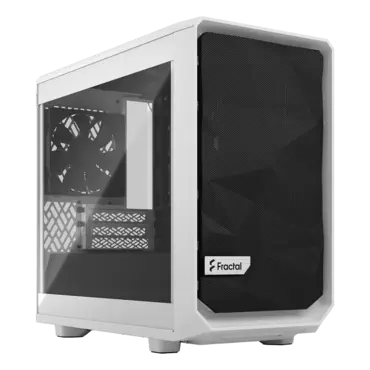

Meshify 2 Nano, Tempered Glass, No PSU, Mini-ITX, White, Mini Tower Case
The Meshify 2 Nano offers ITX form-factor enthusiasts plenty of scope for creative builds through excellent radiator support for its size and the ability to accommodate a GPU of up to 331 mm. It also features a fully removable top, bolt-free side panels and a removable front mesh to make building and cable routing easy and enjoyable. The flexible design and angular asymmetry are complemented by a flush TG panel to showcase your finished build.
- Compact yet spacious interior accommodates all Mini ITX motherboards
- Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
- Open interior layout creates a smooth airflow path from front intake to rear exhaust
- Room for GPUs up to 306 mm long including front fans with 331 mm total space
- Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism
- Fully removable top panel and a top fan bracket that opens to provide excellent interior access and easy cable routing
- Double layered front filter with detachable nylon for increased airflow

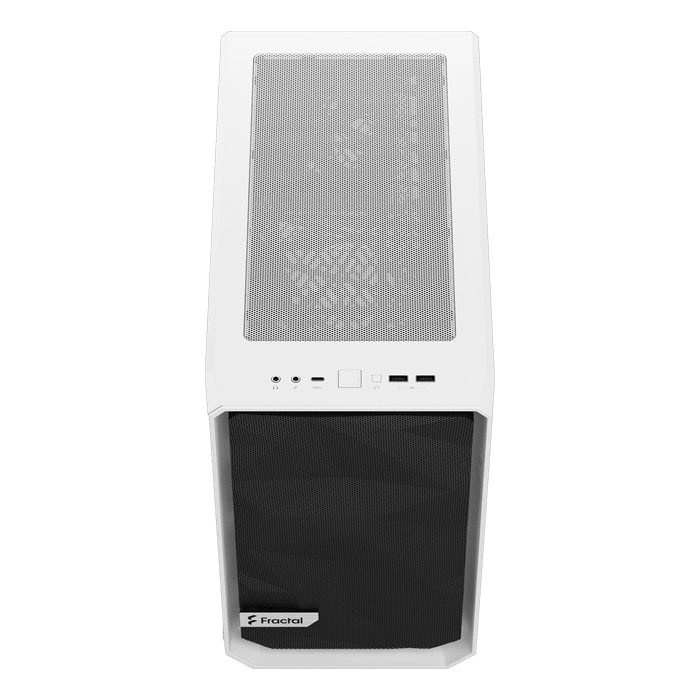

- Three front USB ports including one USB Type-C with fast charging and speeds up to 10Gbps
- Front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Flexible storage option supporting one 3.5” drive and three 2.5’’ drives
- Install up to 6x 120 mm or 3x 140 mm fans
- Pre-installed Dynamic X2 1x 120 mm and 1x 140 mm fans ensure smooth airflow with minimal noise
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
- Bridgeless PCI expansion slots ensure obstruction-free connections for easier installation and hookup
- Ventilated PSU shroud with two-part modular air duct for increased GPU airflow and radiator support

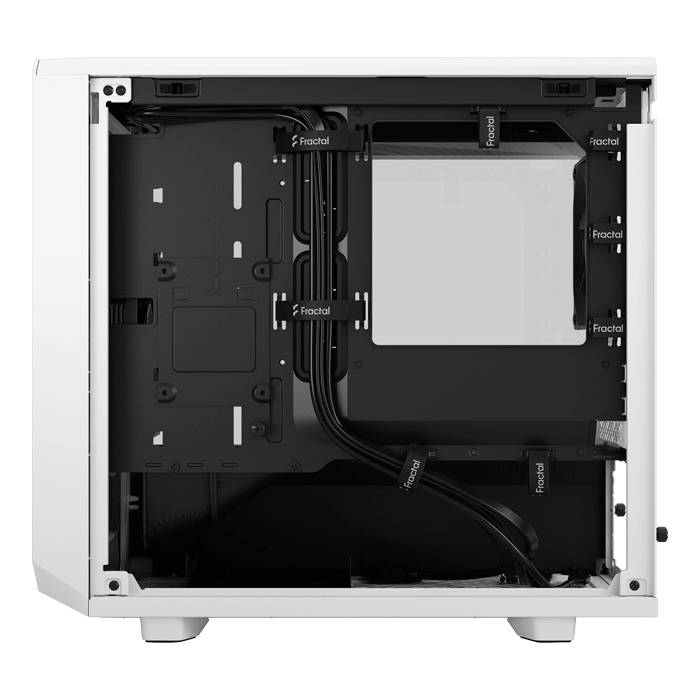

- Integrated cable guides with cable straps further simplify cable management behind the board
| Specifications | |
| 3.5"/2.5" drive mounts | 1 (included) |
| Dedicated 2.5" drive mounts | 3 (2 included) |
| Expansion slots | 2 |
| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 6x 120 mm or 3x 140 mm (Top 140 mm fans needs to be max 15 mm thick) |
| Front fan | 2x 120/140 mm (1x Dynamic X2 GP-14 included) |
| Top fan | 2x 120 or 1x 140 slim fan (max 15 mm thick) |
| Rear fan | 1x 120 mm (1x Dynamic X2 GP-12 included) |
| Bottom fan | 1x 120 mm (requires removal of HDD tray) |
| Dust filters | Top, front and bottom |
| Cable routing space | 15-25 mm |
| Cable routing grommets | Yes |
| Fixed cable straps | Yes |
| Tool-less push-to-lock | Top, front and side panels |
| Captive thumbscrews | SSD and PSU brackets |
| Left side panel | Tempered glass |
| Right side panel | Steel |
| Compatibility | |
| Motherboard compatibility | Mini ITX / Mini-DTX |
| Power supply type | ATX |
| Front radiator | 120/240, 140/280 mm (316 mm max height, 146 mm max width, 280 recommended in “push” configuration for easier fit) |
| Top radiator | N/A |
| Rear radiator | 120 mm |
| Bottom radiator | N/A |
| PSU max length | 165 mm recommended (200 mm without HDD-tray and modular air duct) |
| GPU max length | 331 mm 306 mm with front fan |
| GPU max thickness | 57 mm / 2.8 slot |
| CPU cooler max height | 167 mm |
| Dimensions | |
| Case dimensions (LxWxH) | 396 x 205 x 361 mm |
| Case dimensions w/o feet/protrusions/screws | 384 x 205 x 345 mm |
| Net weight | 5.9kg (TG) |
| Package dimensions (LxWxH) | 412 x 277 x 462 mm |
| Gross weight | 7.1kg (TG) |
| Other | |
| Package contents | Meshify 2 Nano case, User manual, Accessory box |
| SKU | Black TG: FD-C-MES2N-01, White TG: FD-C-MES2N-02 |
| EAN | Black TG: 7340172702627, White TG: 7340172702634 |
| UPC | Black TG: 843276102623, White TG: 843276102630 |
| JAN | Black TG: 4537694278959, White TG: 4537694278966 |
| Warranty | 2 Years |
