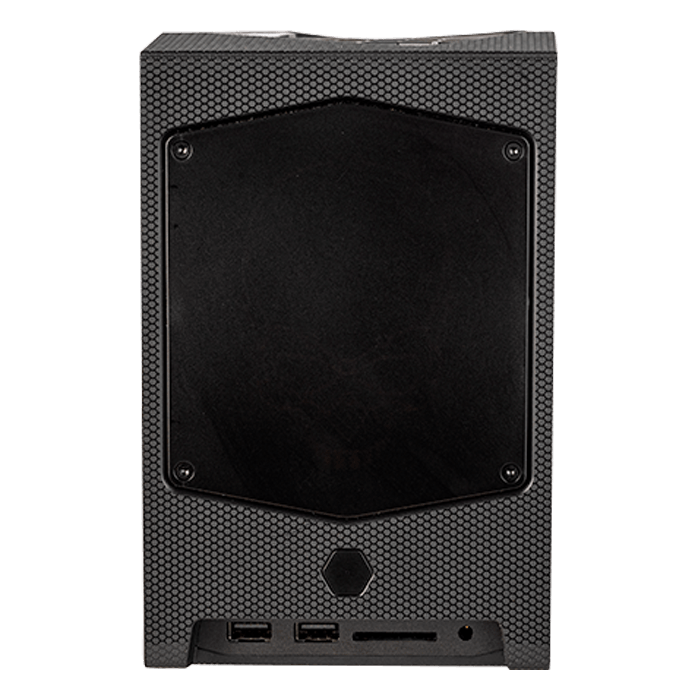

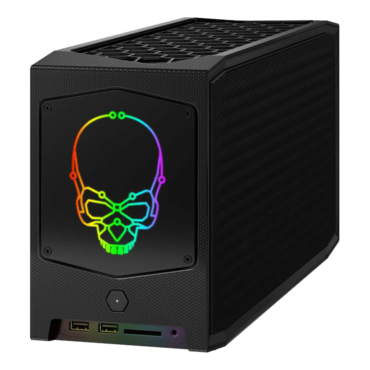

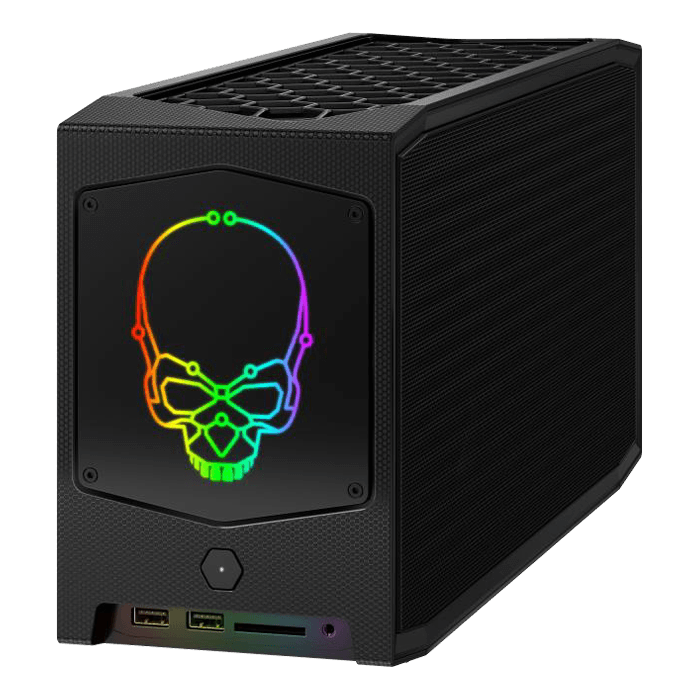

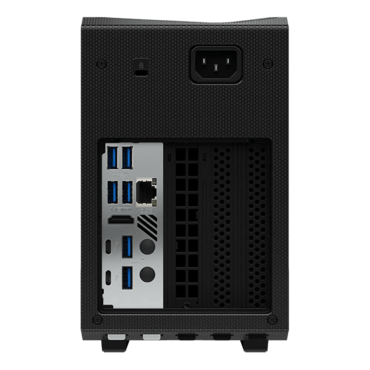

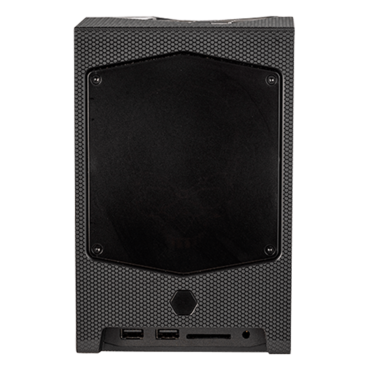

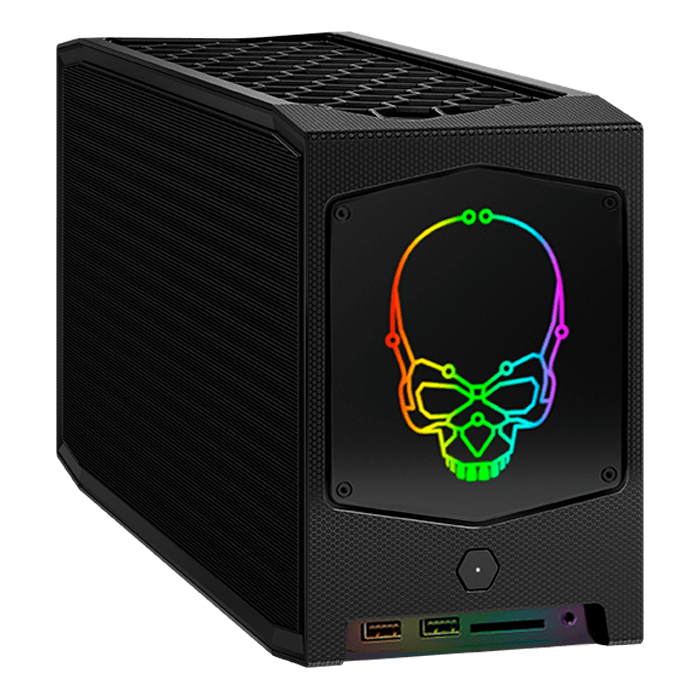

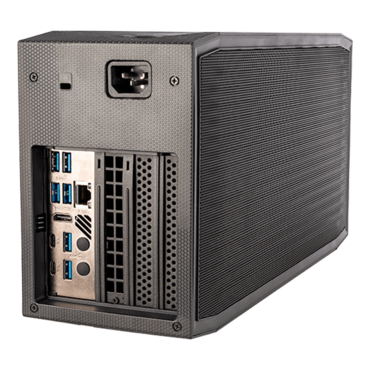

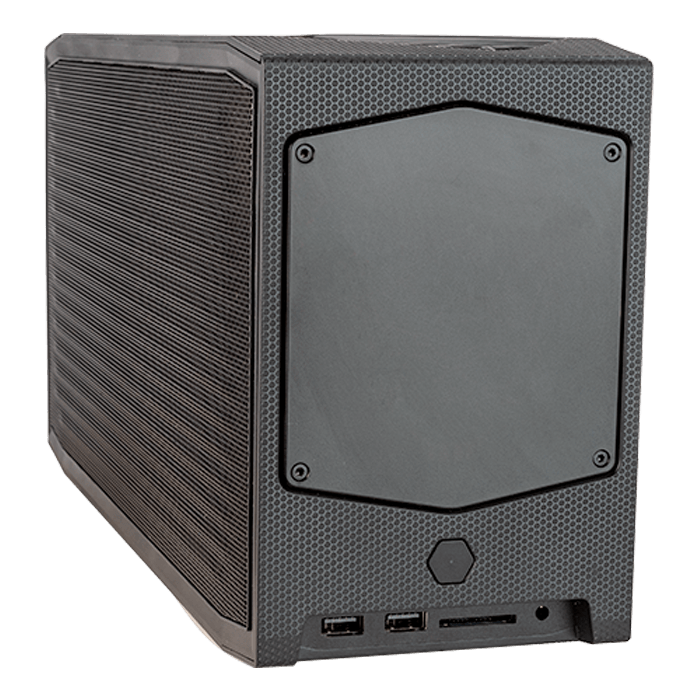

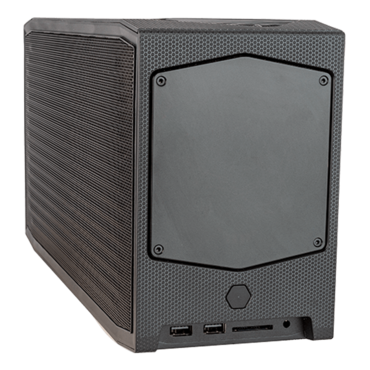

NUC 11 Extreme Kit NUC11BTMi9, Intel® Core™ i9-11900KB, 2x DDR4 SO-DIMM, 4x M.2, Intel® UHD Graphics, Gaming Mini PC Barebone

Quantity:
  • SKU: 14557102
  • Manufacturer: INTEL
  • MPN: RNUC11BTMi90001
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$1,079.49
Quantity:
Essentials
Product Collection Intel® NUC Kit with 11th Generation Intel® Core™ Processors
Code Name Products formerly Beast Canyon
Status Launched
Launch Date Q3'21
Supported Operating Systems Windows 10, 64-bit*
Board Number NUC11DBBi9
Board Form Factor PCIe
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 4
Lithography 10 nm
TDP 65 W
Board Chipset Intel® WM590 Chipset
Processor Included Intel® Core™ i9-11900KB Processor (24M Cache, up to 4.90 GHz)
Intel vPro® Platform Eligibility No
# of Cores 8
# of Threads 16
Processor Base Frequency 3.30 GHz
Max Turbo Frequency 4.90 GHz
Warranty Period 3 yrs
Supplemental Information
Embedded Options Available No
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4 3200MHz 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 51.2 GB/s
Max # of DIMMs 2
ECC Memory Supported No
Processor Graphics
Integrated Graphics Yes
Graphics Output 2x Thunderbolt 4, HDMI 2.0b
# of Displays Supported 3
Discrete Graphics Via PCIe add-in card(s)
Expansion Options
PCI Express Revision Gen4
PCI Express Configurations 2x M.2 PCIe X4 Gen3 slots (PCH), 2x M.2 PCIe X4 Gen4 slots (CPU); Double-wide PCIe X16 Gen4 (CPU) slot, PCIe X4 Gen4 (CPU) slot, 12" max card length
Removable Memory Card Slot SDXC with UHS-II support
M.2 Card Slot (wireless) Intel® Wi-Fi 6E AX210
M.2 Card Slot (storage) 2x via PCH + 2x via CPU (NVMe)
I/O Specifications
# of USB Ports 12
USB Configuration 6x rear USB 3.1g2, 2x Thunderbolt 4 (USB 3.1g2), 2x front USB 3.1g2, 2x USB 3.1 via internal headers, 2x USB 2.0 via internal headers
USB Revision 3.1 Gen2, 2.0
USB 2.0 Configuration (External + Internal) 2x int.
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration 2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel) 7.1 digital; L+R+mic (F)
Integrated LAN Intel® Ethernet Controller i225-LM
Integrated Wireless‡ Intel® Wi-Fi 6E AX210(Gig+)
Integrated Bluetooth Yes
Additional Headers 2x USB2.0, FRONT_PANEL
# of Thunderbolt™ Ports 2x Thunderbolt™ 4
Package Specifications
Chassis Dimensions 357 x 189 x 120mm
Advanced Technologies
Intel® Optane™ Memory Supported Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel vPro® Platform Eligibility No
Intel® Rapid Storage Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Platform Trust Technology (Intel® PTT) Yes
Security & Reliability
Intel® AES New Instructions Yes
