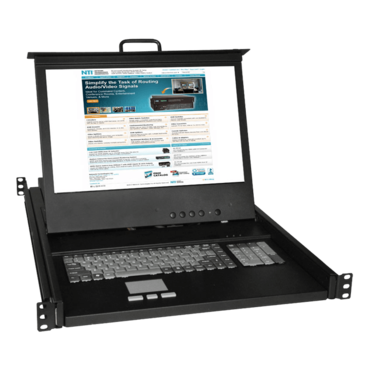

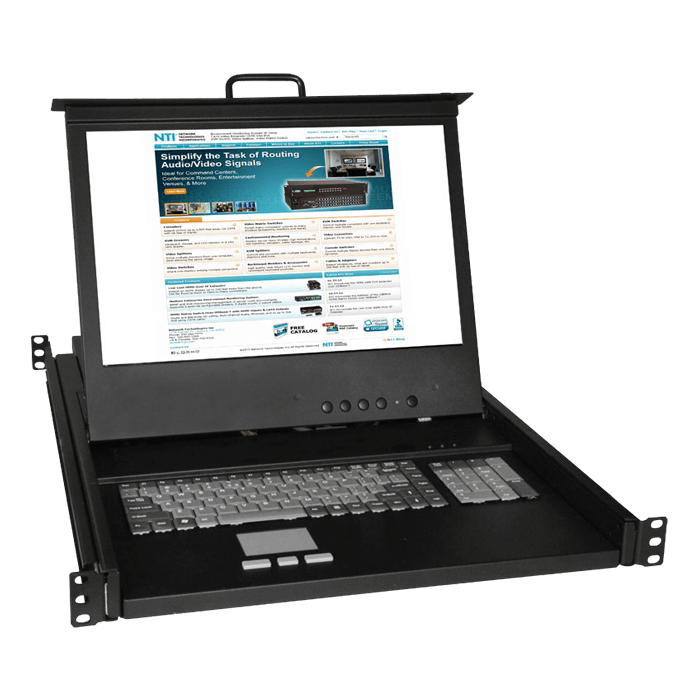

RACKMUX® Rackmount DVI USB + PS/2 KVM Drawer, 17" LCD, Numeric Keypad

Rackmount DVI USB + PS/2 KVM Drawer

The RACKMUX® DVI USB + PS/2 KVM Drawer combines a rackmount LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer. It is available with a 15" or 17" Active Matrix LCD flat panel monitor.

Features & Applications:

• Available with 17" Active Matrix LCD DVI flat panel monitor.
  • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
• Compatible with DVI-enabled USB and PS/2 computers.
• Torque-friction hinges-monitor does not wobble, spring, or slam shut.
• Compact, heavy-duty tactile keyboard.
  • Available with 17-key numeric keypad or large padded wrist-rest.
• Drawer locks into place when open to prevent it from sliding in and out of the rack.
• Available with optional mounting bracket for two-post style telco rack.
• Rugged steel construction with durable powder coat finish.
• LCD auto-shutoff in closed position.
• Internal cable arm provides proper cable management for sliding the drawer open and closed.
• Equipped with On Screen Display (OSD).
• Front panel security lock.
• Front panel USB port to connect an external USB device, such as a flash drive.

Specifications:

• Compatible with PS/2, UNIX and USB-enabled computers.
• Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
• One female DVI-D, one female USB Type B, and two female 6-pin minDIN connectors.
• Use with NTI Multi-Platform KVM Switches to control multiple PC, SUN and MAC computers.

Monitor

• Forward-folding 17" Active Matrix LCD DVI flat panel monitor.
• 1280x1024 video resolution.
• Tilt: up to 120°.
• Frequency:
• Horzontal: 31 to 80 KHz
• Vertical: 55 to 76 Hz.
• OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
• 300 nits brightness.
• 500:1 contrast ratio typical.
• Supports DDC1 and DDC2B protocols.

Devices

• Keyboard available in multiple languages: English (US), English (UK), French, German, Italian, Spanish, Turkish.
• RACKMUX-D17: 83-key (US) or 84-key (UK, French, German, Italian, Spanish) keyboard with wrist-pad.
• RACKMUX-D17-N: 100-key (US) or 101-key (UK, French, German, Italian, Spanish, Turkish) keyboard with numeric keypad.
• Three button touchpad mouse.
• Front panel USB 1.1 port to connect external USB devices.
• Female USB Type A connector.
• KVM drawer must be connected to a USB-enabled computer.

Cables

• 6.5 foot DVI-D male to male single link cable.
• 6-foot USB Type A male to USB Type B male cable included.
• 6-foot dual 6-pin miniDIN male to male keyboard/mouse cable included.
• 6-foot power supply cable included.

Power

• 110 or 220 VAC at 50 or 60 Hz via IEC connector.
• Power Consumption: 30W
• Maximum Inrush Current: 30A

Environmental

• Operating temperature: 32°F to 104°F (0°C to 40°C).
• Storage temperature: -4°F to 140°F (-20°C to 60°C).
• Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

Dimensions

• WxDxH (Inches): 19x23.9x1.75.
• Handle adds an additional 1.5” to the depth when monitor is in closed position.
• Weight: 30.2 lbs.
• Drawer is adjustable to various rack depths from 24" deep to 39" deep.
• Drawer locks into place when open to prevent it from sliding in and out of the rack.
• Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

Regulatory Approvals

• CE, RoHS

Warranty

• Two years
