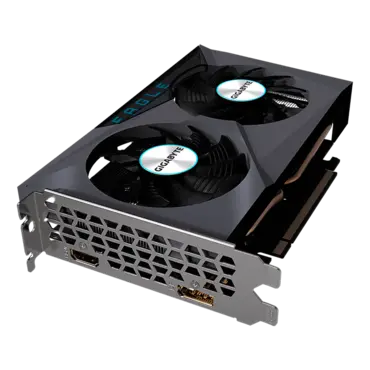

GIGABYTE Radeon™ RX 6400 EAGLE 4G (GV-R64EAGLE-4GD). WINDFORCE 2X COOLING SYSTEM. The WINDFORCE 2X cooling system features two unique blade fans, alternate spinning, composite copper heat pipes, copper plate and 3D active fan, which together provide high efficiency heat dissipation.
FEATURES
CORE CLOCK
Graphics Processing | Radeon™ RX 6400 |
Core Clock |
Boost Clock* : up to 2321 MHz Game Clock* : up to 2039 MHz |
Stream Processors | 768 |
Process Technology | 6 nm |
Memory Clock | 16000 MHz |
Memory Size | 4 GB |
Memory Type | GDDR6 |
Memory Bus | 64 bit |
Memory Bandwidth (GB/sec) | 128 GB/s |
Card Bus | PCI-E 4.0 |
Digital max resolution | 7680x4320 |
Multi-view | 2 |
Card size | L=192 W=117 H=38 mm |
PCB Form | ATX |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Recommended PSU | 350W |
Power Connectors | N/A |
Output |
DisplayPort 1.4 *1 HDMI 2.1 *1 |
Accessories | Quick guide |
Note |
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:
thermal conditions and variation in applications and workloads. * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
