Radeon™ RX 6500 XT OC TUF-RX6500XT-O4G-GAMING, 2705 - 2685MHz, 4GB GDDR6, Graphics Card

Quantity:
  • SKU: 14731439
  • Manufacturer: ASUS
  • MPN: TUF-RX6500XT-O4G-GAMING
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$232.61
Quantity:
Radeon™ RX 6500 XT OC TUF-RX6500XT-O4G-GAMING, 2705 - 2685MHz, 4GB GDDR6, Graphics Card

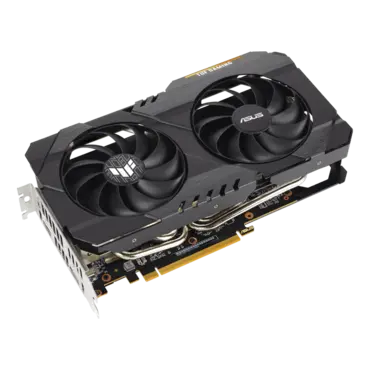

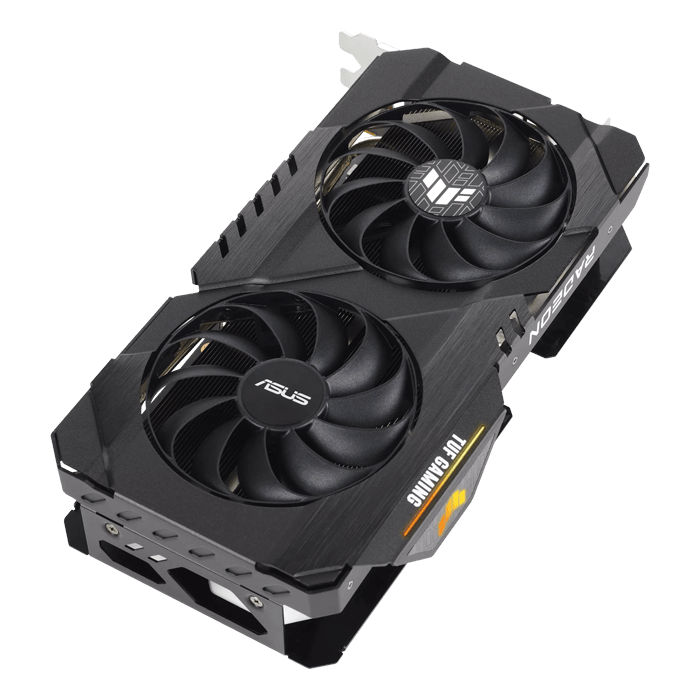

The TUF Gaming Radeon™ RX 6500 XT is a tenacious beast with a tough metal exterior, efficient cooling, and components that offer enhanced endurance. An all-metal shroud houses two powerful axial-tech fans with dual ball fan bearings. Underneath, a thick heatsink keeps thermals under tight control and TUF components, selected for maximum durability and performance, keep the card ahead of the pack. You asked for a mean machine... this one is ready for action.

  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a slimmed down barrier ring that provides better airflow through the cooling array.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
  • A 2.7-slot design expands cooling surface area to make the most of the powerful Axial-tech fans.
  • An all-aluminum shroud and metal backplate enhance durability.
  • A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
  • A vented backplate prevents hot air from recirculating through the cooling array.
Graphic Engine Radeon RX 6500 XT
Bus Standard PCI Express 4.0
OpenGL OpenGL®4.6
Video Memory 4GB GDDR6
Engine Clock OC mode: up to 2825 MHz(Boost Clock)/ up to 2705 MHz(Game Clock)
Gaming mode: up to 2825 MHz(Boost Clock)/ up to 2685MHz(Game Clock)
Stream Processors 1024
Memory Interface 64-bit
Resolution Digital Max Resolution 7680 x 4320
Interface Yes x 1 (Native HDMI 2.1)
Yes x 1 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support 2
NVlink/ Crossfire Support Yes
Accessories 1 x Collection Card
1 x Speedsetup Manual
Software ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions 250 x 147 x 54 mm
9.76 x 5.78 x 2.12 inch
Recommended PSU 500W
Power Connectors 1 x 6-pin
Slot 2.7 Slot
Note * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Crossfire Support for DirecX® 12 and Vulkan®
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock ach
