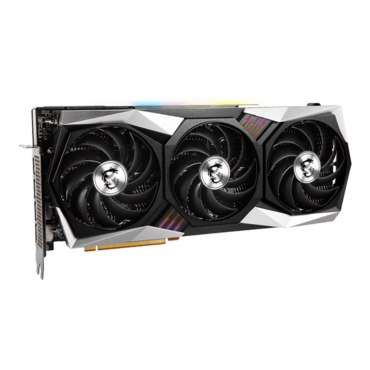

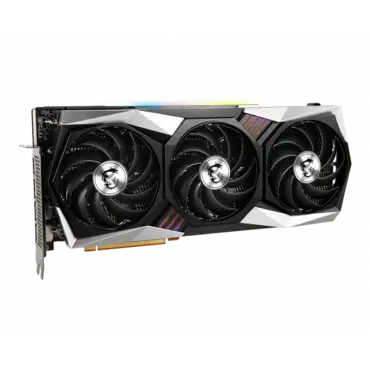

Radeon™ RX 6950 XT GAMING X TRIO 16G, 2244 - 2454MHz, 16GB GDDR6, Graphics Card

  • SKU: 14947886
  • Manufacturer: MSI
Starting At
Radeon™ RX 6950 XT GAMING X TRIO 16G, 2244 - 2454MHz, 16GB GDDR6, Graphics Card

The new AMD Radeon™ RX 6950 XT graphic cards are optimized for DirectStorage to help reduce load times in games and bring expansive worlds to life in amazing detail. The Radeon™ RX 6000 Series graphic cards take full advantage of the latest innovations in upscaling technologies such as AMD FidelityFX™ Super Resolution2 or the new Radeon™ Super Resolution1. Whether it is AAA gaming or eSports, experience all your games without compromise.

Boost Clock / Memory Speed

  • Up to 2324 MHz / 18 Gbps
  • 16GB GDDR6
  • DisplayPort x 3 (v1.4a)
    HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

TRI FROZR 2 Thermal Design

  • TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
  • Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
  • Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

RGB Mystic Light

  • Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.

MSI Center

  • The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Model Name Radeon™ RX 6950 XT GAMING X TRIO 16G
Graphics Processing Unit Radeon™ RX 6950 XT
Interface PCI Express® Gen 4
Core Clocks Boost: Up to 2454 MHz
Game: Up to 2244 MHz
Memory Speed 18 Gbps
Memory 16GB GDDR6
Memory Bus 256-bit
Output DisplayPort x 3 (v.1.4a)
HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1)
HDCP Support Y
Power consumption 340 W
Power Connectors 8-pin x 3
Recommended PSU (W) 850 W or greater
Card Dimension(mm) 325 x 140 x 55mm
Weight (Card / Package) 1605 g / 2434 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
VR Ready Y
Digital Maximum Resolution 7680x4320
