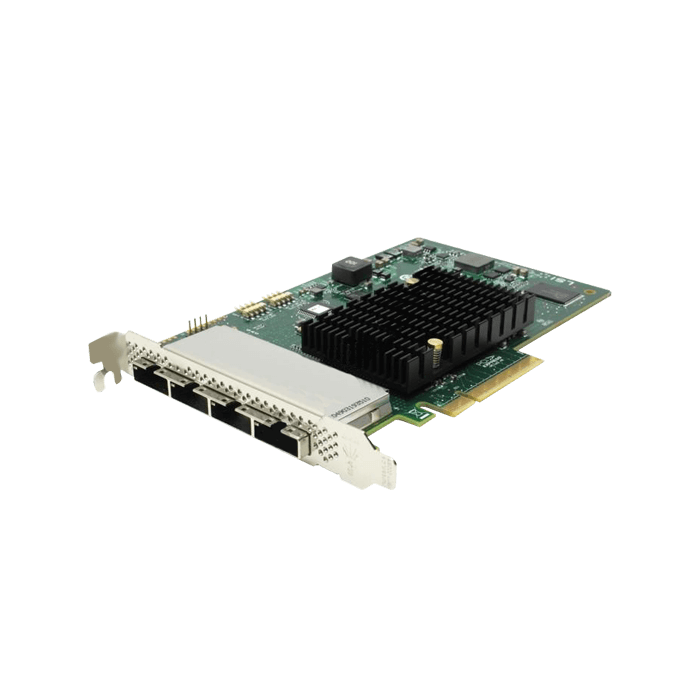

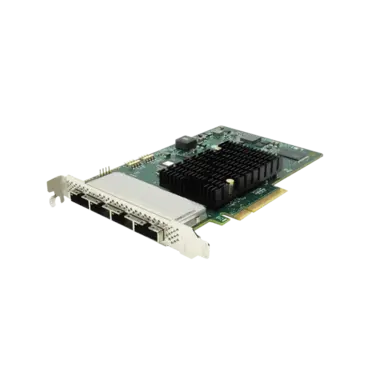

SAS 9201-16e, SAS 6Gb/s, 16-Port, PCIe 2.0 x8, Host Bus Adapter
When working with heavy datasets or tiered storage applications, driving massive external storage arrays is required. The BROADCOM® SAS 9201-16e 6Gb/s SAS HBA supports multi-terabyte external arrays so storage capacity can scale to support the needs of users and applications.
Product
Manufacturer Part #
Ordering Part #
What's in the Box
SAS 9201-16e
H5-25379-00
LSI00276
SAS 9201-16e, QIG, Driver & Documentation CD (Cables not included)
Lifecycle
Active
Host Bus Type
x8 lane PCI Express® 2.0
Physical Dimensions
Full Height (4.2” x 6.6”)
Devices Supported
512 Non-RAID SAS/SATA devices
External Connectors
4 Mini-SAS SFF8088
Fusion MPT Support
Fusion MPT™ 2.0
Operating Temperature
0°C to 55°C
Operating Voltage (V)
+12V +/-8%, 3.3V +/-8%
OS Support
Microsoft Windows®, Linux® (SuSE , Red Hat), Solaris®, VMware®, FreeBSD
PCI Power
17W Typical (Airflow min 200 LFM)
Cable Support
Passive Copper, Active Copper
I/O Controller
LSI SAS2116
MTBF
> 2,000,000 hours
Operating Humidity
5% to 90% Non-condensing
Brackets
Full height
Regulatory Certifications
Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), RoHS, Safety: EN60950, WEEE
Warranty
3 years, free advanced technical support and advanced replacement option
Data Transfer Rates
6Gb/s SAS-2 Compliant
