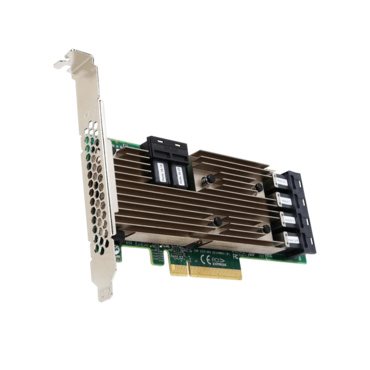

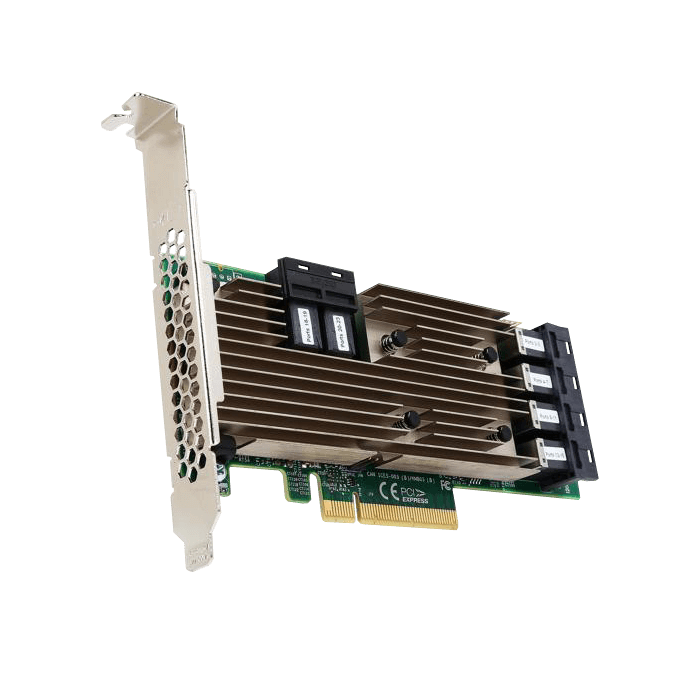

SAS 9305-24i SAS 12Gb/s PCIe 3.0 24-Port Host Bus Adapter

  • SKU: 11112436
  • Manufacturer: Broadcom
  • MPN: 05-25699-00
Starting At
Lifecycle Active
Host Bus Type x8 lane PCI Express® 3.0
Devices Supported 1024 Non-RAID SATA/SATA devices per controller
Internal Connectors 6 Mini-SAS HD SFF8643
Internal Ports 24
Operating Temperature 0°C to 55°C
Operating Voltage (V) +12V +/-8%, 3.3V +/-9%
OS Support Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical
PCI Power Typical: 16.2W
Cable Support Passive Copper, Active Optical
Operating Humidity 5% to 90% Non-condensing
Brackets Full height and low profile
Regulatory Certifications Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), RoHS, Safety: EN60950, WEEE
Warranty 3 years, free advanced technical support and advanced replacement option
Data Transfer Rates 12Gb/s SAS-3 Compliant
