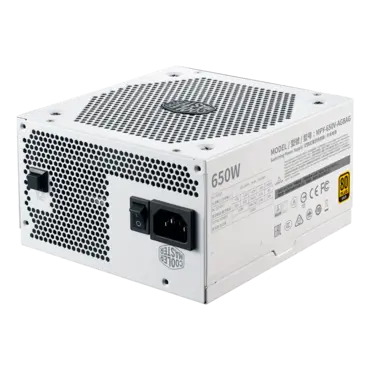

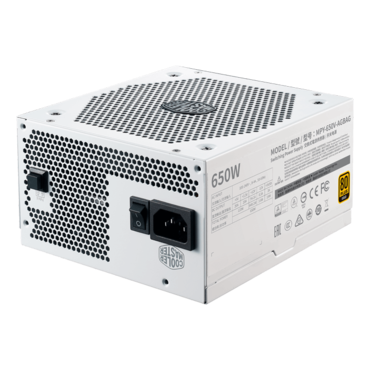

V650 GOLD-V2 WE, 80 PLUS Gold 650W, Fully Modular, ATX Power Supply

SKU: 13589326

Manufacturer: COOLER MASTER

MPN: MPY-650V-AGBAG

Availability: Available


Price: $125.89
or as low as $4/month
Quantity:

COOLER MASTER V650 GOLD-V2 WE (MPY-650V-AGBAG). The V Gold - v2 series delivers a top-shelf power supply unit in 550, 650, 750, and 850 wattage levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, optional semi-fanless operation with a hardware based hybrid switch, a 135mm FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. This series has brought together a number of innovations and improvements from past products to form a PSU that meets all your needs. The 100% Japanese capacitors, half-bridge LLC resonant converter, and DC-DC circuitry work together, resulting in a product that even the pros can respect.

  • 80 Plus Gold Certified
  • Half-bridge LLC Resonant Converter And DC-DC Technology
  • Silent 135mm FDB Fan
  • 40% Semi-fanless Mode With Hybrid Switch
  • 16AWG PCIE Cables
  • 10 Year Warranty
MODEL MPY-650V-AGBAG
ATX VERSION ATX 12V V2.52
PFC Active PFC
INPUT VOLTAGE 100-240V
INPUT CURRENT 9-4.5A
INPUT FREQUENCY 50-60Hz
DIMENSIONS (L X W X H) 160 x 150 x 86 mm
FAN SIZE 135mm
FAN BEARING FDB
FAN SPEED 1500 RPM
NOISE LEVEL @ 20% 0 dBA
NOISE LEVEL @ 50% 18.3 dBA
NOISE LEVEL @ 100% 32.1 dBA
EFFICIENCY 90% @ Typical Load
80 PLUS RATING 80 PLUS Gold
ERP 2014 LOT 3 Yes
OPERATING TEMPERATURE 0-50°C
POWER GOOD SIGNAL 100-500ms
HOLD UP TIME 17ms
MTBF >100,000 Hours
PROTECTIONS OVP, OPP, SCP, OCP, UVP, OTP
REGULATORY CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
ATX 24-PIN CONNECTORS 1
EPS 4+4 PIN CONNECTORS 1
EPS 8 PIN CONNECTOR 1
SATA CONNECTORS 8
PERIPHERAL 4-PIN CONNECTORS 4
FDD CABLE 4-PIN CONNECTORS 1
PCI-E 6+2 PIN CONNECTORS 4
SERIE V Gold Series
80 PLUS Gold
MODULAR Full Modular
WATTAGE 500 to 750W
