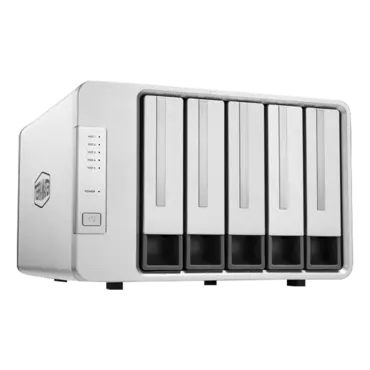

D5-300C The Exclusive 2+3 RAID Configuration, 5-bay, RAID Storage for Home/SOHO

Quantity:
  • SKU: 15103434
  • Manufacturer: TerraMaster
  • MPN: D5-300C
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$219.99
Quantity:
D5-300C The Exclusive 2+3 RAID Configuration, 5-bay, RAID Storage for Home/SOHO

Exclusive 2+3 RAID Storage

The D5-300C provides 2+3 RAID storage. This means that hard drive1 and hard drive 2 can be configured as RAID 0, RAID 1 or single disk to secure your important data. The remaining drives 3 through 5 work as single, independent drives. This allows you maximum flexibility in utilizing these three drives.

Real SUPERSPEED with USB3.0 Protocol!

D5-300C adopts USB3.0(5Gbps) SUPERSPEED protocol. In RAID 0, with desktop SSHD hard drives, the read/write speed is up to 410MB/s.

USB Type-C interface

D5-300C equipped with brand new USB type-C SUPERSPEED interface and compatible with Mac and Windows computers.

Storage
Disk Slot Number 5
Compatible Disk Types 3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
File System FAT 32, FAT 16, NTFS, and EXT4
Maximum Internal Raw Capacity 100TB (20 TB drive x 5) (Capacity will vary along with the RAID type)
RAIDs Supported SINGLE DISK,RAID 0,RAID 1
Hardware RAID
RAID Manager Software /
RAID Manager Software Language /
RAID Online Expansion /
RAID Migration /
RAID Auto-rebuilding RAID 1
Drive Hot Swap
HDD Sleep
HDD S.M.A.R.T. Inspection /
Sector Inspection and Parity Check /
SSC Cache /
Daisy Chain /
HDD NCQ Technology /
Alert Notice /
Event Log /
External Ports
USB USB3.1 Type-C gen1 x 1
Thunderbolt /
DP Interface /
Power Socket DC IN 12V
Reading/writing Speed (max.)
Reading Speed (max.) Read:410MB/s (2 SSHD RAID0 mode)
Writing Speed (max.) Write:400MB/s (2 SSHD RAID0 mode)
Appearance
Size (H*W*D) 227 x 225 x 136 mm
Packaging Size (H*W*D) 300 x 275 x 186 mm
Weight  net weight: 2.1 Kg Gross Weight: 3.5Kg
Others
System fan 80 mm x 80 mm x25mm (x 2)
Fan mode Smart
Noise Level 19.8dB(A)
Power Supply
Power Supply  90W
AC Input Voltage 100V to 240V AC
Current Frequency 50/60 HZ, Single Phase
Power Consumption 45.6W(Access)
Environment Temperature
Working Temperature 5°C ~ 40°C (40°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity 5% ~ 95% RH
Supported OS Windows OS?Mac OS
Warranty 2 years
Certificate CE, FCC, CCC, KC
Environment RoHS compliance
Package Contents: Host unit (x1)
Power cord (x1)
USB Cable A to Type-C(10Gb) (x1)
Quick Installation Guide (x1)
Power adapter (x1)
Screws (several)
Limited Warranty Note x 1
