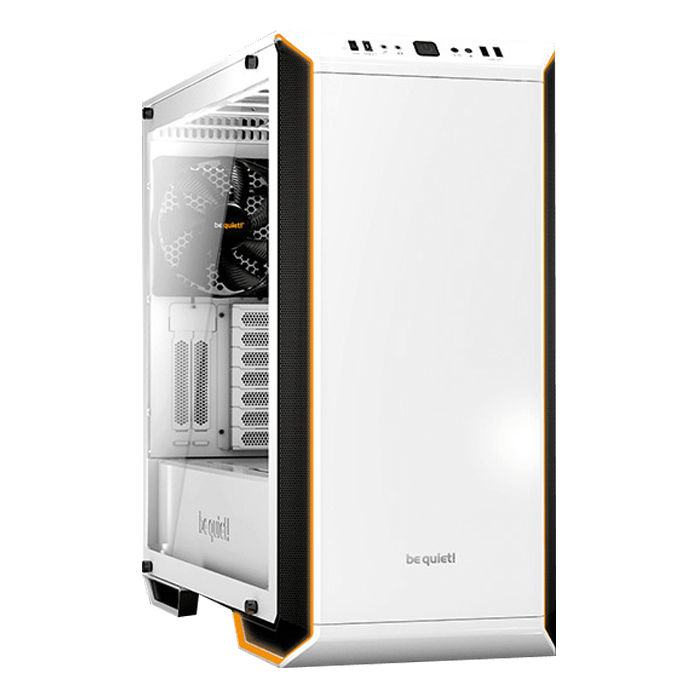

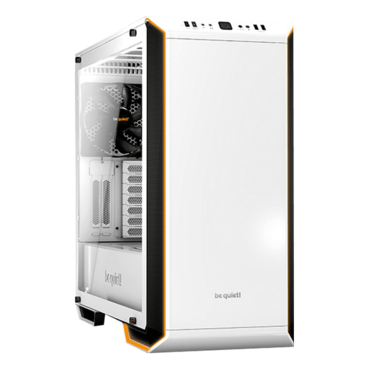

Dark Base 701, Tempered Glass, No PSU, E-ATX, White, Mid Tower Case

Quantity:
  • SKU: 17124010
  • Manufacturer: be quiet!
  • MPN: BGW59
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$239.90
Quantity:
General data
Model Dark Base 701 White
Color option White
Motherboard compatibility E-ATX (30.5 x 27.5cm), ATX, M-ATX, Mini-ITX
Case size excl. stands (L x W x H), (mm) 565 x 249 x 495
Case size incl. stands (L x W x H), (mm) 565 x 249 x 523
Volume (l) 69.64
PSU form factor ATX PS/2
Weight (kg) 12.8
Expansion slots 7 + 3
Pre-installed fans
Fan at top 1x4 140mm PWM high-speed
Fan at front 1x4 140mm PWM high-speed
Fan at side -
Fan at rear 1x4 140mm PWM high-speed
Fan at bottom -
Dimensions (L x W x H), (mm) Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm) 1900
Airflow at 100% PWM / 12V (CFM /m3/h) 78.4 / 133.2
Air Pressure at 100% PWM / 12V (mm H2O) 2.36
Noise level at 100%>PWM / 12V (dB(A)) 29.3
Voltage range (V DC) 12
Input power (W) 4.8
Input current (A) 0.4
Connector 4-pinPWM
Lifespan (h / 25°C) 300,000
Fan controller PWM and ARGB Hub
Maximum fan installation
Maximum fans 8
Top (mm) 3x 140 / 3x 120
Front (mm) 3x 140 / 3x 120
Side (mm) -
Rear (mm) 1x 140 / 1x 120
Bottom (mm) 1x 140 / 1x 120
PSU shroud -
Optional radiator installation
Top (mm) 120 / 140 / 240 / 280 / 360
Front (mm) 120 / 140 / 240 / 280 / 360
Side (mm) -
Rear (mm) 120
Bottom (mm) -
PSU compatibility
Maximum dimensions excl. bottom fan (mm) 250
Maximum dimensions incl. bottom fan (mm) 250
Graphics card
HDD cage (in height of graphics card) installed (mm) 430
HDD cage (in height of graphics card) removed (mm) 430
Maximum PCIe slots with vertical graphics card (pcs.) 3
Drive bay capacity
5.25 bays (pcs.) -
3.5 slots (scope of delivery) 3
3.5 slots (max.) 5
2.5 slots (scope of delivery) 2
2.5 slots (max.) 3
Cooling
Max.construction height of CPU cooler unit (mm) 185
Airflow channel Front / Top / Rear / Bottom
Lighting
LED illumination
LEDs (pcs.) 48
LED type ARGB - 5V
LEDs synchronizable with controller/motherboard

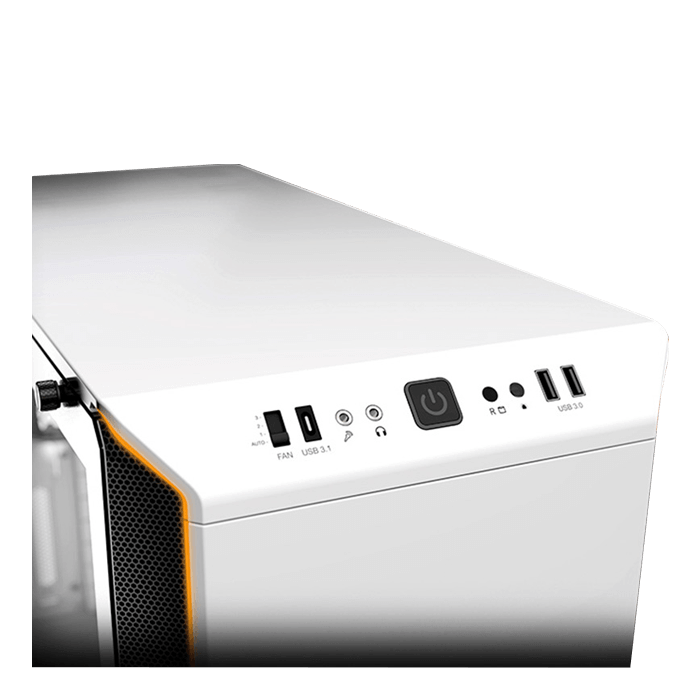

I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
USB 2.0 -
HD Audio I/O Mic + Audio
Qi charger / Quick Charging Option -
Insulation and damping
Top panel insulation mats -
Front panel insulation mats -
Side panel insulation mats
Anti-vibration decoupled HDD
Anti-vibration decoupled fan
Anti-vibration decoupled PSU
Anti-vibration decoupled motherboard-tray
Removeable dust filters
Top -
Front 1
Side -
Bottom 1
Material
Top cover Steel
Front panel Steel
Side panel Glas
Side panel window Tempered glass
Stands ABS
Safety certification
Approvals CE, UKCA
Environmental directives
RoHS
Reach
WEEE
Triman
Scope of delivery
Screw set (Drives/Motherboard)
Additional standoffs (pcs.) 1 (for E-ATX)
SSD bracket for PSU shroud -
LED strips (pcs.) -
Cable ties (pcs.) 9 (Velcro)
Screw box -
VGA holder -
VGA holder for inverted layout -
Mesh Front Panel
ODD Bracket -
Fan / Radiator bracket for multi mounting panel -
