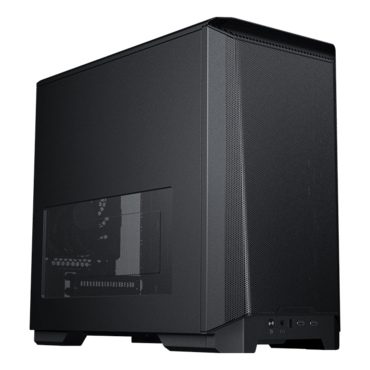

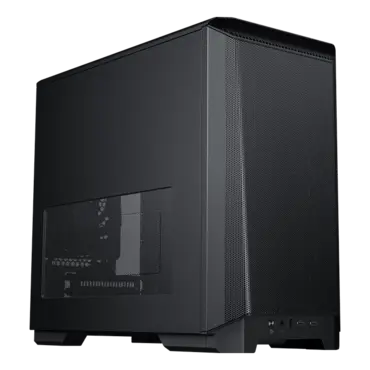

The Eclipse P200A PH-EC200AC_BK01
Is a high airflow mini-ITX chassis featuring the Ultra-fine Performance Mesh to bring the highest cooling performance.
The open interior offers plenty of space for standard ATX power supplies, triple slot Graphics Cards and plenty of 240/280 radiator options in the front and side of the chassis.
The Eclipse P200A makes building a powerful yet compact ITX system a breeze.
Brand | Phanteks |
---|---|
Model | PH-EC200AC_BK01 |
Type | Mini-ITX Tower |
Color | Black |
Case Material | Steel Chassis |
With Power Supply | No |
Power Supply Mounted | Top |
Motherboard Compatibility | Mini-ITX / Mini-DTX |
Side Panel Window | No |
Dust Filters | Bottom |
Internal 3.5" Drive Bays | 4 (Stackable 3.5" Bracket sold separately) |
Internal 2.5" Drive Bays | 4 (4x included) |
Expansion Slots | 3 |
Front Ports | 2 x USB 3.0 / Microphone&Headphone / Reset Button / Power Button |
Fan Options |
Front: 2 x 120mm fan (2 x 120mm fan pre-installed) / 2 x 140mm fan Side: 2 x 120mm fan Rear: 1 x 120mm fan Bottom: 2 x 120mm fan |
Radiator Options | Front - Up to 280mm / Rear - Up to 120mm / Side - Up to 240mm |
Max GPU Length | 355 mm |
Max CPU Cooler Height | 165 mm |
Max PSU Length | 205mm (190mm recommended) |
Dimensions (H x W x D) | 14.37" x 8.07" x 15.75" |
Weight | 12.00 lbs. |
Package Content |
1 x Eclipse P200A case 2 x 2.5" SSD Covers 1 x SSD bracket (for 2 x 2.5" SSD) 2 x SK 120mm PWM fan Black 6 x Zip Ties 1 x Vertical GPU mount 1 x Accessory Bag with neccessary screws and standoffs |
