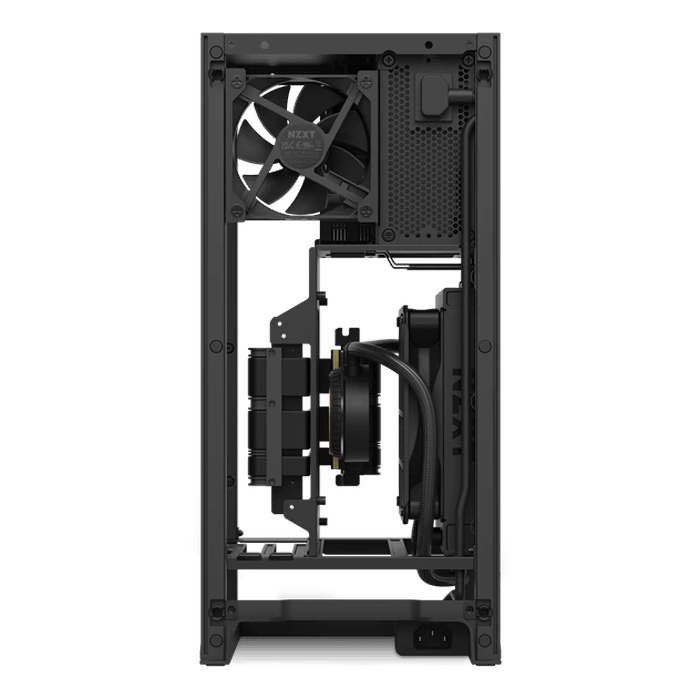

H1 Tempered Glass, 750W PSU, AIO, Mini-ITX, Matte Black, Mini Tower Case

Quantity:
  • SKU: 14806592
  • Manufacturer: NZXT
  • MPN: CS-H11BB-US
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$449.63
Quantity:
H1 Tempered Glass, 750W PSU, AIO, Mini-ITX, Matte Black, Mini Tower Case

The H1 allows you to get the most out of a small package. Pre-routed cables, a 750W PSU, support for the latest GPUs, and PCIe Gen 4 make the build powerful and simple.

  • 140mm AIO liquid cooling
  • NZXT CAM enabled fan controller
  • SFX 750W Gold PSU included
  • Chassis size accommodates latest NVIDIA 30 series & AMD 6000 series graphics cards
  • Pre-routed cables and downward-facing motherboard I/O for a clean, simplified appearance.
  • PCIe 4.0 Extender supporting maximum 25Gbps high-speed transmission
Key Specs
  • Motherboard Support Mini-ITX
  • Case Material SGCC Steel, Tempered Glass
Dimensions
  • Height 405 mm / 15.9 inches
  • Width 196 mm / 7.7 inches
  • Depth 196 mm / 7.7 inches
  • Weight 7.6 kg / 16.7 lb
Compatibility & Clearance
  • Max GPU Clearance 324mm
  • Max GPU Thickness 58mm
  • Memory Height 46mm
Front I/O Ports
  • USB 3.2 Gen 1 Type-A 2
  • USB 3.2 Gen 2 Type-C 1
  • Headset Audio Jack 1
Expansion Slots
  • Standard 2
Drive Bays
  • 2.5" 2
  • 3.5" -
Compatible Socket & CPU
  • Intel Socket LGA 1700, 1200/115X
  • AMD AMD Socket AM4
Radiator
  • Dimensions 139 x 174 x 28 mm
  • Material Aluminum
Pump
  • Dimensions (D x H) 65 x 26 mm
  • Motor Speed 4200 ± 10%RPM
  • Power 12V DC, 0.35A
Fan Controller
  • Channel 2
  • Controller Method PWM Control
  • Input 12V DC
  • Output 12V DC
Fan Specs
  • Model Aer P140mm PWM fan
  • Quantity 1
  • Speed 500 - 1,800 ± 300RPM
  • Airflow 27.27 - 98.17 CFM
  • Static Pressure 0.21 - 2.71 mm-H?O
  • Noise 21 - 38 dBA
  • Fan Connector 4-pin
Fan Specs
  • Model RF-92RC1-B1
  • Quantity 1
  • Speed 600 - 1800 ± 200 RPM
  • Airflow 28.64 CFM
  • Static Pressure 1.1 mm-H?O
  • Noise 23 dBA
  • Fan Connector 4-pin
Power Supply Specs
  • Model PS-7G1B
  • Form Factor SFX
  • Modular Full
  • Wattage 750W
  • Compliance Standard "Complies with SFX12V v3.42 ATX12V v2.52 & EPS12V v2.92"
  • Energy Efficiency 80 Plus Gold
  • Fan 92mm FDB Silent Fan
  • MTBF 100,000 hours at 25°C. excluding the DC Fan.
  • Protection OPP, OVP, UVP, OCP, OTP, SCP
PCIe Extender Cable
  • Form Factor X16
  • Compatibility PCIe 4.0 Compatible
  • Cable Length 330 ± 5 mm
General
  • Warranty 3 years on case, riser card, and AIO 10 years on PSU
  • Model Number CS-H11BB (Black)
EAN
  • EAN (US) 5060301699308
UPC
  • UPC (US) 815671018892
