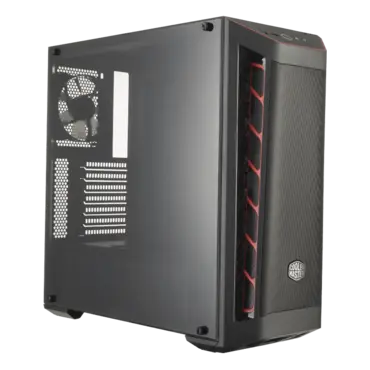

MasterBox MB511, Acrylic Side Panel, No PSU, ATX, Black/Red, Mid Tower Case

Quantity:
  • SKU: 12391964
  • Manufacturer: COOLER MASTER
  • MPN: MCB-B511D-KANN-S00
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$77.21
Quantity:

MASTERBOX MB511

  • Mesh Front Panel
  • Aggressive Intakes
  • Edge-To-Edge Transparent Side Panel
  • Support for a Total of 6 Fans and Water Cooling
  • Graphics Card Support Up to 400mm
  • Multiple Trim Colors Available
Product Name MasterBox MB511
Model number MCB-B511D-KANN-S00 (Red)
Available Color Black
*partial region on front panel: Red
Materials Steel, Plastic
Dimensions (L x W x H) 496 x 217 x 469 mm
Motherboard Support ATX (up to 272mm width), Micro-ATX, Mini-ITX
Expansion Slots 7
5.25" Drive Bays No
Combo 3.5"/2.5" Drive Bays 2 (Max. 2)
SSD Drive Bays 5 (Max. 6)
I/O Panel USB 3.0 x 2, Audio In / Out
Pre-installed Fan(s) Rear: 120mm x 1
Fan Support Top: 120mm x 2 / 140mm x 2
Front: 120mm x 3 / 140mm x 2
Rear: 120mm x 1
Liquid Cooling Support Front: 120 / 140 / 240 / 280 / 360mm radiator. (75mm clearance)
Top: 120 / 240mm
Rear: 120mm
Clearances CPU Cooler: 165mm / 6.49"
PSU: 180mm / 7.08"
GFX: 410mm / 16.10"
Cable Routing Behind MB Tray: 19mm / 0.74"
Dust Filters Front, Top, Bottom
Power Supply Support Bottom mount, ATX
EAN Code 4719512072226 (MCB-B511D-KANN-S00, Red)
UPC Code 884102044724 (MCB-B511D-KANN-S00, Red)
