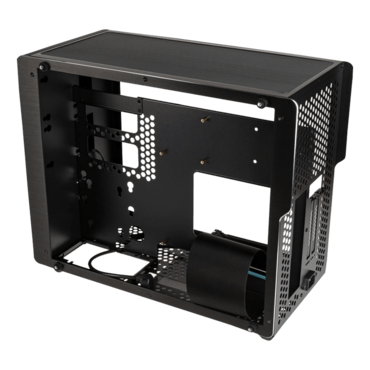

OPHION M EVO Tempered Glass, No PSU, Mini-ITX, Black, Mini Tower Case
- SKU: 14389895
- Manufacturer: RAIJINTEK
- MPN: 0R20B00135
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

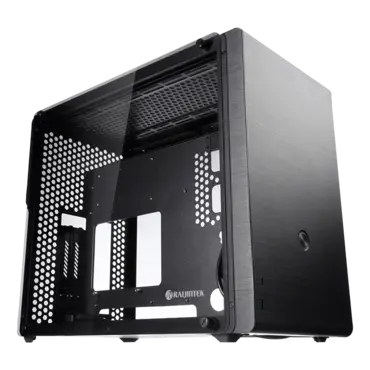

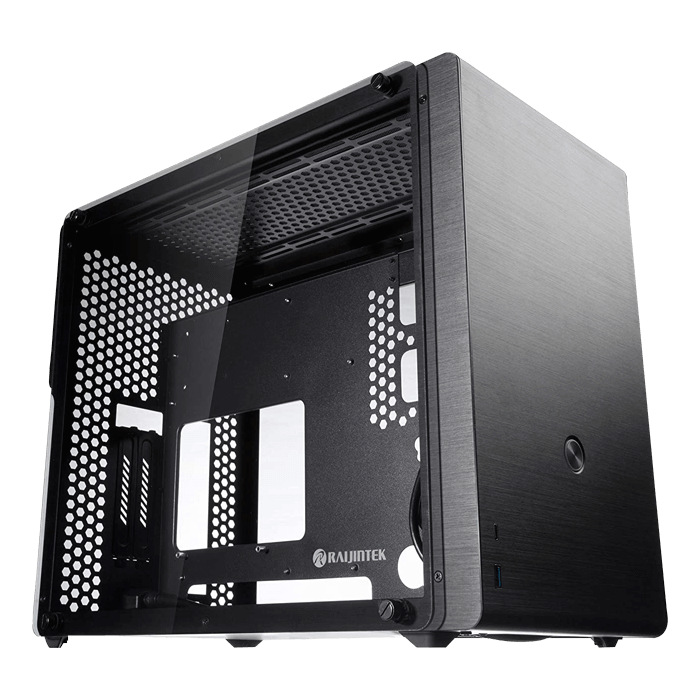

OPHION M EVO
Design Art in its best by RAIJINTEK (0R20B00135) – New SFF chassis of OPHION series. The OPHION series case is designed to fulfil a smallest case built with max. Possibility high-end, gaming and standard components, such as Intel i9/i7, AMD AM4/TR4 CPU, and especially powerful full –length VGA card, RTX2080. OPHION M EVO case supports up to M-ATX motherboard, Amazing compatibility of maximum three fans including 2*12025 or 2*14025 or 2*20030 fans on top, 1*12015 fan or 1*14025 or 1*20030 fans at bottom. Not only cooling from fans, it also support DIY component such as 120/140/240/280/360 28mm thickness radiator and also enough space for pump and reservoir as well. OPHION M EVO Superior features includes elegant Alu. Hair-silk front panel, 3.5”*3 HDD or 2.5”*5 HDD/SSD, full-length VGA card compatibility, tool-free for the easy installation, ATX / EPS PSU compatibility. Looking for a best of best? OPHION M EVO is the one for Gamers and SFF DIY water cooling enthusiasts.
- Support Micro-ATX / Mini ITX
- 2mm aluminum & 0.8mm SPCC solid iron
- Matte full black coating
- 3.0mm tempered glass side panel
- Water radiator support up to 120/240/280/360, 28mm thick water radiator
- Super air flow, support up to 3Ă—200mm fans in total (2Ă—20030 fans at top, 1Ă—20030 fan in bottom)
- Support up to 410mm full-length graphic cad
- Maximum CPU cooler height up to 82mm
- Capable of install motor/water tank to achieve real /DIY water loop system
- Magnetic dust filter for both top & bottom
| Product Name | OPHION M EVO TGS |
| Product Number | 0R20B00135 |
| Dimension [W×D×H] | 231×453×365 mm |
| Weight | 5.89 kg [N.W.] 6.37 kg [G.W.] |
| Material | Aluminum 2.0mm; SPCC 0.8mm |
| Color | Coating Black |
| M/B Support | Micro-ATX/MINI-ITX |
| Drive Bay | Internal 3.5"HDD×3 or 2.5"SSD×5 |
| Expansion Slot | PCI Slots ×2 |
| I/O Panel | USB3.0×1, C-TYPE×1 |
| Power Supply | PS/2 [Internal Bottom-mount] |
| Fan Q’ty |
Top: 120mm×3 or 140mm×2 or 200mm×2 [option] Bottom: 120 or 140mm×1 or 200mm×1 [option] |
| Radiator Q’ty | 1×120/140/240/280/360mm 28mm thick [option] |
| Pump/water tank | 1 [option] |
| CPU Cooler Height | 82mm [Max.] |
| Graphic Card Length | 410mm [Max.] |
| Side Panel Style | 3.0mm Tempered Glass |
| Riser Card Adapter | PCI Express 16X Gen3.0 |
