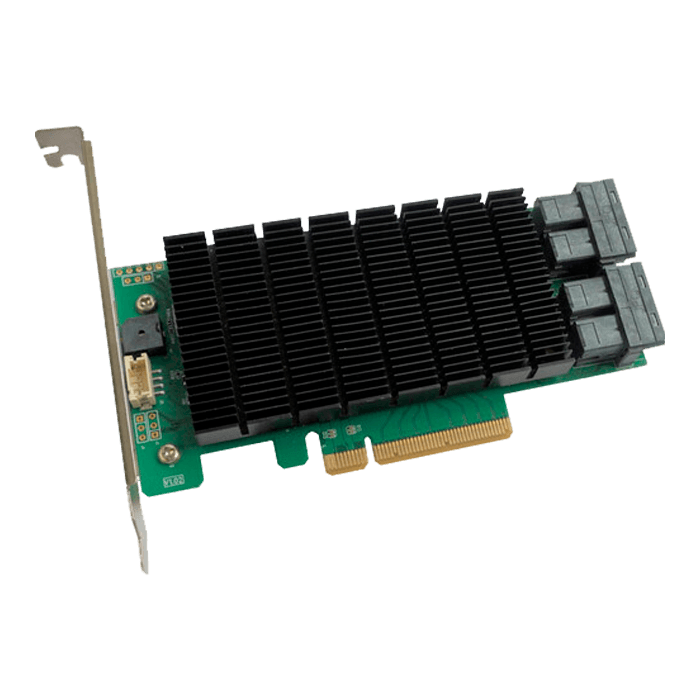

RocketRAID 2840C, SAS/SATA 6Gb/s, 16-Port, PCIe 3.0 x8, RAID Controller
- SKU: 16323606
- Manufacturer: HIGHPOINT
- MPN: RR2840C
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
| General | ||
| System Connection | PCI Express 3.0 x8 | |
| Internal I/O | 4 x Mini SAS (SFF 8643) SAS-2 6 Gb/s | |
| RAID | RAID 0, 1, 10, 5, 50, 6, JBOD | |
| OS Compatibility |
Windows Server 2008 or Later Windows 7 or Later macOS 10.9 or Later Linux FreeBSD *As of May, 2021: Check with manufacturer for the most up-to-date compatibility |
|
| Power | ||
| Power Consumption | 14 W | |
| Environmental | ||
| Operating Temperature | 41 to 131°F / 5 to 55°C | |
| Storage Temperature | -4 to 176°F / -20 to 80°C | |
| Physical | ||
| Form Factor | Low-Profile | |
| Certifications |
CE, FCC, REACH, RoHS, WEEE *as per Manufacturer |
|
| Mean Time Between Failures (MTBF) | 0.92 Million Hours | |
| Dimensions | 7.83 x 6.69 x 1.89" / 19.89 x 16.99 x 4.8 cm | |
| Packaging Info | ||
| Package Weight | 0.635 lb | |
| Box Dimensions (LxWxH) | 7.9 x 6.7 x 1.9" | |
