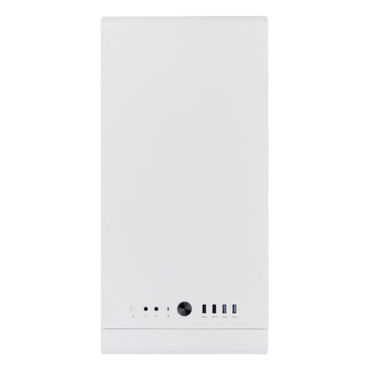

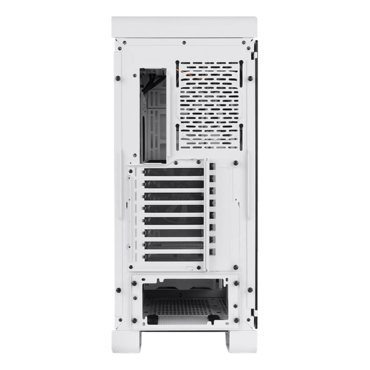

S500 Snow Tempered Glass, No PSU, ATX, White, Mid Tower Case

  • SKU: 13260404
  • Manufacturer: THERMALTAKE
  • MPN: CA-1O3-00M6WN-00
Starting At
S500 Snow Tempered Glass, No PSU, ATX, White, Mid Tower Case

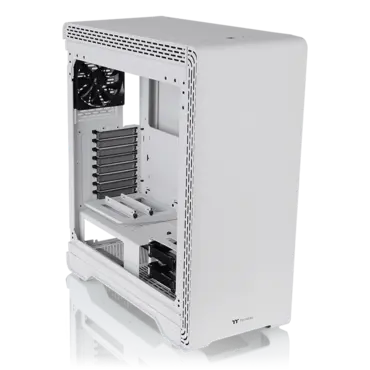

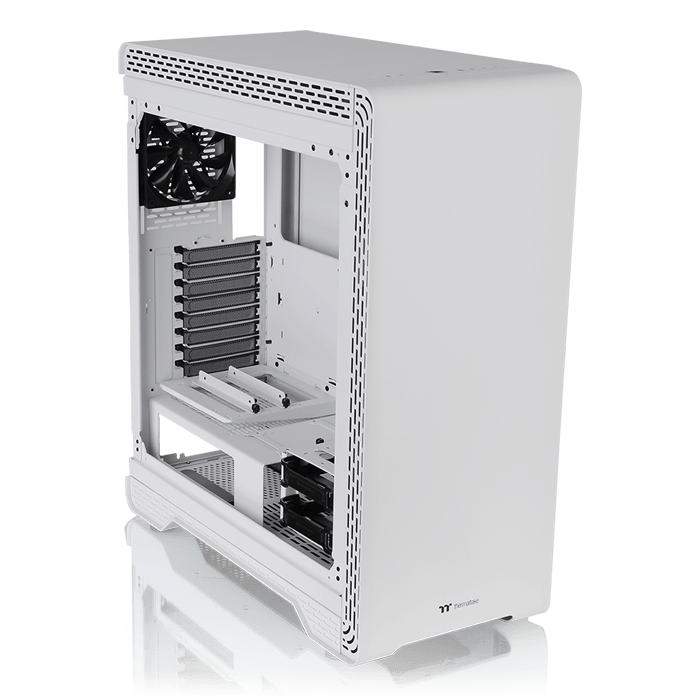

Thermaltake S500 Snow (CA-1O3-00M6WN-00). S500 Tempered Glass Snow Edition mid-tower chassis combines sophistication and elegance and is all built with a modern steel case construction. The S500 TG Snow is manufactured with one tempered glass side panel. Two preinstalled standard fans, one 140mm fan at the front and one 120mm at the rear to enable outstanding ventilation. S500 TG Snow incorporates a full modular design, vertical radiator & GPU mount, Patented Rotational PCI-E slots, and the support for 200mm fans. The flexibility is limitless for high-end components.

  • Sleek, Elegant, Modern Design.
  • Sleek Steel Design.
  • Built-in PSU Cover and Riser GPU Bracket.
  • Patented Rotational PCI-E 8 Slot Design.
  • Superior Hardware and Liquid Cooling Support.
P/N CA-1O3-00M6WN-00
Model S500 TG Snow
Case Type Middle Tower
Dimension (H x W x D) 565 x 240 x 500 mm
(22.2 x 9.4 x 19.7 inch)
Net Weight 15.04 kg / 33.15 lbs.

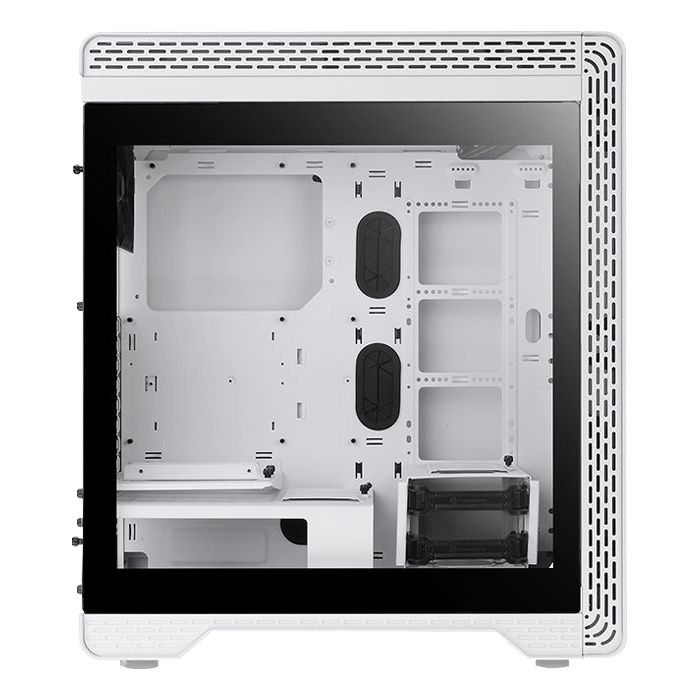

Side Panel 4mm Tempered Glass x 1(Left)
Color Exterior & Interior : White
Material SPCC
Cooling System Rear (exhaust) :
120 x 120 x 25 mm fan
(1000rpm, 16 dBA)
Front (intake) :
140 x 140 x 25 mm fan
(1000rpm, 20dBA)
Drive Bays
2.5” x 2 or 3.5”x 2 (HDD Rack)
2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket)
Expansion Slots 8
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

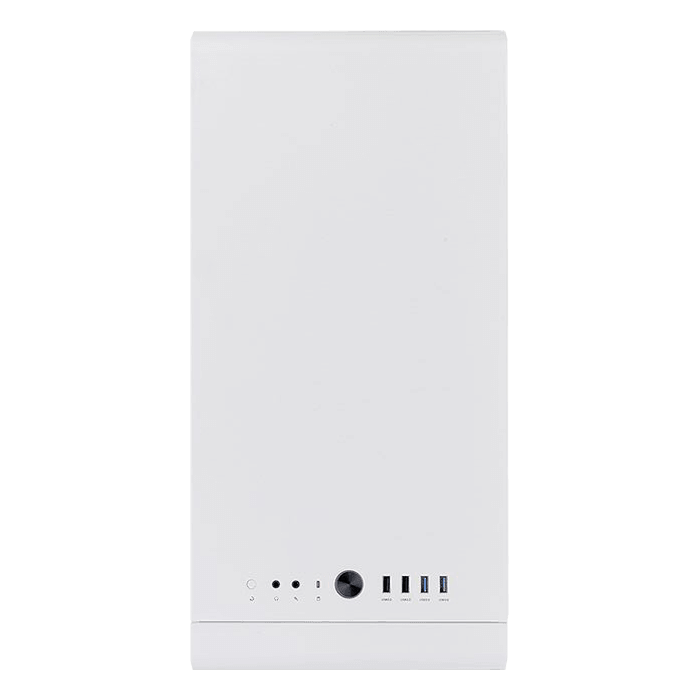

I/O Port USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Reset Button x 1
PSU Standard PS2 PSU (optional)
Fan Support Front:
3 x 120mm, 3 x 140mm, 2 x 200mm
3 x 120mm, 2 x 140mm, 2 x 200mm
1 x 120mm
Radiator Support Front:
1 x 360mm, 1 x 420mm
1 x 280mm, 1 x 360mm
1 x 120mm
1 x 360mm (Without HDD Rack)
Clearance CPU cooler height limitation: 172mm
VGA length limitation: 282mm(With HDD Rack)
400mm(Without HDD Rack)
PSU length limitation: 220mm
