S500 TG, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
- SKU: 13184656
- Manufacturer: THERMALTAKE
- MPN: CA-1O3-00M1WN-01
- Availability: TEMPORARILY OUT OF STOCK
Price
$205.83
S500 TG, Tempered Glass, No PSU, ATX, Black, Mid Tower Case

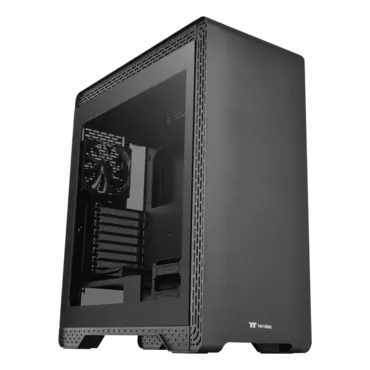

Thermaltake S500 (CA-1O3-00M1WN-01). S500 TG Mid-tower case comes with one tempered glass panel on the left, one pre-installed 140mm front fan and one 120mm rear fan, supporting motherboards up to ATX.
| P/N | CA-1O3-00M1WN-01 |
| Model | S500 TG |
| Case Type | Middle Tower |
| Dimension (H x W x D) | 565 x 240 x 500 mm
(22.2 x 9.4 x 19.7 inch) |
| Net Weight | 15.04 kg / 33.15 lbs. |

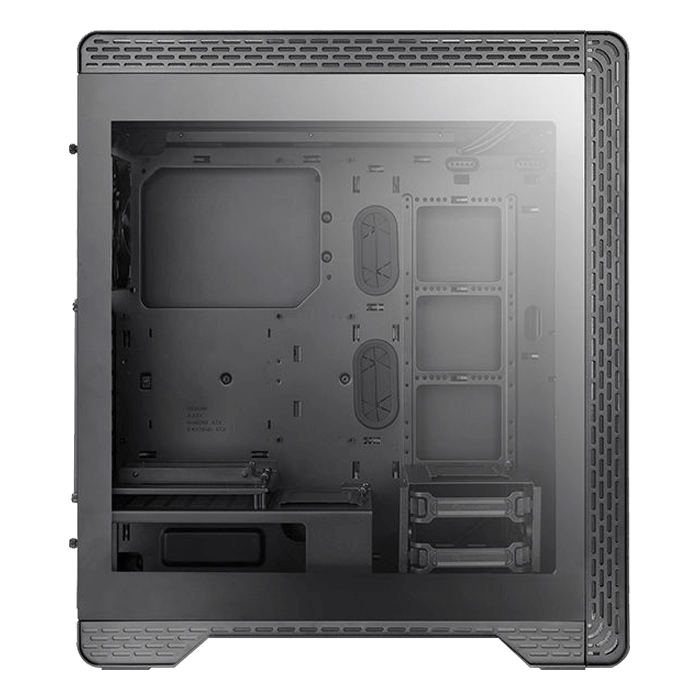

| Side Panel | 4mm Tempered Glass x 1(Left) |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Rear (exhaust) :
120 x 120 x 25 mm fan (1000rpm, 16 dBA) Front (intake) : 140 x 140 x 25 mm fan (1000rpm, 20dBA) |
| Drive Bays
-Accessible -Hidden |
2.5” x 2 or 3.5”x 2 (HDD Rack)
2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket) |

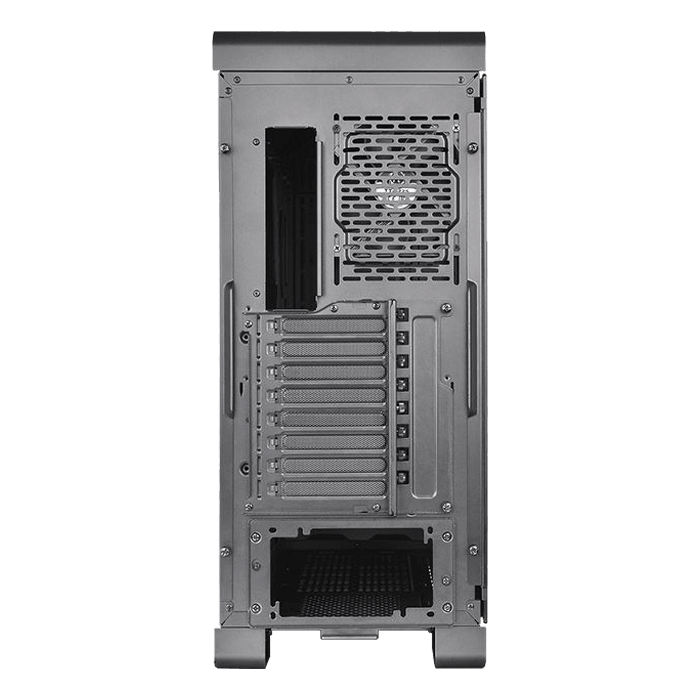

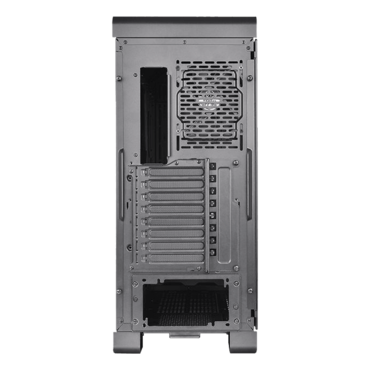

| Expansion Slots | 8 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |

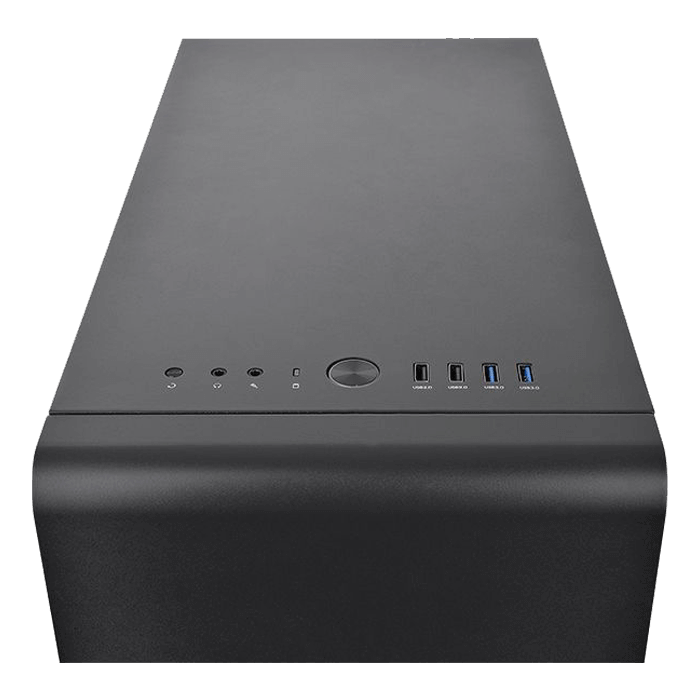

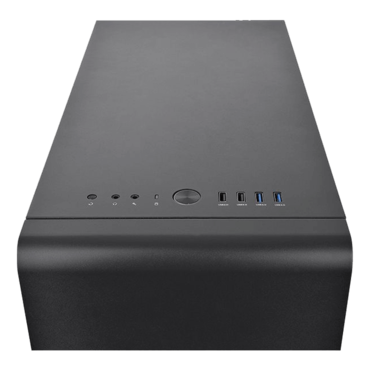

| I/O Port | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Reset Button x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front:
3 x 120mm, 3 x 140mm, 2 x 200mm Top: 3 x 120mm, 2 x 140mm, 2 x 200mm Rear: 1 x 120mm |
| Radiator Support | Front:
1 x 360mm, 1 x 420mm Top: 1 x 280mm, 1 x 360mm Rear: 1 x 120mm Right: 1 x 360mm (Without HDD Rack) |
| Clearance | CPU cooler height limitation: 172mm
VGA length limitation: 282mm(With HDD Rack) 400mm(Without HDD Rack) PSU length limitation: 220mm |
