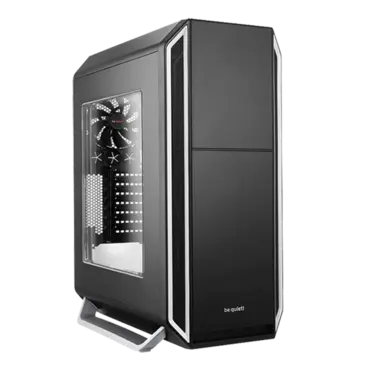

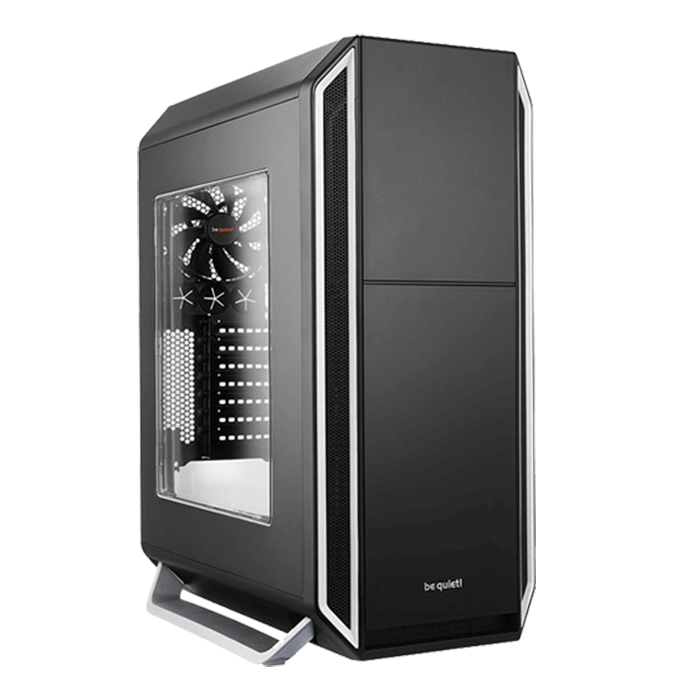

Silent Base 800, w/ Window, No PSU, ATX, Black/Silver, Mid Tower Case
Unique Performance and Usability
be quiet! Silent Base 800 Silver offers the perfect symbiosis of noise prevention and cooling performance, good usability and extensive capacity for high-end hardware.
The innovative construction and pre-installed Pure Wings 2 fans assure excellent cooling performance and perfect air circulation. Numerous sound insulation features contribute to well-known whisper-quiet operation. On account of tool-free mounting and generous space for hardware and cable management the case offers a comfortable, first-class usability.
Thanks to Silent Base 800’s “form follows function” principle, every detail has a purpose and function. It’s truly a superior case ideal for high-end gaming gear and quiet systems.
- Outstanding performance thanks to an innovative construction that assures excellent cooling efficiency and a perfect air-circulation at well-known whisper-quiet operation
- Excellent usability with simplest mounting and tool-free fitting of drives, an intelligent and adaptable cable solution, and air intake filters that are easily accessed for cleaning
- Ample space and cutouts are provided for high-end components of today and tomorrow, including space for water cooling radiators
- Three pre-installed Pure Wings 2 fans feature nine airflow-optimized fan blades and are decoupled from the case to move heat out with a minimum of vibration and the quietest possible operation

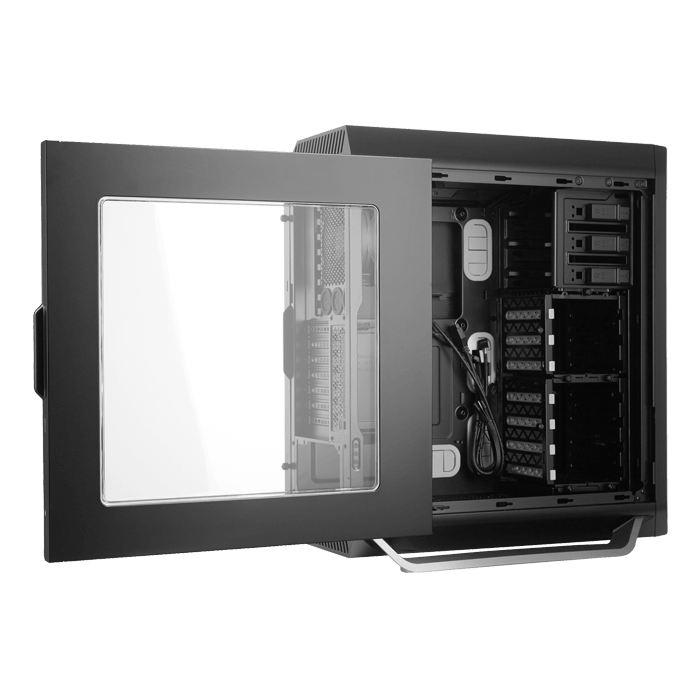

- Side panel with double-glazed window provides a perfect view inside the PC system; the window is made from scratch and impact resisting material and offers a superb soundproofing
- Professional cable management is supported with generous space for organizing cables, silicone rubber grommets, and carefully placed pass-throughs
- Form follows function principle maximizes performance; the look of the case is based upon its intended function and purpose
- Product conception, design and quality control in Germany
General data | |
Model | Silent Base 800 Window Silver |
Color option | Silver |
Motherboard compatibility | ATX / M-ATX / Mini-ITX |
Case size excl. stands (L x W x H), (mm) | 495 x 230 x 542 |
Case size incl. stands (L x W x H), (mm) | 495 x 266 x 559 |
Volume (l) | - |
PSU form factor | ATX PS/2 |
Weight (kg) | 9.31 |
Expansion slots | 7 |
Pre-installed fans | |
Fan at top | - |
Fan at front | 2x Pure Wings 2 140mm |
Fan at side | - |
Fan at rear | 1x Pure Wings 2 120mm |
Fan at bottom | - |
Dimensions (L x W x H), (mm) | Front: 140 x 140 x 25, Rear: 120 x 120 x 25 |
Fan speed at 100%PWM / 12V (rpm) | Front: 1,000, Rear: 1,500 |
Airflow at 100%PWM / 12V (CFM /m3/h) | Front: 61.2 / 103.97, Rear: 51.4 / 87.32 |
Air Pressure at 100%PWM / 12V (mm H2O) | Front: 0.76, Rear: 1.25 |
Noise level at 100%PWM / 12V (dB(A)) | Front: 18.8, Rear: 19.2 |
Voltage range (V DC) | 5–12 |
Input power (W) | Front: 1.08, Rear: 1.04 |
Input current (A) | 0.09 |
Connector | 3-pin |
Lifespan (h / 25°C) | 80,000 |
Fan controller | 0 |
Maximum fan installation | |
Maximum fans | - |
Top (mm) | 2 x 140/120 |
Front (mm) | - |
Side (mm) | - |
Rear (mm) | - |
Bottom (mm) | 1 x 140/120 |
PSU shroud | - |
Optional radiator installation | |
Top (mm) | 240 / 280 |
Front (mm) | 120 / 140 |
Side (mm) | - |
Rear (mm) | 120 |
Bottom (mm) | - |
PSU compatibility | |
Maximum dimensions excl. bottom fan (mm) | 290 |
Maximum dimensions incl. bottom fan (mm) | 160 |
Graphics card | |
HDD cage (in height of graphics card) installed (mm) | 290 |
HDD cage (in height of graphics card) removed (mm) | 400 |
Maximum PCIe slots with vertical graphics card (pcs.) | - |
Drive bay capacity | |
5.25 bays (pcs.) | 3 |
3.5 slots (scope of delivery) | 7 |
3.5 slots (max.) | 7 |
2.5 slots (scope of delivery) | 4 |
2.5 slots (max.) | 4 |
Cooling | |
Max.construction height of CPU cooler unit (mm) | 167 |
Airflow channel | Front, Top, Rear, Bottom |
Lighting | |
LED illumination | - |
LEDs (pcs.) | - |
LED type | - |
LEDs synchronizable with controller/motherboard | - |
I/O Panel | |
USB 3.2 Gen. 2 Type C | - |
USB 3.2 Type A | 2 |
USB 2.0 | 2 |
HD Audio I/O | 1 |
Qi charger / Quick Charging Option | 1 |
Insulation and damping | |
Top panel insulation mats | - |
Front panel insulation mats | ✓ |
Side panel insulation mats | ✓ |
Anti-vibration decoupled HDD | ✓ |
Anti-vibration decoupled fan | ✓ |
Anti-vibration decoupled PSU | ✓ |
Anti-vibration decoupled motherboard-tray | - |
Removeable dust filters | |
Top | - |
Front | 1 |
Side | - |
Bottom | 1 |
Material | |
Top cover | ABS |
Front panel | ABS |
Side panel | 0.7mm Steel |
Side panel window | Double-glazed window |
Stands | Nylon / Fiber / Rubber |
Safety certification | |
Approvals | - |
Environmental directives | |
RoHS | - |
Reach | - |
WEEE | - |
Triman | - |
Scope of delivery | |
Screw set (Drives/Motherboard) | ✓ |
Additional standoffs (pcs.) | 2 |
SSD bracket for PSU shroud | - |
LED strips (pcs.) | 0 |
Cable ties (pcs.) | 4 |
Screw box | - |
VGA holder | - |
VGA holder for inverted layout | - |
Mesh Front Panel | - |
ODD Bracket | - |
Fan / Radiator bracket for multi mounting panel | - |
Service | |
Warranty (Years) | 3 |
International hotline / free of charge | ✓ / DE, FR |
Logistics data and RRP | |
Article number | BGW03 |
EAN code | 4260052184332 |
Dimensions, package (L x W x H), (mm) | 651 x 305 x 572 |
Gross weight, package (kg) | 11.06 |
Pieces per packaging unit | 1 |
RRP (€) | 156.00 |
