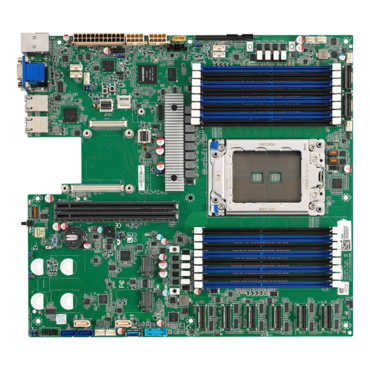

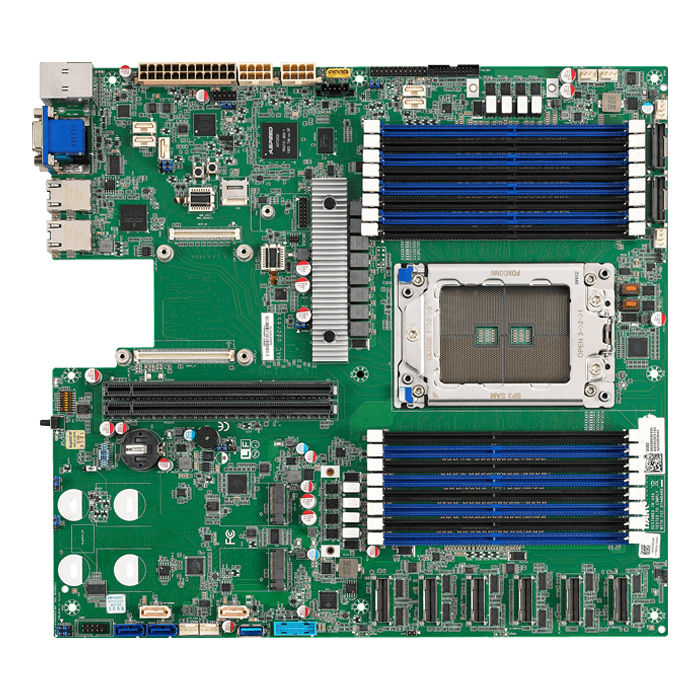

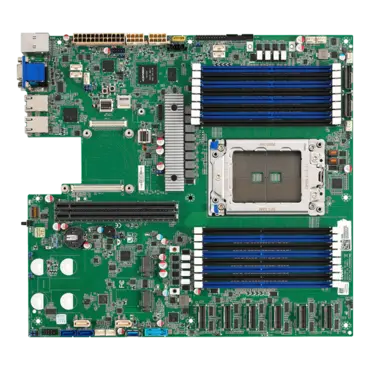

Tomcat SX S8036 (S8036GM2NE), AMD SoC, SP3, DDR4-3200 4TB 3DS LRDIMM / 16, SATADOM / 2, VGA, GbLAN / 2, E-ATX Retail
Quantity:
- SKU: 13224827
- Manufacturer: TYAN
- MPN: S8036GM2NE
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$655.50
- PCIe Gen 4.0 support
- DDR4-3200 memory support
- (8) PCIe x8 SlimSAS connectors
- (1) PCIe x24 and (1) PCIe x24 (w/ x16 link) slots
- OCP v2.0 x16 LAN mezzanine slot (Type 1)
- AST2500 BMC with Redfish support
| Processor | Q'ty / Socket Type | (1) AMD Socket SP3 | |
| Supported CPU Series | (1) AMD EPYC™ 7002 Series Processor | ||
| Configurable Thermal Design Power (cTDP) Wattage | Max up to 240W | ||
| Memory | Supported DIMM Qty | (16) DIMM slots | |
| DIMM Type / Speed | DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 | ||
| Capacity | Up to 2,048GB RDIMM / 4,096GB LRDIMM 3DS | ||
| Memory channel | 8 Channels per CPU | ||
| Memory voltage | 1.2V | ||
| Expansion Slots | PCI-E | (1) PCI-E Gen4 x 24 slot / (1) PCI-E Gen4 x 24 slot (w/x16 link; can be x24 link if OCP mezz. conn.B is not used. Please contact with Tyan technical support for details.) | |
| Recommended TYAN Riser Card
(PCI-E Gen4) |
M8036-L24-3F, 2U riser card for slot #6 w/ (3) PCI-E slots (left) / M8036-R24-3F, 2U riser card for slot #6.5 w/ (3) PCI-E slots (right) | ||
| Others | (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B) | ||
| LAN | Q'ty / Port | (2) GbE ports + (1) GbE dedicated for IPMI | |
| Controller | Broadcom BCM5720 | ||
| PHY | Realtek RTL8211E | ||
| Storage | SATA | Connector | (2) SFF-8654 connectors for up to (16) SATA ports |
| Controller | Direct from AMD EPYC CPU | ||
| Speed | 6Gb/s | ||
| RAID | N/A | ||
| Additional
SATA |

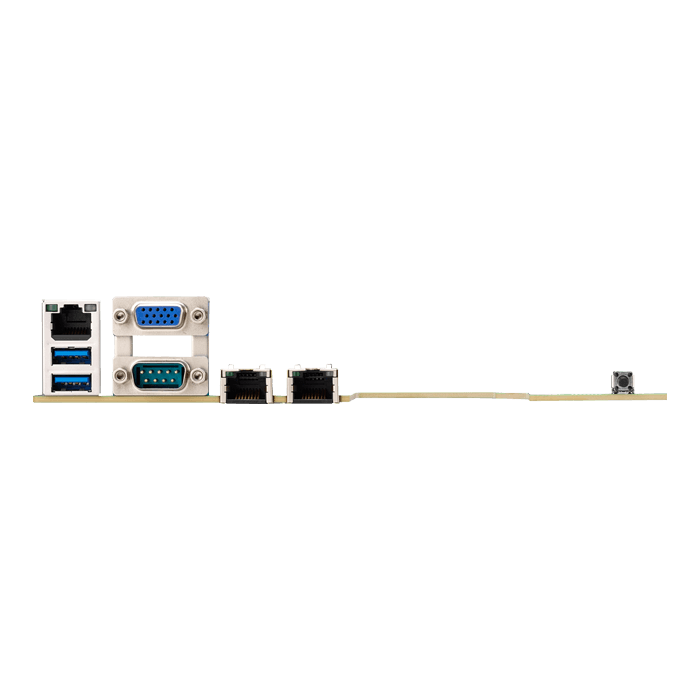

Connector | (2) SATA-DOM / (2) SATA | |
| Controller | Marvell 9235 | ||
| Speed | 6Gb/s | ||
| RAID | N/A | ||
| NVMe | Connector (M.2) | (2) 22110/2280 (by PCI-E Gen4 interface) | |
| Connector (Slim SAS) | (8) SFF-8654 for (16) NVMe ports | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920x1200 | ||
| Chipset | Aspeed AST2500 | ||
| Input /Output | USB | (2) USB3.1 Gen1 ports (@ rear) / (2) USB3.1 Gen1 ports (via Cable) / (1) USB3.1 Gen1 port (Type-A) | |
| COM | (1) DB-9 COM Connector (at rear, COM1) + (1) Header (COM2) | ||
| VGA | (1) D-Sub 15-pin VGA port (at rear) | ||
| RJ-45 | (2) GbE ports / (1) GbE dedicated for IPMI | ||
| Front Panel | (1) 2x12-pin SSI front panel header | ||
| SATA | (2) SATA-III connectors + (2) SATA-DOM connectors + (16) SATA ports from (2) Slim SAS connectors | ||
| Power | SSI 24-pin + 8-pin + 8-pin power connectors | ||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | |
| System Monitoring | Chipset | Aspeed AST2500 | |
| Fan | Total (6) 4-pin headers | ||
| Temperature | Monitors temperature for CPU & memory & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| LED | Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 32MB | |
| Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI 6.1 / ACPI sleeping states S0, S5 / FAN speed control automatic | ||
| Physical Dimension | Form Factor | EATX | |
| Board Dimension | 12" x 13" (305 x 330mm) | ||
| Regulation | FCC (SDoC) | Class A | |
| CE (DoC) | Class A | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Package Contains | Motherboard | (1) S8036 Motherboard | |
| Manual | (1) Quick Installation Guide | ||
| I/O Shield | (1) I/O Shield | ||
| Cable | SATA | (2) SATA signal cables | |
