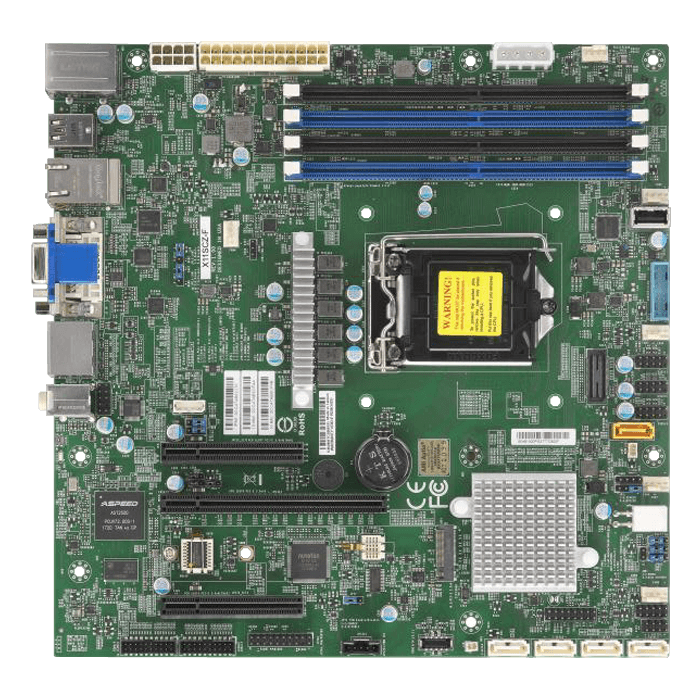

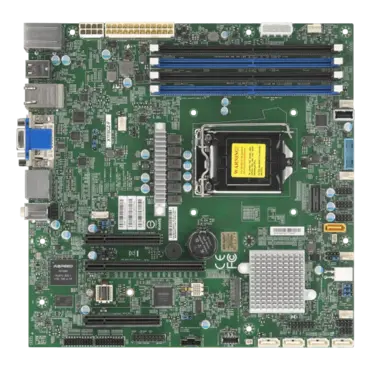

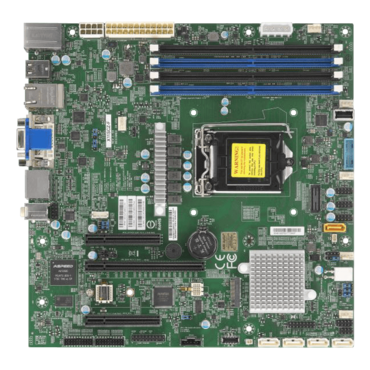

X11SCZ-F, Intel C246, LGA 1151, DDR4-2666 64GB UDIMM / 4, DisplayPort, M.2 / 2, GbLAN / 2, microATX Retail

SKU: 12242312

Manufacturer: SUPERMICRO

MPN: MBD-X11SCZ-F-O

Availability: Available


Price: $314.53
or as low as $10/month
Quantity:
  1. 8th Generation Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® E processor (Coffee Lake-S) Workstation., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
  2. Intel® C246
  3. Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  4. 1 PCI-E 3.0 x16,
    2 PCI-E 3.0 x4 (in x8 slot)
    M.2 Interface: 1 SATA/PCI-E 3.0 x4
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
  5. 1 VGA D-Sub Connector port, 1 DVI - D port, 2 DP (DisplayPort) ports,
    3 Independent Displays
  6. Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Intel® PHY I219LM LAN controller
Product SKUs
MBD-X11SCA-W
  • X11SCA-W
Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU
  • 8th Generation Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® E processor (Coffee Lake-S) Server, Intel® Xeon® E processor (Coffee Lake-S) Workstation.
  • Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
System Memory
Memory Capacity
  • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type
  • N/A
DIMM Sizes
  • 1GB, 2GB, 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C246
SATA
  • Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Intel® PHY I219LM LAN controller
    Support vPro
Graphics
  • HDMI is HDMI2.0a, DP is DP1.2,
Input / Output
LAN
  • 2 1GbE LAN ports
USB
  • 2 USB 2.0 ports (2 headers),
  • 4 USB 3.0 ports (2 rear + 2 headers),
  • 4 USB 3.1 ports (2 rears (1 Type A + 1 Type C) + 2 headers); There is a Type C on Rear, and one Type C header on board
Video Output
  • 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port,
  • HDMI is HDMI2.0a, DP is DP1.2,
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16,
  • 1 PCI-E 3.0 x8 (in x16 slot),
  • 1 PCI-E 3.0 x4,
  • 1 PCI-E 3.0 x1,
  • 2 PCI-Ex16 slots are running at NA/16, or 8/8
  • 1 PCI,
  • 1 - 5V PCI 32bit
M.2
  • M.2 Interface: 2 PCI-E 2.0 x4, RAID 0 & 1
  • Form Factor: 22110
  • Key: M-Key
  • M.2#1~2 are shared with SATA #6~7, M.2#2 is shared with U.2
System BIOS
BIOS Type
  • UEFI 128Mb
Management
Software
  • AMT, SuperDoctor® 5, vPro, Watchdog
System Mangement Software
  • SuperDoctor 5
  • version. 5
Power Configurations
  • ACPI Power Management
  • ATX Power connector
  • Power-on mode for AC power recovery
  • Keyboard Wakeup from Soft-Off
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, VBAT
FAN
  • 5 fans with tachometer status monitoring, Fan speed control, Low noise fan speed control, PWM fan speed control
Temperature
  • N/A
LED
  • Standby alert LED
Other Features
  • 8-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, RoHS, WOL
Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SCZ-F 1 X11SCZ-F Motherboard
QRG MNL-2086-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 5 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00126-0N 1 Standard I/O Shield for X11SCZ with EMI Gasket
