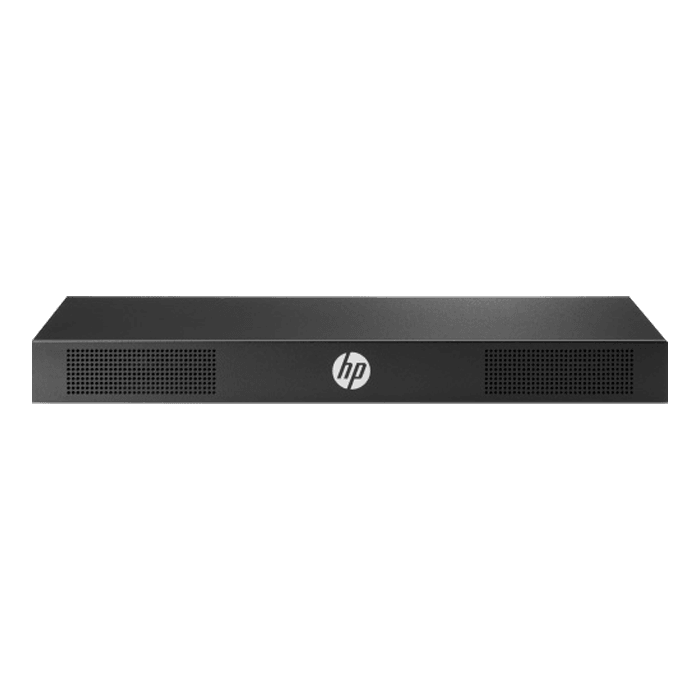

AF651A, KVM Console G3 Switch 0x1x8, KVM switch, 8 ports, 1U rack-mountable

SKU: 9385643

Manufacturer: HPE

MPN: AF651A

Availability: Available


Price: $589.29
or as low as $19/month
Quantity:

HP KVM Analog Console Switches
Looking for a simple and intuitive solution that allows you to access and manage servers across your entire network?

HP KVM Analog Console Switches allow you to view and manage up to 256 rackmount servers across your data center through a single user interface. HP KVM Analog Console Switches utilize a local On-Screen Display (OSD) interface, accessed through a rack console such as the HP LCD8500, which provides intuitive menus for accessing each attached server or serial managed device. HP's G3 KVM Analog Console Switches support an optional USB Remote Access Key that allows you to upgrade to KVM-over-IP functionality, providing remote access and management via the On-Board Web Interface (OBWI). New G3 models also support HP Power Discovery Services and Location Discovery Services when connected to the appropriate power distribution unit and KVM rack console.
HP KVM Analog Console Switches are available in 8 and 16-Port versions. Standard rack mounting of the KVM Analog Console Switch will share 1U (1.75") of front panel rack space with the rack console. However, each model can also be mounted in a "zero U" profile by mounting in the side rails of the rack.

Technical Information

  • Number of Computers Supported: 8
  • Number of Local Users Supported: 1

Video

  • Maximum Video Resolution: 1280 x 1024

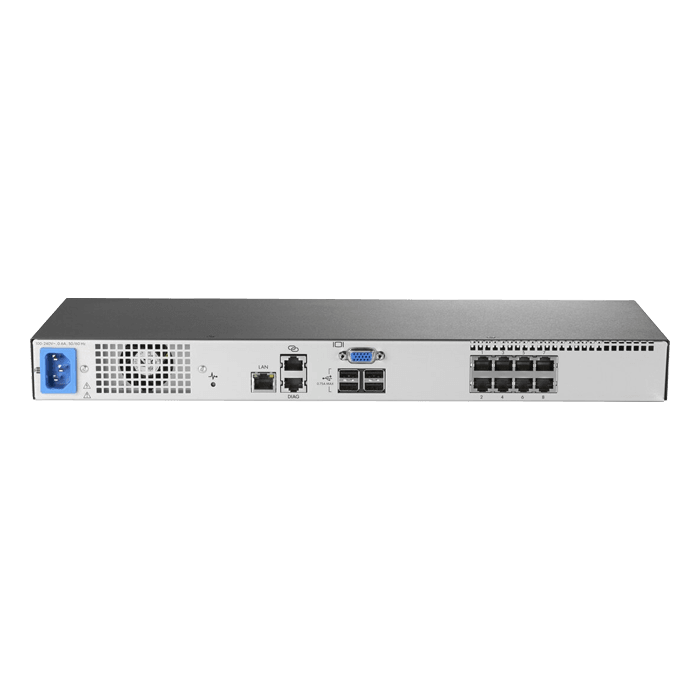

Interfaces/Ports

  • Network (RJ-45): Yes
  • USB: Yes
  • VGA: Yes
  • Number of Network (RJ-45) Ports: 11
  • Number of USB Ports: 4
  • Number of VGA Ports: 1

Physical Characteristics

  • Form Factor: Rack-mountable
  • Rack Height: 1U
  • Height: 1.7"
  • Width: 17"
  • Depth: 6.5"
  • Weight (Approximate): 4.60 lb
Product Description HPE KVM Console G3 Switch 0x1x8 - KVM switch - 8 ports - rack-mountable
Device Type KVM switch - 8 ports - CAT5 - cascadable
Enclosure Type Rack-mountable
Subtype KVM
Ports 8 x KVM port(s)
KVM Users Qty 1 local user
Features On-Screen Display
Power AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) 17.2 in x 6.5 in x 1.7 in
Weight 4.5 lbs
Designed For ProLiant DL120 Gen9, DL160 Gen8, DL160 Gen9, DL180 Gen9, DL20 Gen9, DL320e Gen8, DL360e Gen8, DL360p Gen8, DL380 Gen9, DL380e Gen8, DL380p Gen8, DL385p Gen8, DL580 Gen9, DL60 Gen9, DL80 Gen9, MicroServer Gen8, ML110 Gen9, ML150 Gen9, ML310e Gen8, ML350e Gen8, ML350p Gen8
