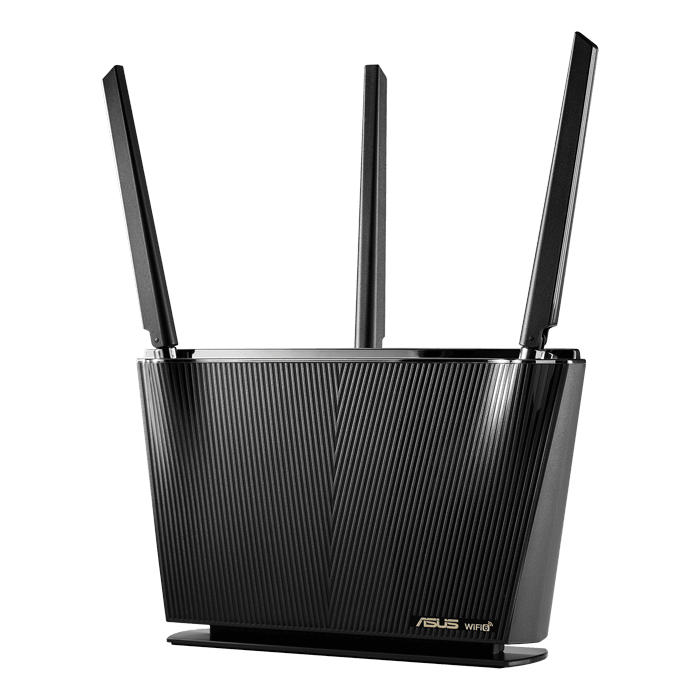

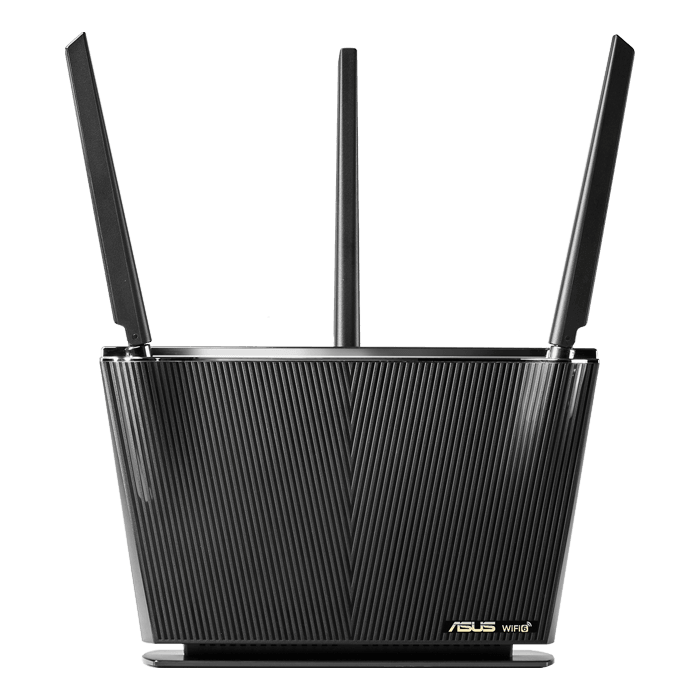

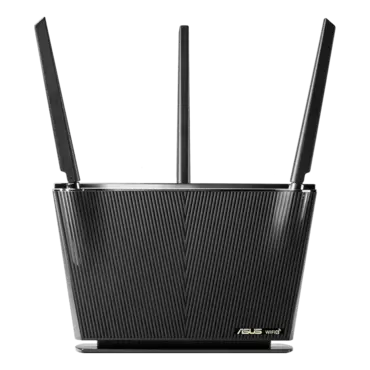

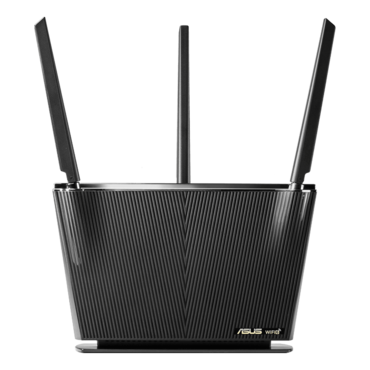

RT-AX68U, IEEE 802.11ax, Dual-Band 2.4 / 5GHz, 861 / 1802 Mbps, 4xRJ45, USB 2.0/3.0, Wireless Router
Quantity:
- SKU: 13805880
- Manufacturer: ASUS
- MPN: RT-AX68U
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$133.20
RT-AX68U, IEEE 802.11ax, Dual-Band 2.4 / 5GHz, 861 / 1802 Mbps, 4xRJ45, USB 2.0/3.0, Wireless Router
ASUS RT-AX68U. Enjoy fast WiFi with a touch of class in your home or studio with the stylish ASUS RT-AX68U router. The latest WiFi 6 delivers super-smooth connections to every device, even if there are lots of them!
- High Efficiency WiFi 6 - Enjoy fast speeds up to 2700 Mbps with WiFi 6 (802.11ax)
- Commercial-grade Network Security – Lifetime free ASUS AiProtection Pro, powered by Trend Micro™, with WPA3 to protect your home
- More Privacy, Anywhere - Instant Guard gives you one-click secure internet access via RT-AX68U from anywhere in the world
- Parental Controls for All Ages - Customize settings for different age groups, giving your kids the internet access they need
- ASUS AiMesh Support – Create a flexible, seamless whole-home mesh network with AiMesh-compatible routers
| Model Name | RT-AX68U |
| Network Standard |
IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax |
| AX technology | Yes |
| Data Rate |
802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps 802.11n : up to 450 Mbps 802.11ac : up to 1625 Mbps 802.11ax (2.4GHz) : up to 861 Mbps 802.11ax(5GHz):up to 1802 Mbps |
| Antenna | External 3 |
| Transmit/Receive |
2.4 GHz 3 x 3 5 GHz 3 x 3 |
| Processor | 1.8GHz DUAL-CORE processor |
| Memory |
256 MB Flash 512 MB RAM |
| Boosts speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80 MHz bandwidth |
| Operating Frequency | 2.4GHz/5GHz |
| Ports |
RJ45 for Gigabits BaseT for WAN x 1?RJ45 for Gigabits BaseT for LAN x 4 USB 3.0*1 USB2.0*1 RJ45 for Gigabits BaseT for WAN x 1?RJ45 for Gigabits BaseT for LAN x 4 USB 3.0*1 USB2.0*1 |
| Button | WPS Button, Reset Button, Power Switch |
| LED Indicator | Power, 2.4GHz/5GHz,WAN,LAN |
| Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 19 V 1.75A current/33W |
| Product Weight (g) | 630 g |
| AiMesh |
AiMesh:Yes Primary AiMesh router:Yes AiMesh node:Yes |
| Router APP | ASUS Router APP:Yes |
| Game |
Game Boost/acceleration:No WTFast:No |
| Alexa | Support Alexa skill:Yes |
| AiProtection |
AiProtection:AiProtection Pro Router Security Assessment:Yes Malicious site blocking:Yes Two-Way IPS:Yes Infected Device Prevention and Blocking;Yes |
| Parental Control |
Parental Control:Yes Parental Control Customized Internet schedule:Yes |
| Traffic Control |
Adaptive QoS:Yes Bandwidth Monitor:Yes Bandwidth limiter:Yes Maximum Bandwidth limiter rule:32 Traditional QoS:Yes Maximum Traditional QoS rule:32 Traffic Monitor:Yes Real-time traffic monitor:Yes Wired Traffic Monitor:Yes Wireless Traffic Monitor:Yes Traffic Analyzer:Yes Traffic analysis period:Daily, Weekly, Monthly Website history:Yes |
| Wireless |
IPv6:Yes MU-MIMO:Yes UTF-8 SSID:Yes Guest Network:Yes Maximum Guest Network rule:2.4GHz x3, 5GHz x3 WPS:Yes Wi-Fi MAC address filter:Yes Maximum MAC filters:64 Wireless scheduler:Yes Airtime fairness:Yes RADIUS Server:Yes Universal beamforming:Yes Explicit beamforming:Yes |
| WAN |
Internet connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN:Yes WAN Aggregation:Yes 3G/4G LTE dongle:Yes Android tethering:Yes Maximum port forwarding rule:64 Port triggering:Yes Maximum port triggering rule:32 DMZ:Yes DDNS:Yes NAT Passthrough:PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay |
| LAN |
DHCP Server:Yes IGMP snooping:Yes IPTV:Yes LAN Link Aggregation:Yes Manually assign IP address:Yes Maximum manually assign IP address rule:64 |
| VPN |
VPN Client L2PT:Yes VPN Client OVPN:Yes VPN Client PPTP:Yes VPN Server IPSec:Yes VPN Server OVPN:Yes VPN Server PPTP:Yes VPN Fusion:No |
| USB application |
File System:HFS+, NTFS, vFAT, ext2, ext3, ext4 HDD hibernation:Yes Safely Remove disk:Yes AiCloud:Yes Download master:Yes AiDisk:Yes Media Server:Yes Time Machine:Yes Samba Server:Yes FTP Server:Yes Shared Folder privileges:Yes |
| Administration |
Operating mode:Accesspoint, AiMeshnode, Mediabridge, Repeater, Router Operating system:ASUSWRT Free OS upgrade:Yes Firewall:Yes Maximum Firewall keyword filter:64 Maximum Firewall network service filter:32 Maximum Firewall URL filter:64 Wake on LAN (WOL):Yes SSH:Yes Configuration backup and restore:Yes Diagnosis tools:Yes Feedback system:Yes System log:Yes |
