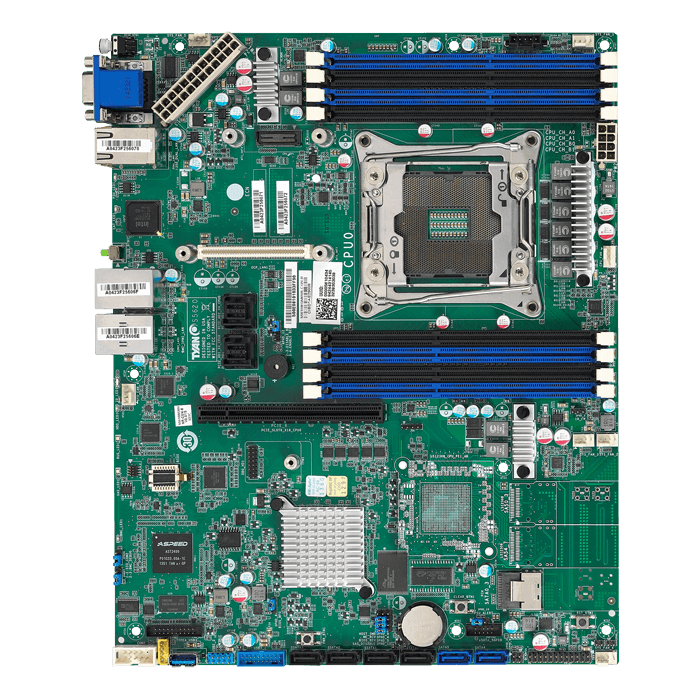

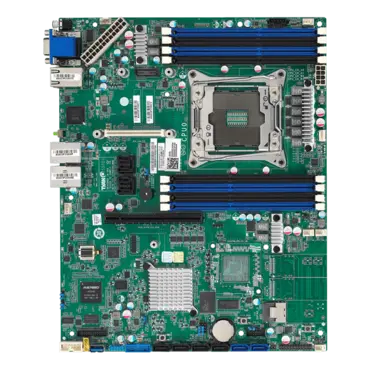

S5620 (S5620GM2NRE), Intel C612, LGA 2011-3, DDR4-2400 1TB 3DS LRDIMM / 8, VGA, GbLAN / 2, ATX Retail
Quantity:
- SKU: 12263173
- Manufacturer: TYAN
- MPN: S5620GM2NRE
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$329.26
- 12" x 9.6" ATX Form Factor
- 8 R-DDR4 DIMM Slots
- 2 onboard GbE LAN
- 1 PCIe Gen3 x16 Slot
- 1 OCP LAN Mezzanine Slot for Ethernet up to 10Gb/s
- 10 SATA 6Gb/s Ports
- 2 SFF-8643 NVMe Ports
- IPMI 2.0 with Shared Management Port
| Processor | Socket Type / Q'ty | LGA2011 / (1) | |||
| Supported CPU Series | Intel Xeon Processor E5-2600/E5-1600 v3/v4 series processors | ||||
| Thermal Design Power (TDP) Wattage | Max up to 160W | ||||
| Chipset | PCH | Intel C612 | |||
| Memory | Supported DIMM Qty | (8) DIMM slots | |||
| DIMM Type / Speed | RDIMM DDR4 2400/2133/1600 / LRDIMM DDR4 2400/1866 / LRDIMM 3DS DDR4 2400/1866 (*Up to 2400 speed support only w/E5-2600 v4) | ||||
| Capacity | Up to 256GB RDIMM/ 512GB LRDIMM/ 1,024GB LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | ||||
| Memory channel | 4 Channels per CPU | ||||
| Memory voltage | 1.2V | ||||
| Expansion Slots | PCI-E | (1) PCI-E Gen3 x16 slot | |||
| Recommended TYAN OCP Card | M7062-B811-1T, PCI-E Gen3 x8, Broadcom 10GbE Mezz Card / M7062-B810-2T, PCI-E Gen3 x8, Broadcom 10GbE Mezz Card / M7076-X540-2T, PCI-E Gen3 x8, Intel 10GbE Mezz Card / M7076-I350, PCI-E Gen3 x8, Intel (2)GbE Mezz Card / M7062-I599-1T, PCI-E Gen3 x8, Intel 10GbE Mezz Card / M7062-I599-2T, PCI-E Gen3 x8, Intel 10GbE Mezz Card | ||||
| NOTE: | (1) OCP slot for Mezz Card | ||||
| LAN | Q'ty / Port | (2) GbE ports (1 port shared with IPMI) | |||
| Controller | Intel I210-AT | ||||
| Storage | NVMe | (2) Internal mini-SAS HD connectors (SFF-8643) | |||
| SATA | Connector | (4) SATA | |||
| Controller | Intel C612 | ||||
| Speed | 6.0 Gb/s | ||||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||||
| sSATA | Connector | (1) Mini-SAS (4-ports) | |||
| Controller | Intel C612 | ||||
| Speed | 6.0 Gb/s | ||||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||||
| Graphic | Connector type | D-Sub 15-pin | |||
| Resolution | Up to 1920x1200 | ||||
| Chipset | Aspeed AST2400 | ||||
| Input /Output | NVMe | (2) Internal mini-SAS HD connectors (SFF-8643) | |||
| USB | (4) USB 2.0 ports (2 at rear, 2 via cable) / (5) USB3.0 ports (2 at rear, 2 via cable, Type-A) | ||||
| COM | (2) ports (1 at rear, 1 via cable) | ||||
| VGA | (1) D-Sub 15-pin VGA port (at rear) | ||||
| RJ-45 | Total (2) GbE ports, (1) shared with IPMI | ||||
| Front Panel | (1) 2x12-pin SSI front panel header | ||||
| SATA | (6) SATA-III + (4) SATA ports by (1) mini-SAS connector | ||||
| Power | SSI 24-pin + 8-pin + 8-pin power connectors | ||||
| System Monitoring | Chipset | Aspeed AST2400 | |||
| Temperature | Monitors temperature for CPU & memory & system environment | ||||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||||
| Others | Watchdog timer support | ||||
| Server Management | Onboard Chipset | Onboard Aspeed AST2400 | |||
| AST2400 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||||
| AST2400 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||||
| BIOS | Brand / ROM size | AMI / 16MB | |||
| Feature | Hardware Monitor / SMBIOS 2.7/PnP/Wake on LAN / PXE boot support / ACPI 3.0/ACPI sleeping states S1,S4,S5 | ||||
| Physical Dimension | Form Factor | ATX | |||
| Board Dimension | 12"x9.6" (305x243.8mm) | ||||
| Regulation | FCC (DoC) | Class A | |||
| CE (DoC) | Class A | ||||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |||
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||||
| RoHS | RoHS 6/6 Compliant | Yes | |||
| Operating System | OS supported list | Please refer to our AVL support lists. | |||
| Package Contains | Motherboard | (1) S5620 Motherboard | |||
| Manual | (1) Quick Installation Guide | ||||
| Installation CD | (1) TYAN Device Driver CD | ||||
