ZenWiFi XT9 (W-2-PK), IEEE 802.11ax, Tri-Band 2.4 / 5GHz / 5GHz, 574 / 2402 / 4804 Mbps, 3xRJ45, 1x USB 3.0, Retail Wireless Mesh System

  • SKU: 15169801
  • Manufacturer: ASUS
  • MPN: XT9 (W-2-PK)
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
ZenWiFi XT9 (W-2-PK), IEEE 802.11ax, Tri-Band 2.4 / 5GHz / 5GHz, 574 / 2402 / 4804 Mbps, 3xRJ45, 1x USB 3.0, Retail Wireless Mesh System

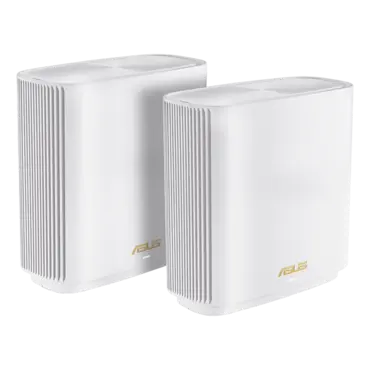

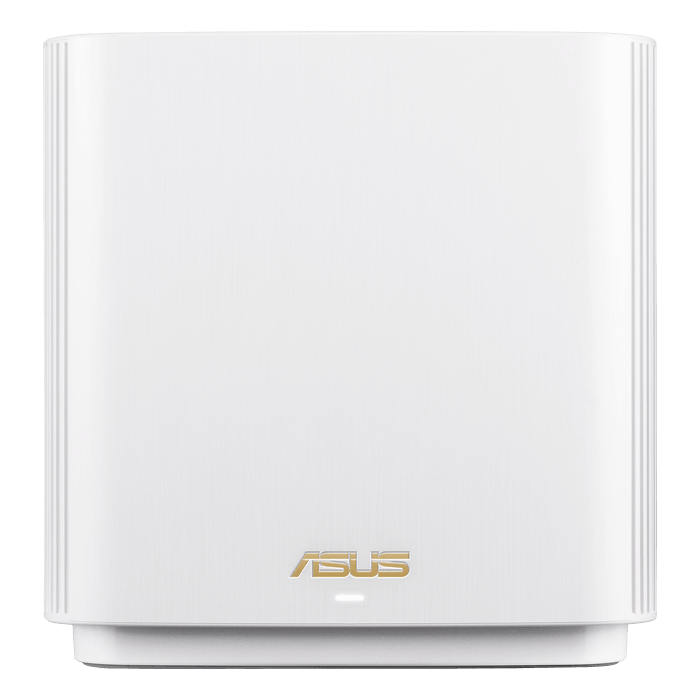

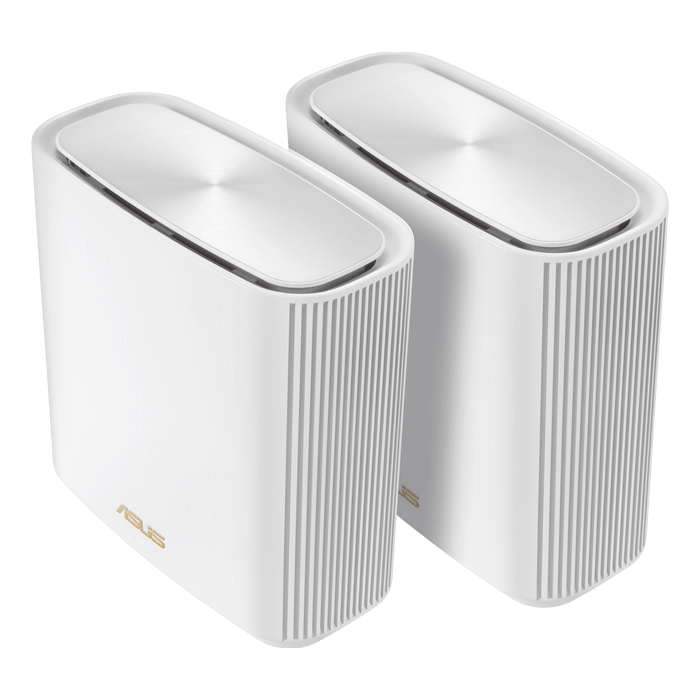

ASUS ZenWiFi XT9 (W-2-PK) (90IG0740-MA1B4V). The ASUS ZenWiFi XT9 mesh system consists of a pair of ASUS AX7800 tri-band WiFi 6 mesh routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections for your streaming videos, gaming and all other smart IoT gadgets.

  • Banish WiFi Dead Zone—Tri-band mesh WiFi system with unique antenna placement delivers strong WiFi to every corner of your home, providing total wireless speed of 7800Mbps
  • Ultrafast Wi-Fi 6 Technology— With OFDMA and MU-MIMO, ZenWiFi XT9 enables more efficient, stable, and faster transmission even when multiple devices are transmitting data at the same time
  • Hassle Free Control – 3 steps setup and easy management with ASUS Router App
  • Always Up-to-date Protection— The lifetime free network security powered by Trend Micro™ makes sure your privacy on connected devices is protected
  • AiMesh Supported– Mix and match ZenWiFi with AiMesh-compatible routers to form powerful and flexible whole-home WiFi system
Model ASUS ZenWiFi XT9
Model Name XT9 (W-2-PK) - Pack of 2 White
Network Standard IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Product Segment AX7800 ultimate AX performance : 574+2402+4804Mbps
AX technology Yes
Data Rate 802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 2402 Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps
Antenna Internal antenna x 6
Transmit/Receive 2.4GHz 2x2
5GHz-1 2x2
5GHz-2 4x4
Processor 1.7 GHz quad-core processor
Memory 256 MB Flash
512 MB RAM
Boosts speed OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency 2.4G Hz, 5 GHz-1, 5 GHz-2

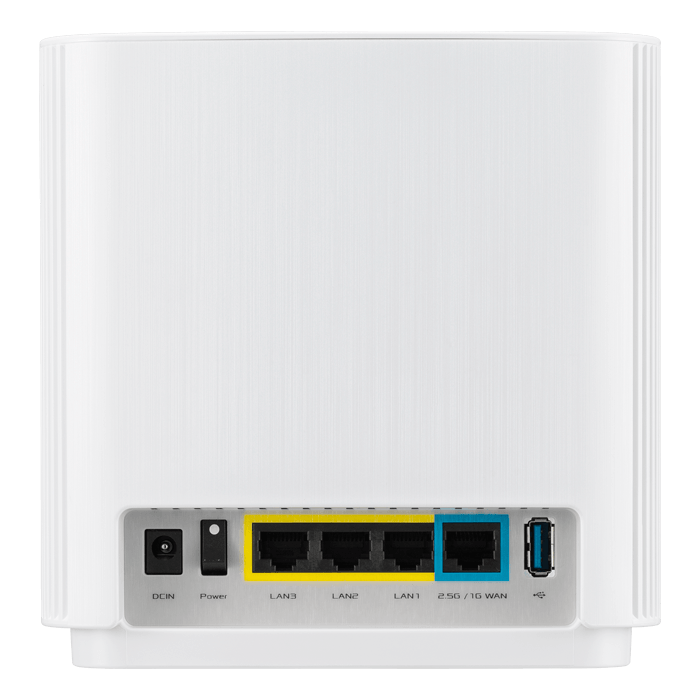

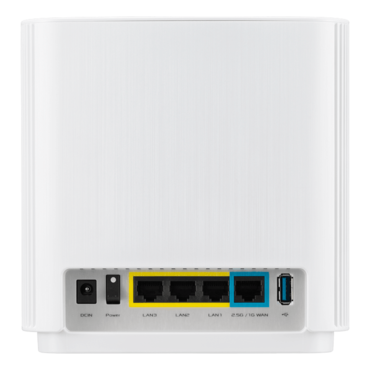

Ports RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
USB 3.2 Gen 1 x 1
Button WPS Button, Reset Button, Power Switch
LED Indicator Power x 1
Power Supply AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 3 A current
Package content ZenWiFi XT9
RJ-45 cable
Power adapter
Warranty card
Quick start guide
Product Weight (g) 740g
Remark Content and color may vary in different regions and packages.
AiMesh AiMesh
Primary AiMesh router
AiMesh node
Router APP ASUS Router APP
Alexa Support Alexa skill
AiProtection AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control Parental Control
Parental Control Customized Internet schedule
Traffic Control Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Website history
Wireless IPv6
Wi-Fi Encryption : WPA3-PSK, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
Guest Network
Maximum Guest Network rule : Max 9 rules
Guest Network Connection time limit
WiFi MAC address filter
Maximum MAC filters : Max 64 rules
Wireless scheduler
Airtime fairness
Universal beamforming
Explicit beamforming
Let's Encrypt
Safe browsing
LAN IGMP snooping
LAN Link Aggregation
VPN Instant Guard
VPN Client L2TP
VPN Client WireGuard
VPN Server IPSec
VPN Fusion
VPN Server WireGuard
USB application File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4
Safely Remove disk
Download master
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
Administration Operating mode : Wireless router mode
Access point mode
Maximum Firewall keyword filter : Max 64 rules
Maximum Firewall network service filter : Max 32 rules
Maximum Firewall URL filter : Max 64 rules
Wake on LAN (WOL)
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Security Scan
Auto Firmware Update
