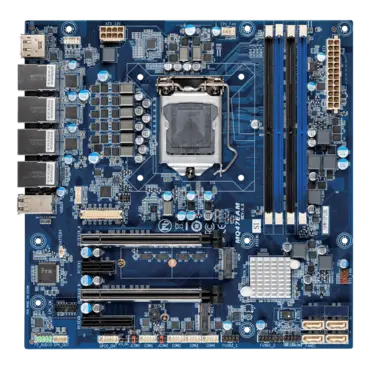

uATX-Q47EA, Intel® Q470E Chipset, LGA 1200, 4x COM, 4x 1 GbLAN, microATX Motherboard

Quantity:
  • SKU: 15064446
  • Manufacturer: GIGABYTE
  • MPN: UATX-Q47EA
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$221.95
Quantity:
  • Micro ATX form factor
  • Support 11th/10th Generation Intel® Core™ Processors
  • Intel® Q470E Express Chipset
  • Dual Channel Non-ECC Unbuffered DDR4, 4 x DIMMs
  • 4 x GbE LAN Ports
  • 4 x SATA 6Gb/s Ports
  • Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • HDMI 1.4, Display port, VGA, LVDS for multiple displays
  • Realtek® Audio Codec
  • Up to 4 x PCIe Gen3 expansion slots
  • 16 x USB Ports
  • 1 x COM header (RS-232/422/485 & RI/5V/12V)
  • 1 x COM header (RS-232 & RI/5V/12V)
  • 2 x COM headers (RS-232)
Form Factor

Micro ATX

244W x 244D(mm)

CPU

Support for 11th/10th Generation

Intel® Core™ i9/i7/i5/i3, Pentium® & Celeron® processors in the LGA1200 package

TDP under 95W

Socket

1 x LGA 1200

Chipset

Intel® Q470E Express Chipset

Memory

4 x DDR4 DIMM sockets, Max. Capacity 128 GB

Support Dual channel DDR4 2933/2666 MHz memory modules

Ethernet

4 x GbE LAN Ports (1 x Intel® I219LM and 3 x Intel® I211AT)

Video

Integrated Graphics Processor - depends on CPU:

1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz

1 x Display port, supporting a maximum resolution of 4096x2160 @60Hz

1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz

1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz


(3 independent display outputs)

Audio

Realtek® Audio Codec

Storage

4 x SATA 6Gb/s Ports (RAID 0/1/5/10)

Expansion Slots

2 x PCIe Gen3 x8 (or only 1 x PCIe Gen3 x16 on PCIe x16_A slot as optional)

1 x PCIe x4 (Gen3 x4)

1 x PCIe x1 (Gen3 x1)

1 x 2230 M.2 E-Key (PCIe x1 + USB 2.0)

1 x 2280/2242 M.2 M-Key (PCIe x4, SATA 6Gb/s)

Internal I/O 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x VGA header
1 x Backlight Control header
1 x AT/ATX mode select jumper
4 x USB 2.0 headers
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x COM header (RS-232 & RI/5V/12V)
2 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBUS header
1 x Buzzer
1 x Clear CMOS jumper

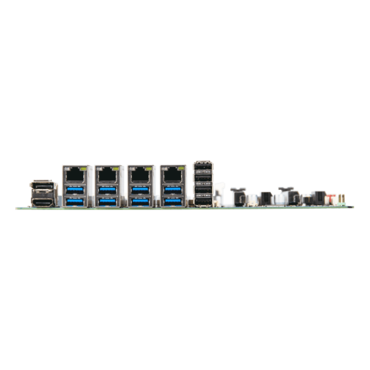

Rear I/O

1 x HDMI

1 x Display Port

4 x RJ45 LAN Ports

8 x USB 3.2 Gen 1

4 x USB 2.0

TPM

1 x TPM header

OS Compatibility

Windows 10 (x64)

Operating Properties

Operating temperature: 0°C to 60°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Packing Content Single Box size: 350 x 330 x 65 (mm)
Single Box weight: Approx. 0.65kg

Including:
IO Shield x 1 (P/N: 12AIO-MQ47EA-00R)
SATA Cable x 2 (P/N: 12CF1-2SAT1B-01R)
Order Information

9MQ47EAMMR-SI (Box packing)

Optional Kit

TPM 2.0 module: 9CTM000NR-00
